General Measurements and Calculations
7-64 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
M-Mode Measurements
Basic measurements that can be taken in the M-Mode portion of
the display are:
• Tissue Depth (Distance)
• Time Interval
• Time Interval and Slope
NOTE: The following instructions assume that you do the following:
1. In the B-Mode part of the display, scan the anatomy you
want to measure.
2. Go to the M-Mode part of the display.
3. Press Freeze.
Tissue depth
Tissue depth measurement in M-Mode functions the same as
distance measurement in B-Mode. It measures the vertical
distance between calipers.
Measur

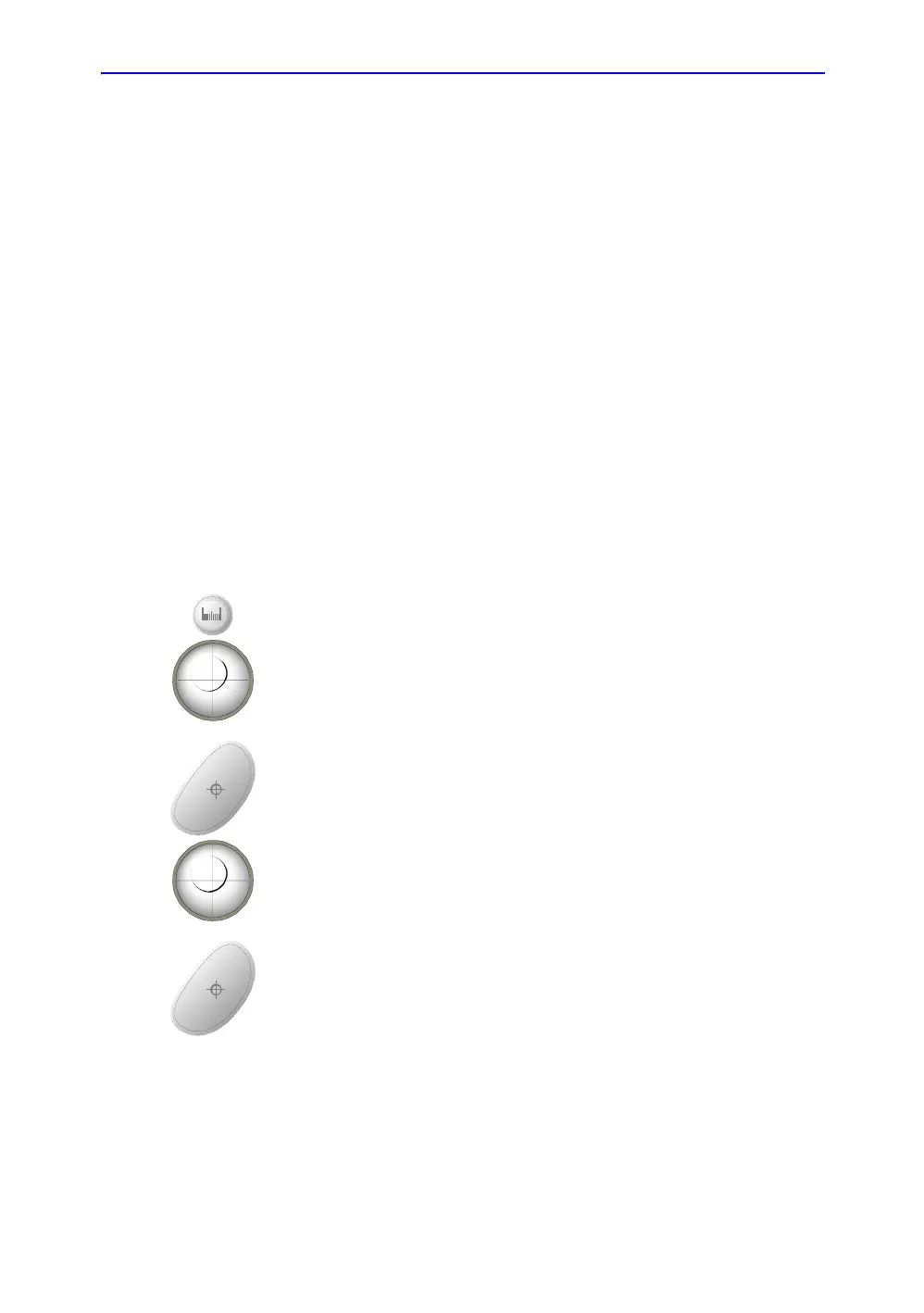

Press Measure once; an active caliper with a vertical and horizontal dotted line
displays.
To position the active caliper at the most anterior point you want to measure,
move the Trackball.
Set
To fix the start point, press Set.
The system fixes the first caliper and displays a second active caliper.
To position the second caliper at the most posterior point you want to measure,
move the Trackball.
Set
To complete the measurement, press Set.
The system displays the vertical distance between the two points in the Results
Window.
