Stress Echo
LOGIQ 7 Basic User Manual 10-87
Direction 2392206-100 Rev. 1
Getting started with a stress study
1. After selecting the appropriate application and probe, press
the Protocol tab on the Touch Panel. The protocol screen
displays the layout of the default stress protocol for the
current probe. This layout is also known as a template.

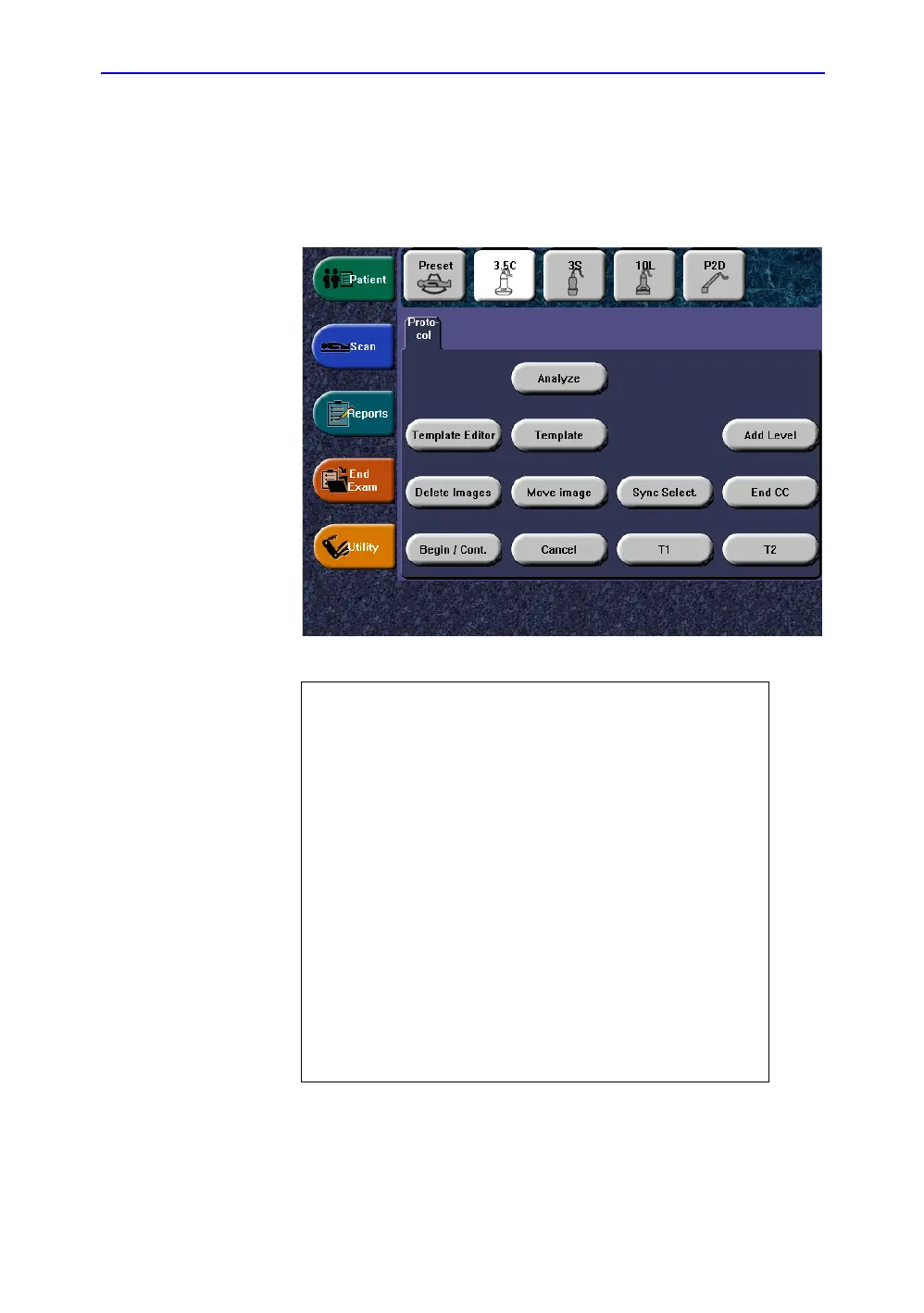

Figure 10-5. Protocol Tab
Analyze Display the Analysis screen
Template Editor Display the template editor screen
Add Level Add Level to the template
Delete Images Delete the selected image
Move Images Move the selected image to the another cell
Sync. Select Synchronize the selected images.
End CC End Continuous Capture
Begin/Cont. Begin or continue the acquisition
Template Display the template list
TI Display/Hide the timer T1
T2 Display/Hide the timer T2
Cancel Cancel Stress Echo
To Next Page
