General Measurements and Calculations
7-54 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Mode Measurements
B-Mode Measurements
Two basic measurements can be made in B-Mode.
• Distance
• Circumference and Area (Ellipse or Trace Method)
NOTE: The following instructions assume that you first scan the
patient and then press Freeze.
Distance measurement

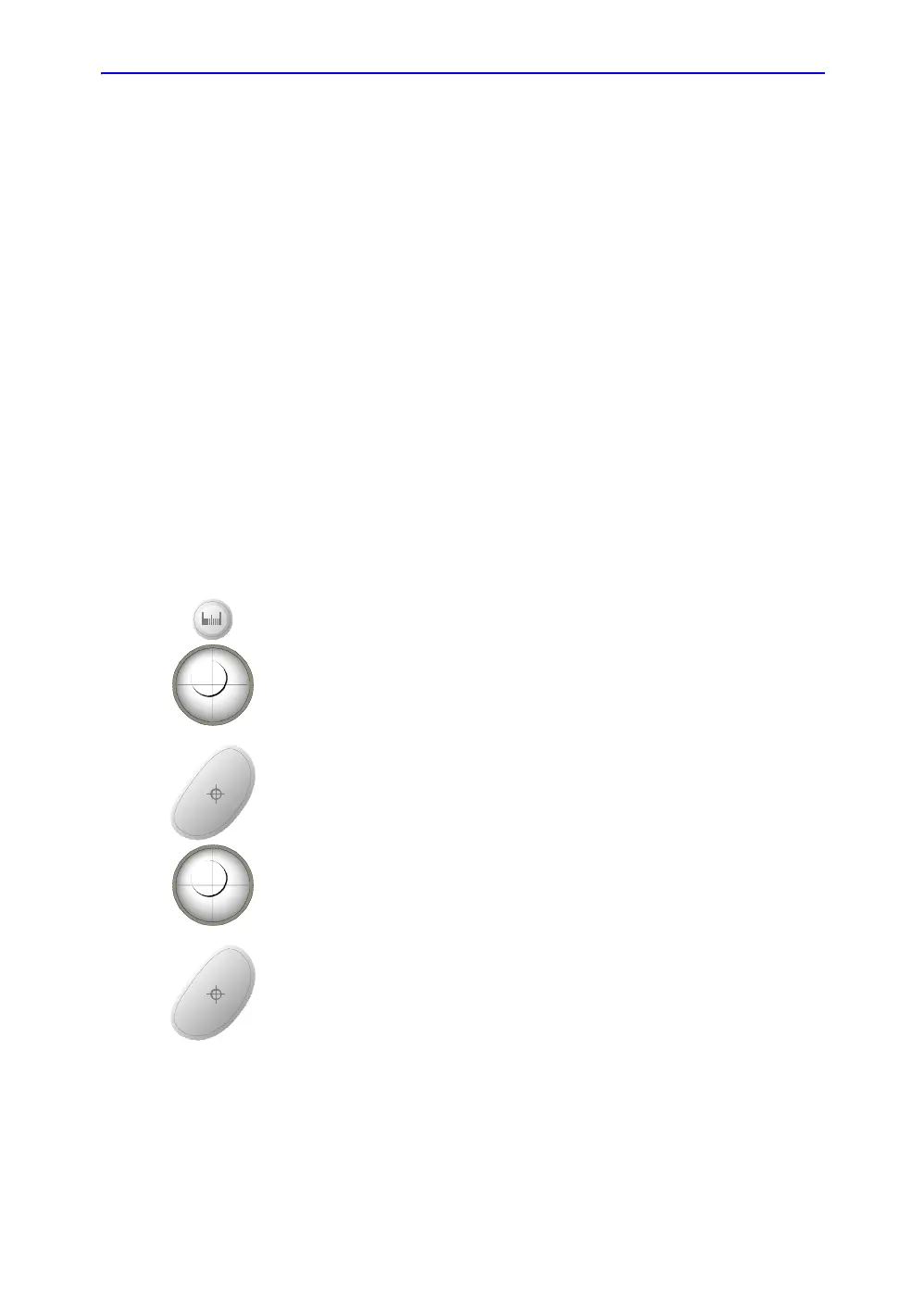

To make a distance measurement:
Measur
• Press Measure once; an active caliper displays
• To position the active caliper at the start point, move the Trackball.
Set
• To fix the start point, press Set.
The system fixes the first caliper and displays a second
active caliper.
• To position the second active caliper at the end point, move the Trackball.
A dotted line connects the measurement points, if preset
accordingly.
Set
• To complete the measurement, press Set.
The system displays the distance value in the Results
Window.
