Probe Overview
LOGIQ 7 Online Help 17-3
Direction 2392536-100 Rev. 1
Probe orientation
Each probe is provided with an orientation marking (refer to
Figure 17-1). This mark is used to identify the end of the probe
corresponding to the side of the image having the orientation
mark on the display.

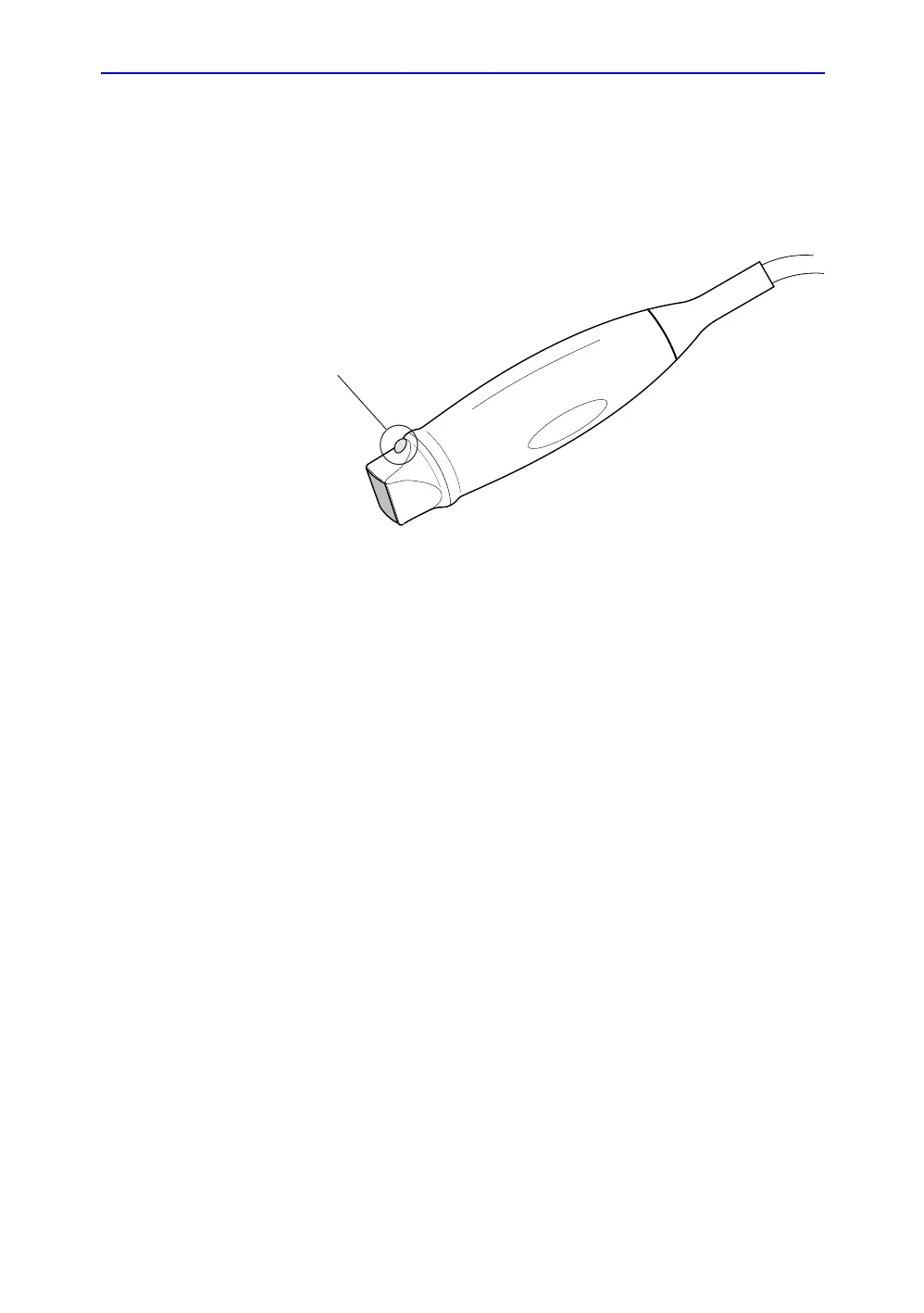

Figure 17-1. Orientation Marking on Probe
1. Orientation Mark
Labeling
Each probe is labeled with the following information:
• Seller's name and manufacturer
• Operating frequency
• GE part number
• Probe serial number
• Month and year of manufacture
• Probe designation-provided on the probe grip and the top of
the connector housing, so it is easily read when mounted on
the system and is also automatically displayed on the
screen when the probe is selected.
