GE LOGIQ 7 Basic User Manual

Vascular Worksheet
LOGIQ 7 Basic User Manual 11-31
Direction 2392206-100 Rev. 1
Intravessel ratio
To calculate Intravessel ratio, you need a measurement of
accessing pressure and stenotic velocities.
1. Select Intravessel to display the pop-up window in the
header section of the worksheet.

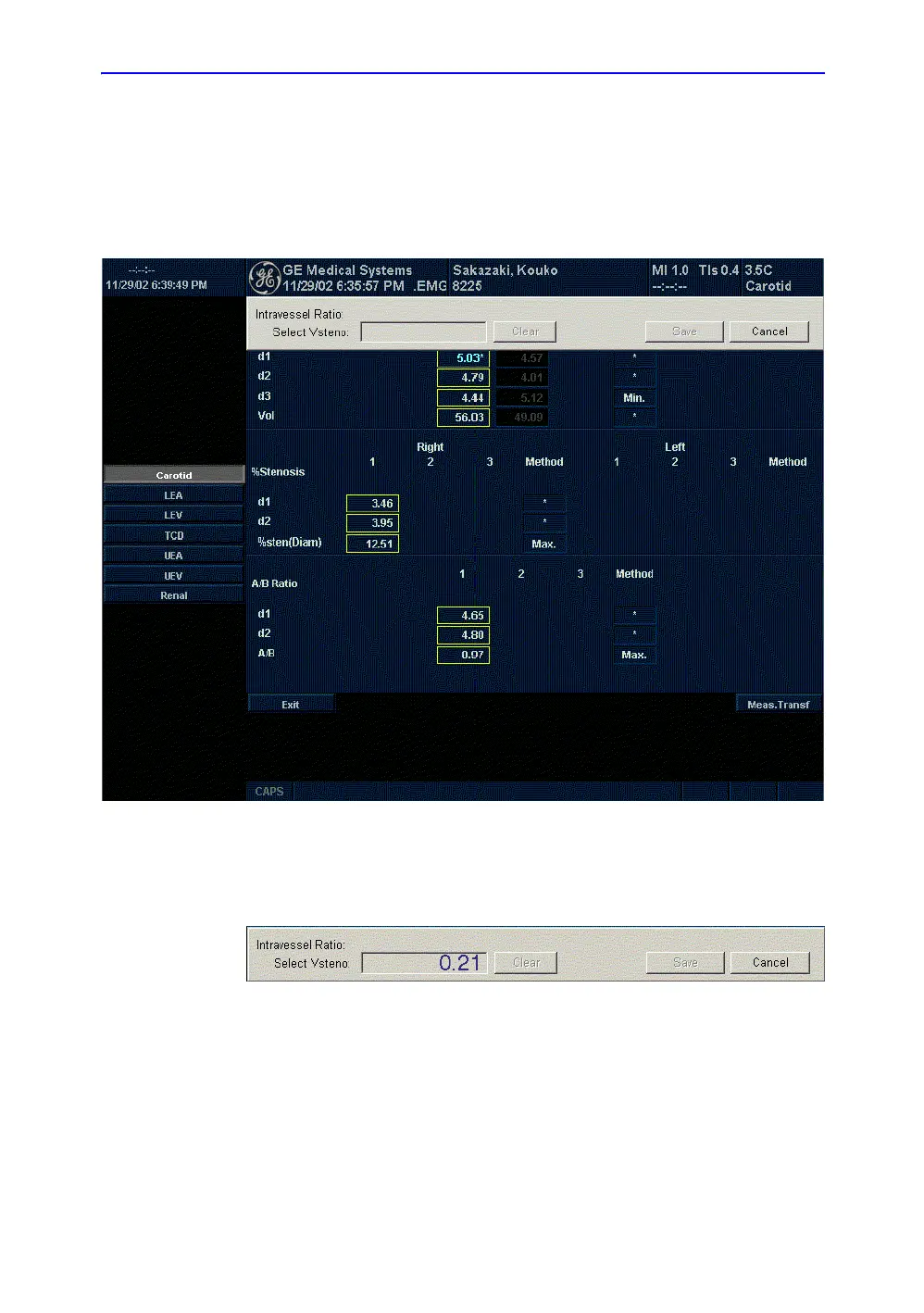

Figure 11-18. Intravessel Pop-up Window
2. Select the first velocity.
The value is displayed in the window.
Figure 11-19. Intravessel ratio one
