Optimizing M-Mode
LOGIQ 7 Online Help 5-63
Direction 2392536-100 Rev. 1
M-Mode Display

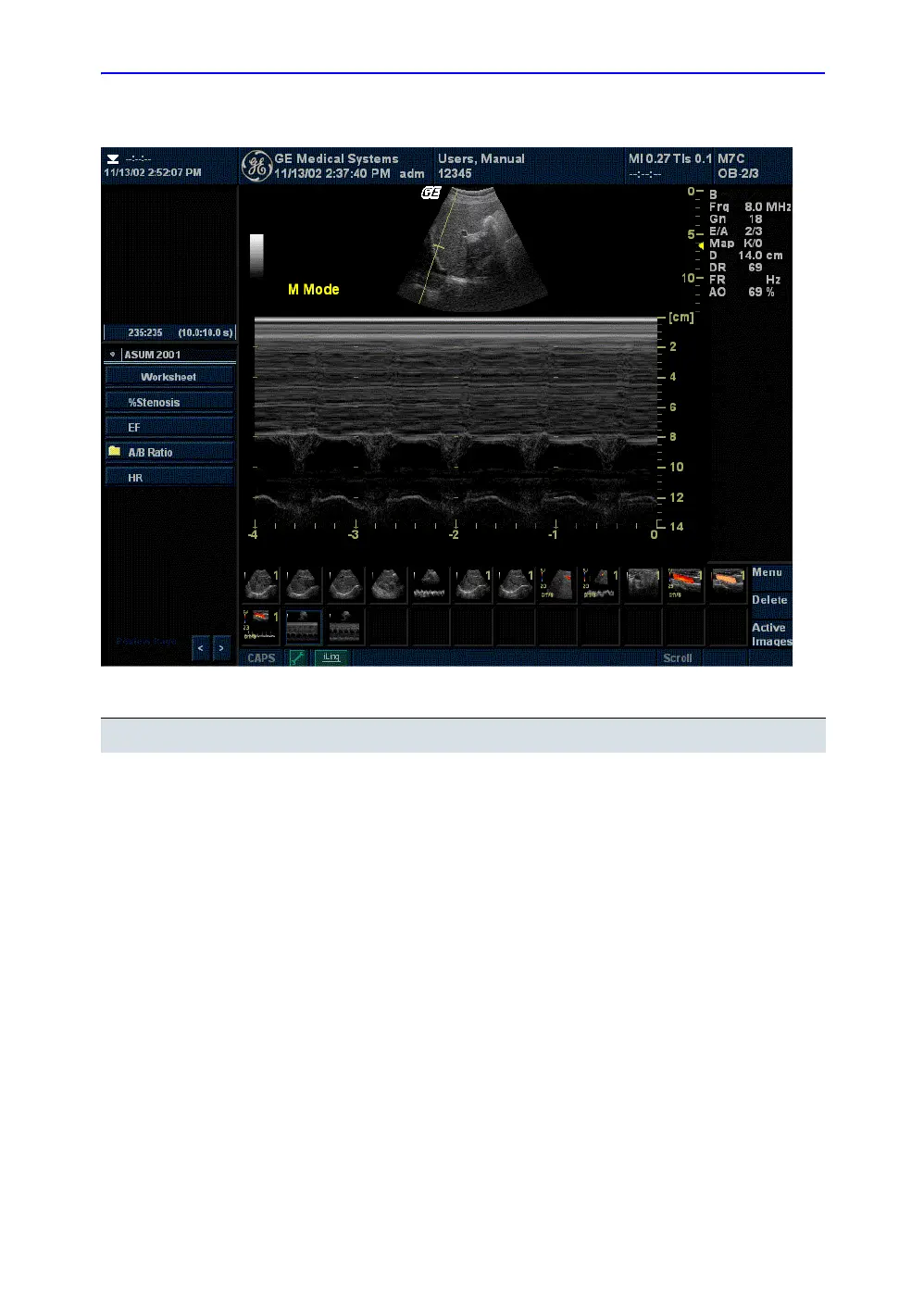

Figure 5-31. M-Mode Display
M-Mode Display Description, Format, Values
M-Mode Gain
Depth Scale Indicator
Displays Overall M-Mode Gain as ##dB.
Image depth, in cm.
Time Scale Eight speeds: 0-7. Major marker = 1 second.
M-Mode Cursor Displays where the M-Mode Cursor is positioned.
