GE LOGIQ 7 Basic User Manual

Cardiology
10-76 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Cardiac Worksheet
After you make cardiac measurements, you can review all the
data on the cardiac worksheet. To view the worksheet, select the
Worksheet Display key on the Touch Panel. See Figure 10-1.
The cardiac worksheet has a heading for each mode, and for
each folder. In Figure 10-1, the mode heading is 2D
Measurements, followed by Cube/Teichholz. Each
measurement from that folder is listed next. It can list up to six
values for each measurement. The next folder is then listed, in
this example, RV/LV.

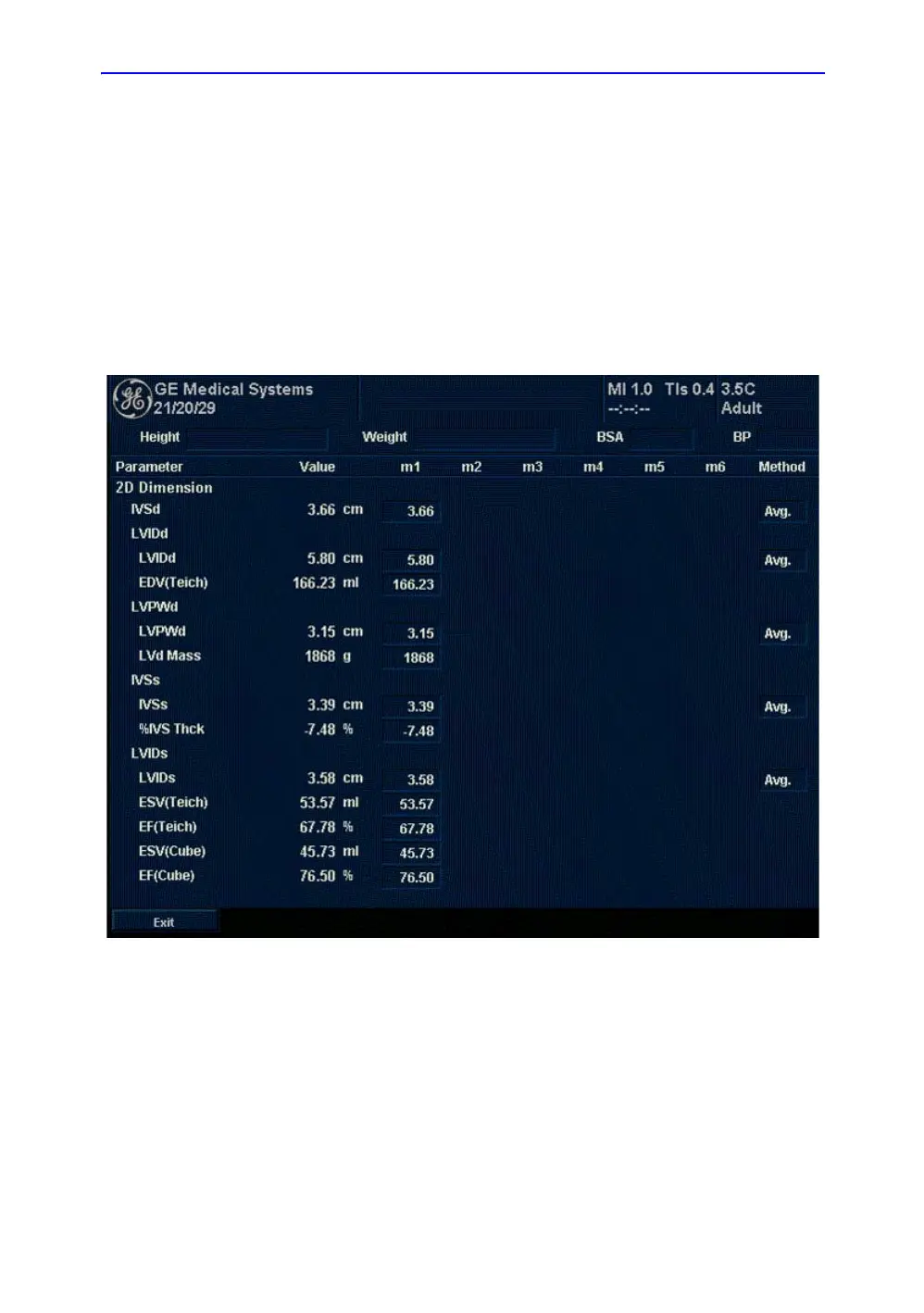

Figure 10-1. Cardiac Worksheet: Page 1

GE LOGIQ 7 Specifications

General

Brand	GE
Model	LOGIQ 7
Category	Medical Equipment
Language	English
