Vascular Worksheet
LOGIQ 7 Basic User Manual 11-25
Direction 2392206-100 Rev. 1
Worksheet Display Touch Panel

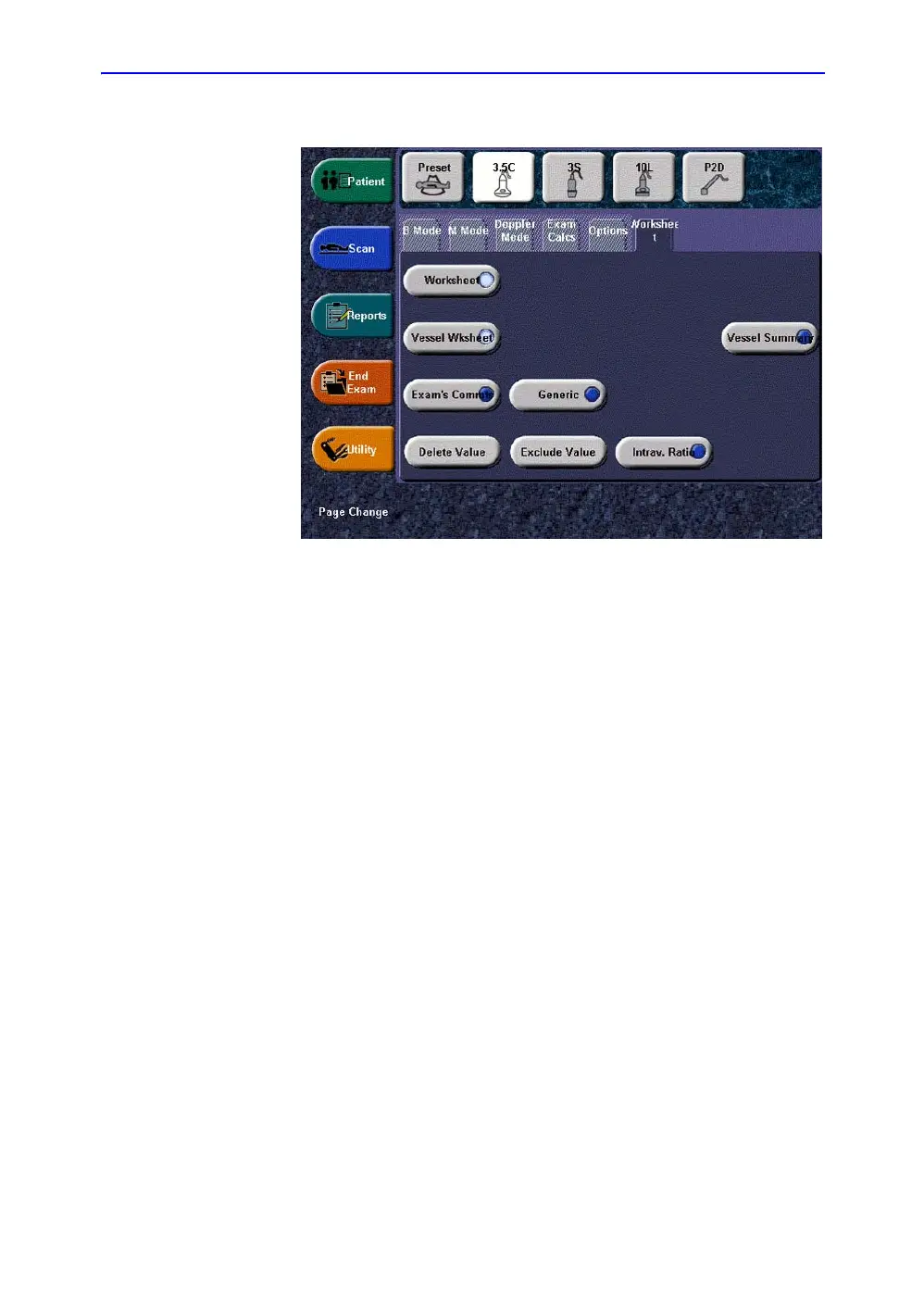

Figure 11-13. Worksheet Display Touch Panel
1. Worksheet Display: To exit the worksheet display and
return to scanning.
2. Vessel Worksheet: Select this key to display the Vessel
Worksheet when the Vessel Summary is displayed.
3. Vessel Summary: Select this key to display the Vessel
Summary when the Vessel Worksheet is displayed.
4. Examiner’s Comment: Select this key to display the
Examiner’s comment window. See ‘Examiner’s Comments’
for more information.
5. Generic Worksheet: Select this key to display the Generic
Worksheet. Generic study measurements/calculations, such
as volume and velocity, are displayed on this worksheet.
6. Delete Value: Use to delete a value (each measurement
value). See ‘To edit a worksheet’ for more information.
7. Exclude Value: Use to exclude a value from the result line.
See ‘To edit a worksheet’ for more information.
8. Intravessel Ratio: Select this key to display the Intravessel
Ratio Calculation window. See ‘Intravessel ratio’ for more
information.
9. Page Change (knob): If a worksheet has more data, to view
the next page, adjust the Page Change knob.
To Next Page
