GE LOGIQ 7 Basic User Manual

ECG Option
LOGIQ 7 Basic User Manual 10-123
Direction 2392206-100 Rev. 1
Physiological Trace Monitor Display
The scanned image is synchronized with the ECG and PCG
trace. In Doppler or M-Mode, the traces are synchronized with
that particular mode’s sweep.
The user can control the gain, position and sweep speed of the
traces using the Touch Panel controls.

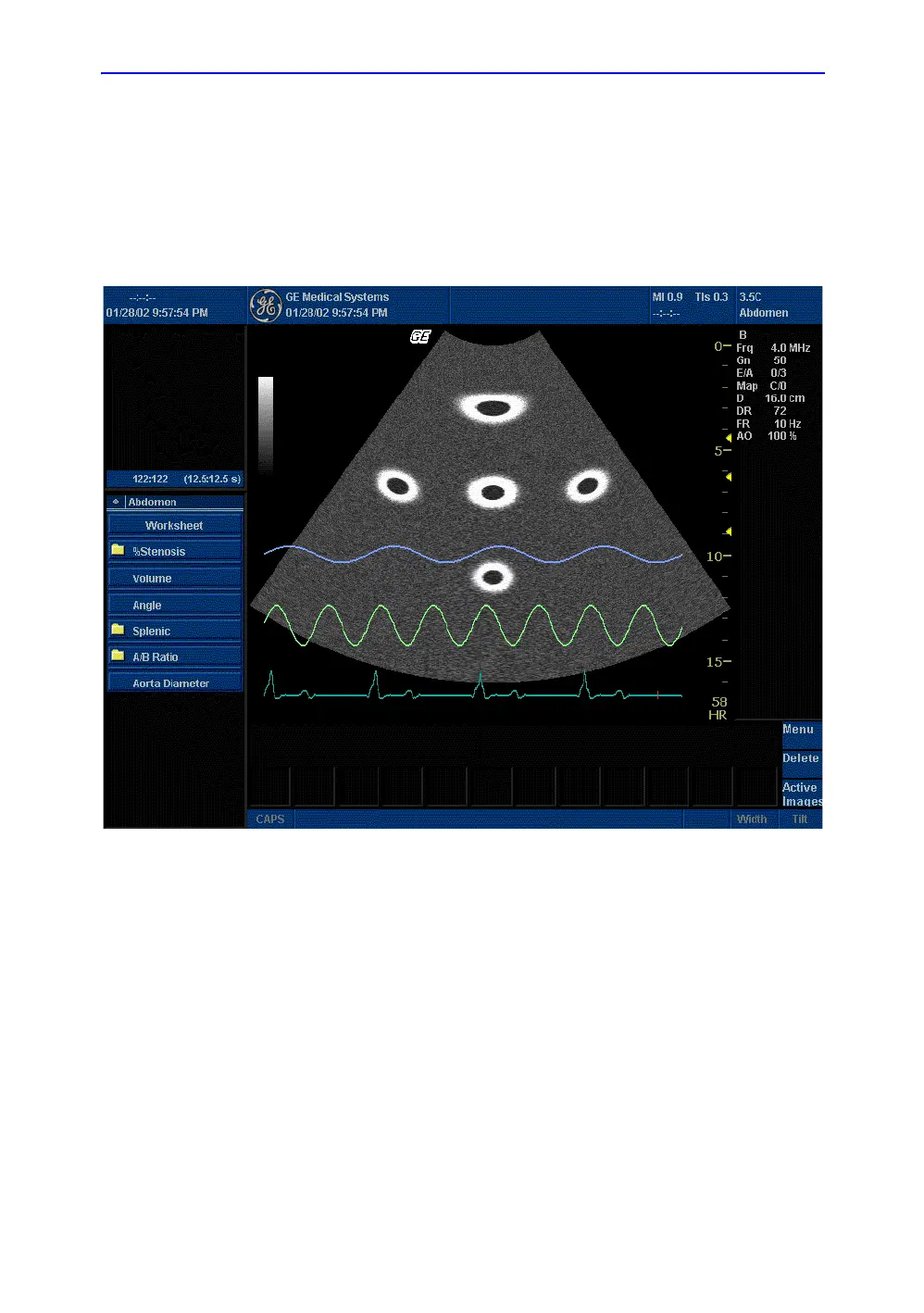

Figure 10-28. Physiological Trace Monitor Display
1. PCG
2. AUX
3. ECG
4. Auto Heart Rate Display
