General Measurements and Calculations
7-16 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Starting Study and Measurement SetUp
You make changes to studies and measurements in the
Measurement & Analysis screen. To open the screen:
1. On the Touch Panel, select Utility.
2. On the Touch Panel, select Measure.
3. On the monitor display, select the M & A tab.
The system displays the Measurement & Analysis screen
on the monitor display.

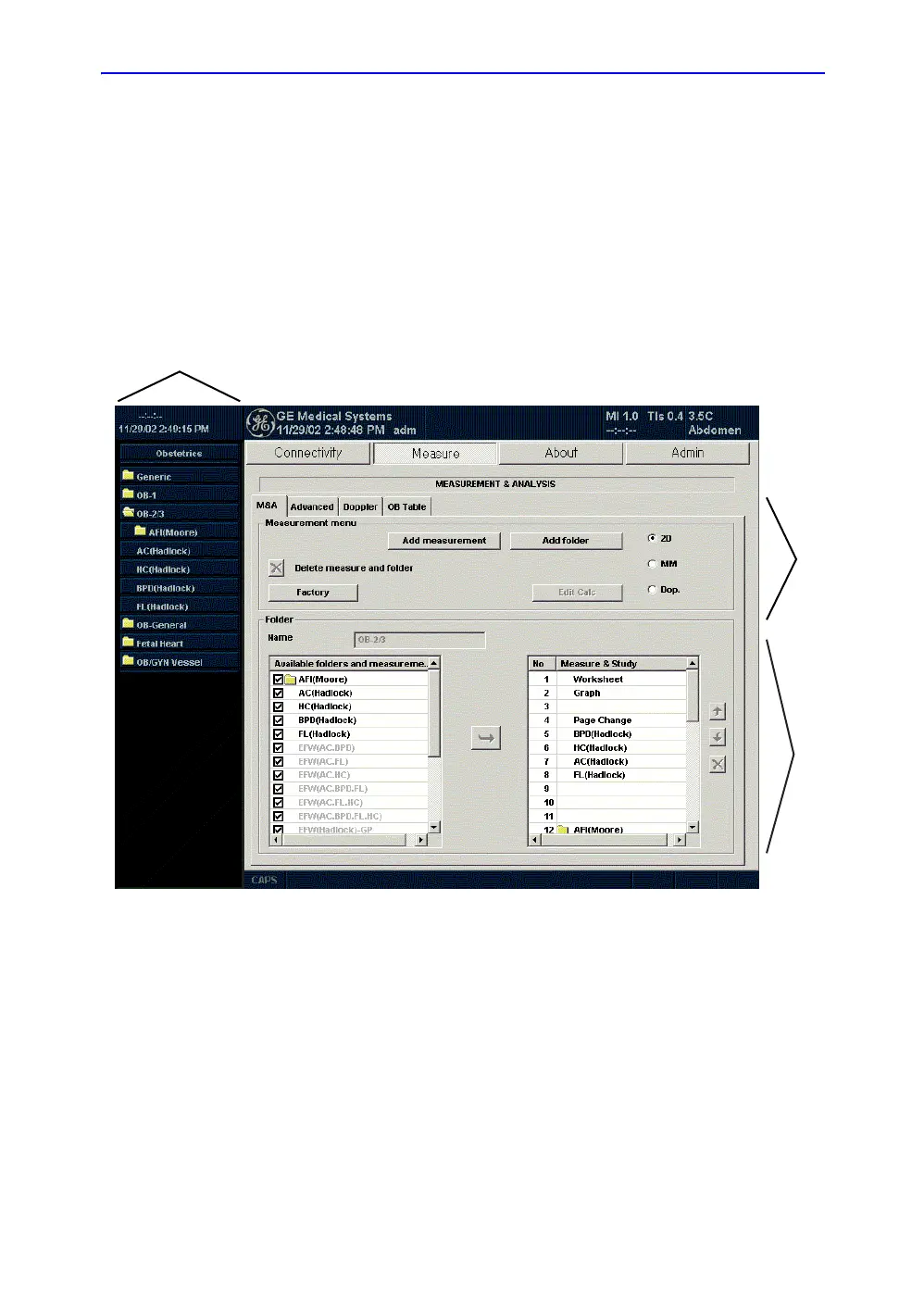

Figure 7-4. Measurement & Analysis screen
NOTE: In the Measure menu, the navigational tab across the top may
differ from system to system but the functionality is the same.
1. Selection menu: select exam
category, study, or measurement.
3. Folder or measurement: define
studies and measurements. This
section changes between Folder and
Measurement, depending on what
you select in the Selection menu.
2. Measurement menu: add and delete
studies (folders) and measurements;
select mode.
1
2
3
