Preparing the System for Use
3-48 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Touch Panel
The Touch Panel contains exam function and mode/function
specific controls.
Exam Function Controls

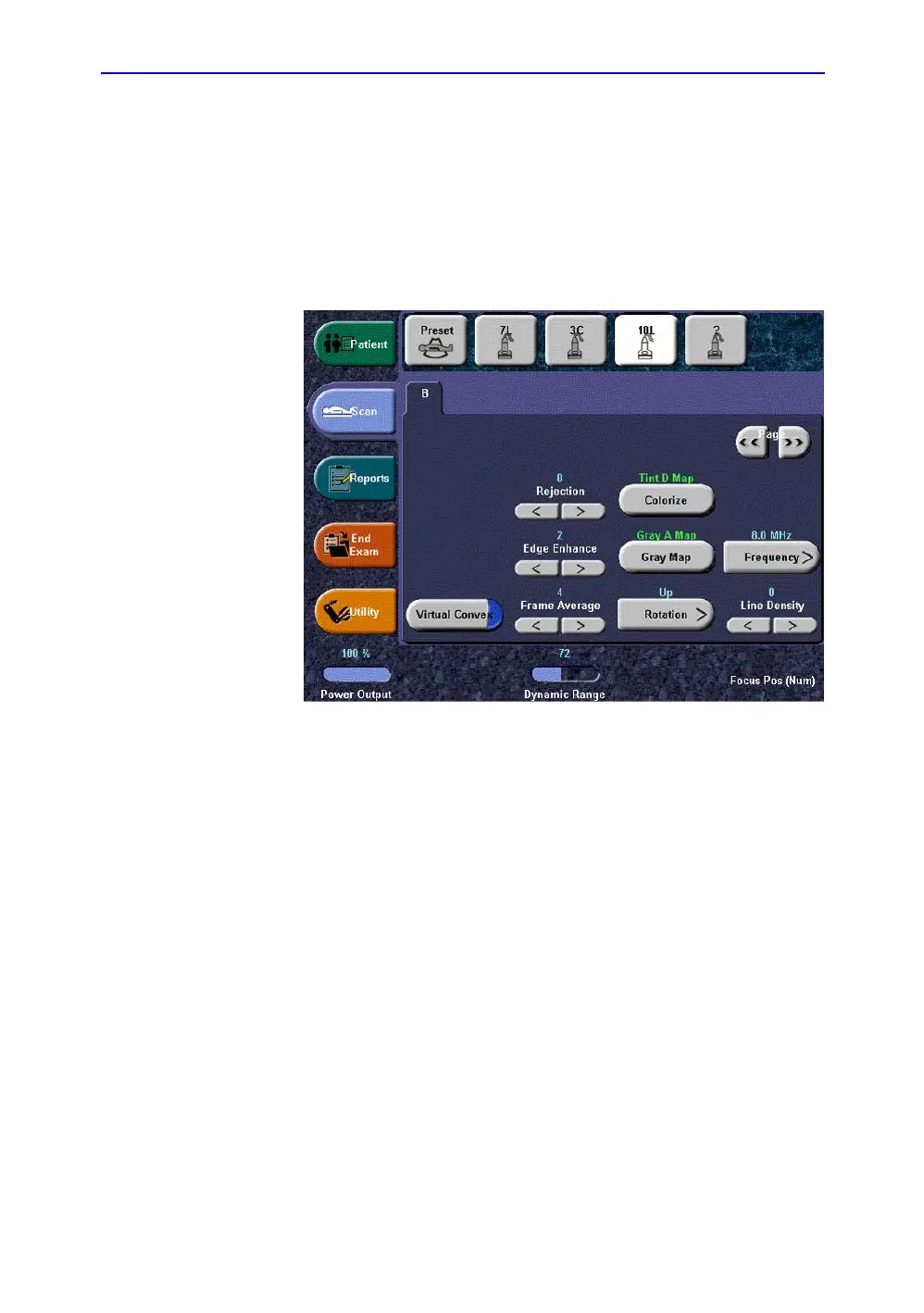

Figure 3-24. Exam Function Controls
NOTE: Different menus are displayed depending on which Touch Panel
is selected.
At the bottom of the Touch Panel, there are five combination
rotary dials/push buttons. The functionality of these rotaries
changes, depending upon the currently displayed menu. Press
the button to switch between controls (as with Focus Position/
Number), or rotate the dial to adjust the value.
1
2
3
4
5
6
7
1. Patient: Enters Patient screen
2. Scan: Enters scanning mode screen
3. Reports: Activates default report and Touch Panel of report choices.
4. End Exam: Activates Image Management and Touch Panel with end of exam
options.
5. Utility: Activates system configuration menus.
6. Preset: Selects the application to use.
7. Probe Indicator: Indicates and selects the probes.
