Preparing for an Exam
4-22 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Selecting an Application Preset and a probe
Selecting an Application Preset
The exam category preset that best describes the desired exam
to be performed is chosen after the exam category is selected.
The factory default preset selections are displayed on the Touch
Panel.
A typical example for the Abdomen exam category is shown
below.

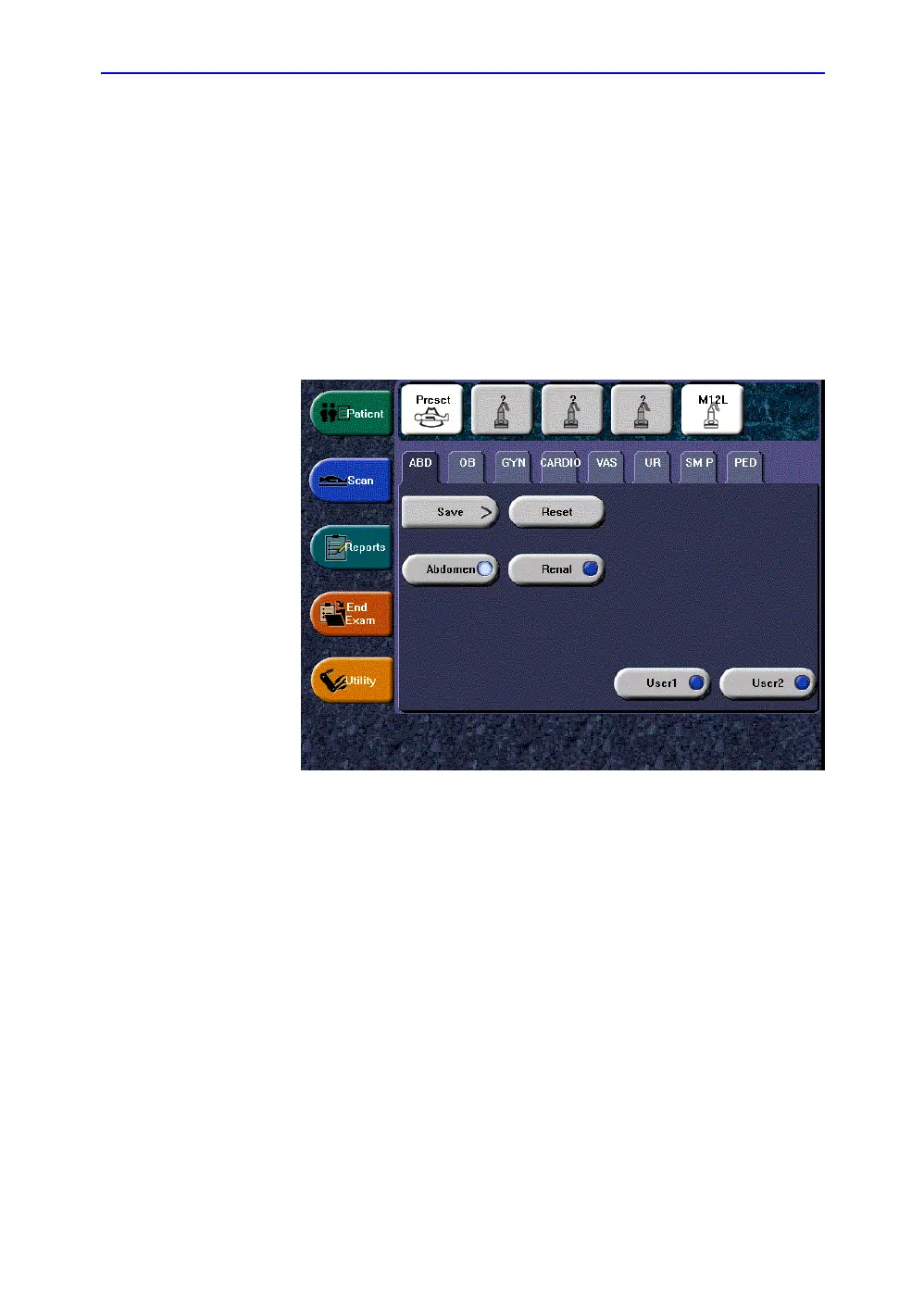

Figure 4-18. Abdomen Preset Selection Touch Panel
Use these parameters as a starting point for the exam.
