Cardiology
10-124 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
ECG Touch Panel
The ECG Touch Panel Menu provides for control of the
physiological input signals.
Without the ECG option, the ECG Touch Panel menu is not
displayed.

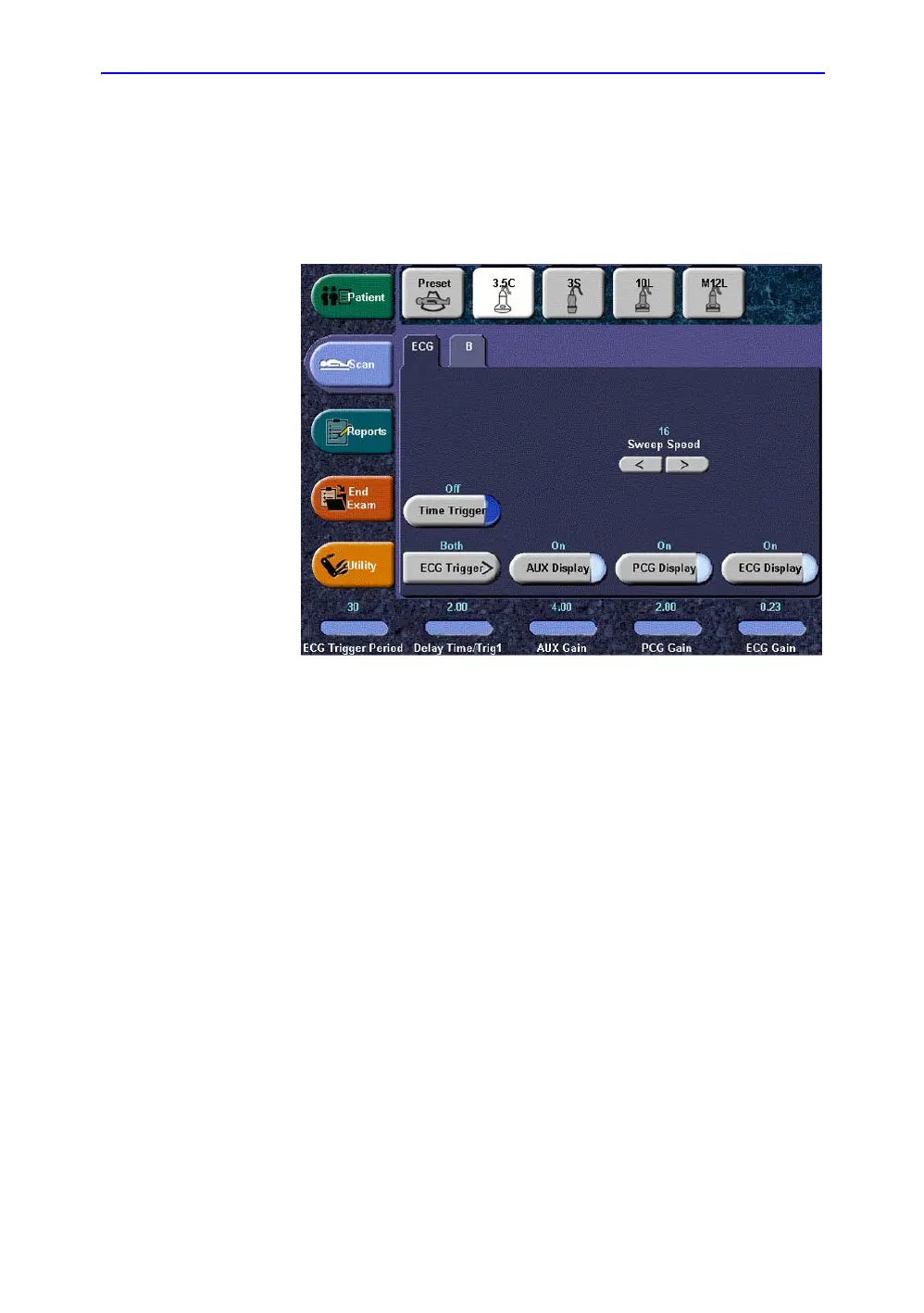

Figure 10-29. ECG Touch Panel Menu
Sweep Speed
Description Change the speed of the trace. The sweep speed of the physio
signal on the B-Mode image can be set independent of the
timeline (Doppler and M-Mode) sweep speed.
Value 1 - 16.
