Continuous Capture mode
Continuous Capture mode enables the user to perform
acquisition continuously for all views at any level depending on
the selected template configuration. Continuous Capture
consists of temporary saving images acquired in a storage
buffer. To enable best possible use of the limited storage buffer
capacity, a Pause/Capture mode is provided, as opposed to the
normal Freeze/Scan mode. The Pause mode enables scanning
and live display on the screen, without any capture, thereby
leaving the buffer available.
To run Continuous Capture, the user has to select a template
where this feature is activated.
The buffer bar
When entering a level with Continuous Capture enabled, a
buffer bar displays in the window.
The Buffer bar displays the following information:
• The scanning state
• Pause (live scanning without storing)
• Capture (live scanning with storing to buffer)
• The percentage of the buffer that is filled
• The buffer filling progression showed by a filling gage
• The capturing sessions, reflected by the red lines along the
buffer bar

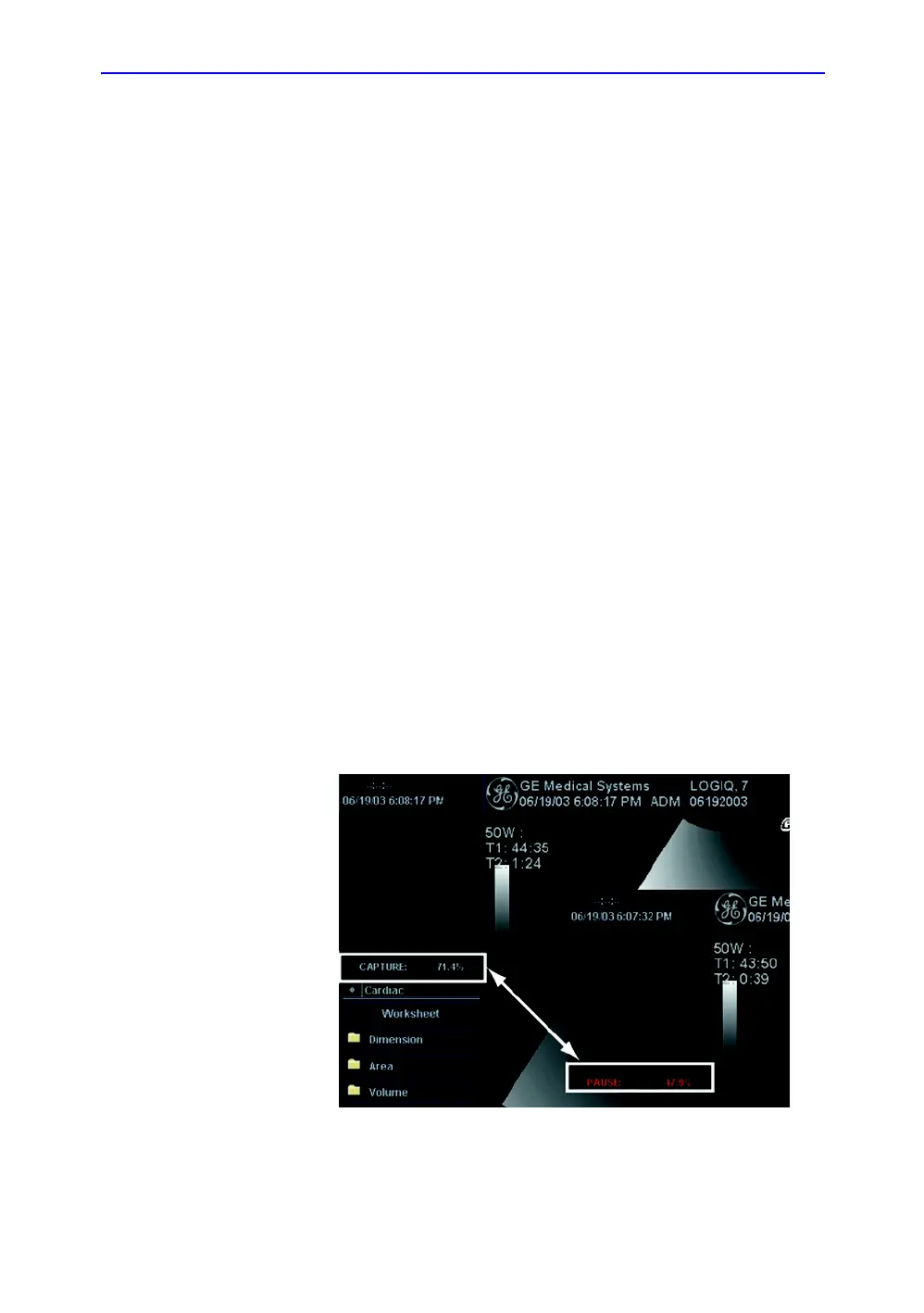

Figure 10-12. Buffer Bar
