Stress Echo
LOGIQ 7 Basic User Manual 10-95
Direction 2392206-100 Rev. 1
Timers
Two timers can be displayed in the Stress mode acquisition
screen, beside the template matrix.

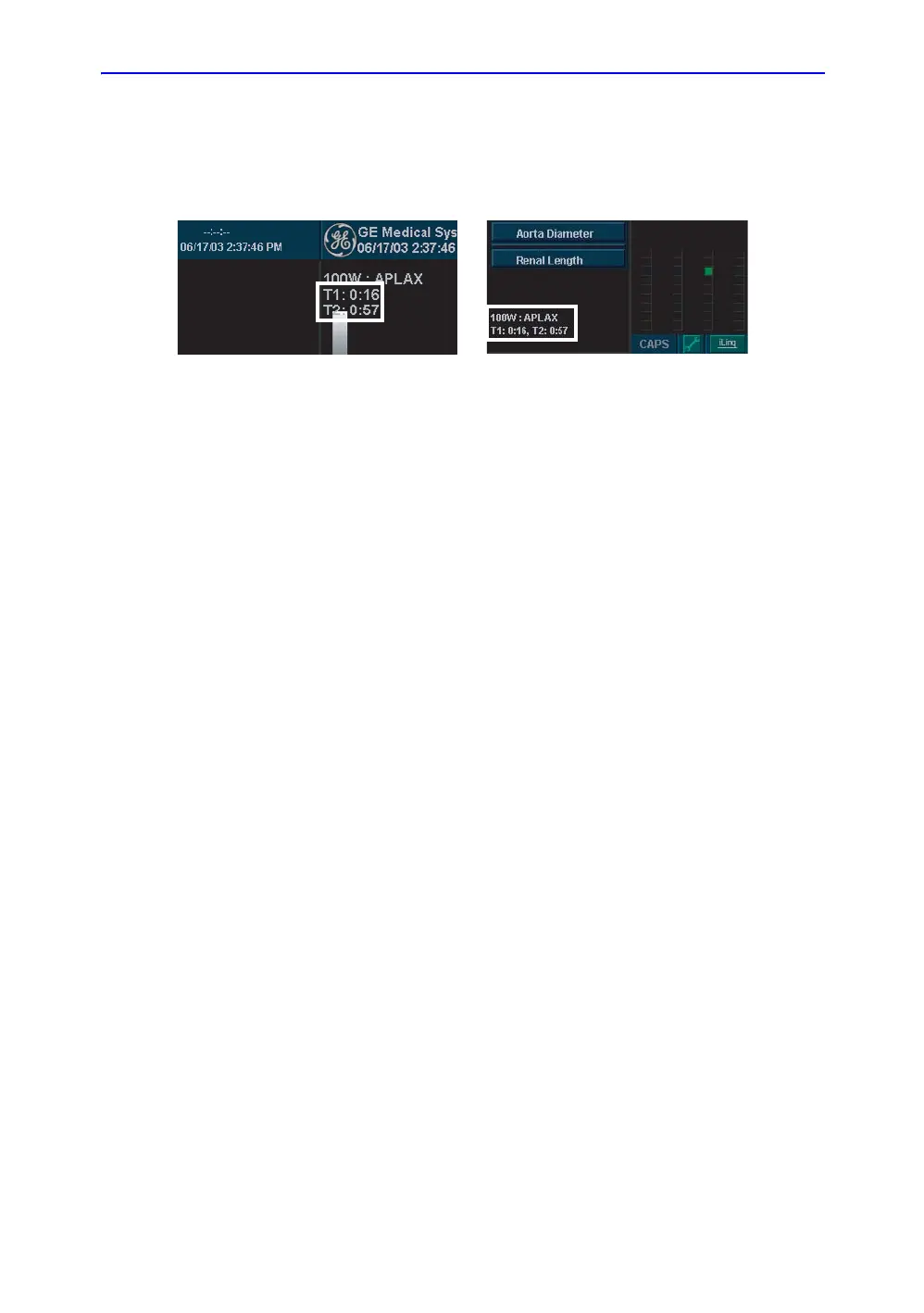

Figure 10-11. Timers
• T1 displays the elapsed time from the start of stress
examination.
• T2 starts when entering live scanning on the second stress
level.
Both T1 and T2 timers can be manually stopped and restarted
during the acquisition.
The display of T1 and T2 is user-configurable.
NOTE: If you activate the Timer in Stress Echo, the T1 timer is
displayed in the lower left-hand corner of the image area after
exiting Stress Echo.
