Vascular Measurements
LOGIQ 7 Basic User Manual 11-7
Direction 2392206-100 Rev. 1
Doppler Mode Measurements

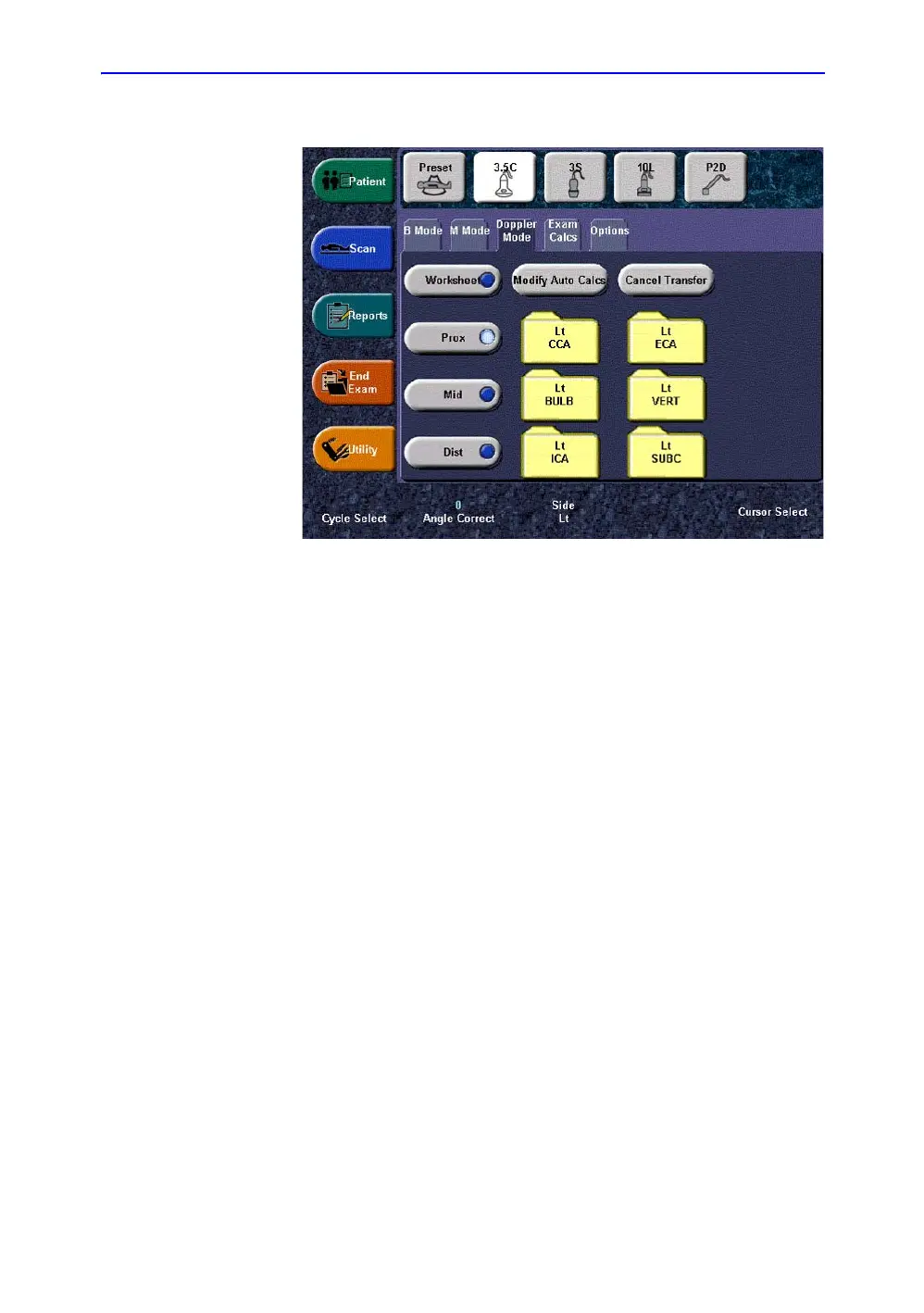

Figure 11-4. D-Mode Touch Panel Example
Control Assignment
Cancel Transfer After the Auto Vascular calculation results are assigned to a
particular vessel, the user can cancel the assignment and
assigned parameters are removed from Worksheet and Report
page.
When Cancel Transfer occurs, a message appears on the
screen to indicate the value was erased from Worksheet and
Report page.
Vessel location If the vessel has a location, you can select one of the following:
• Proximal (Prox)
• Middle (Mid)
• Distal (Dist)
NOTE: If you do not wish to assign a vessel location, press the lit
location, then no location is assigned. Choose the folder you
want the value assigned to.
Side Rt/Lt The system has measurements for the patient's right and left
side. To select right or left, adjust the Touch Panel knob.
