Cardiology Measurements
LOGIQ 7 Basic User Manual 10-81
Direction 2392206-100 Rev. 1
Generic Study
Most of the generic measurements are common to all exam
categories. Details about B-Mode and M-Mode Measurements,
See ‘Generic Measurements’ for more information.
The Cardiology B-Mode Generic exam category includes the
following measurements:
• Caliper
• Point
• Area (Trace)
• Volume
• Volume (d)
• Volume (s)
• Dist (Distance) Ratio
• Area Ratio
• Ellipse
• Open Trace
• R-R
• VF Diam (Diameter)

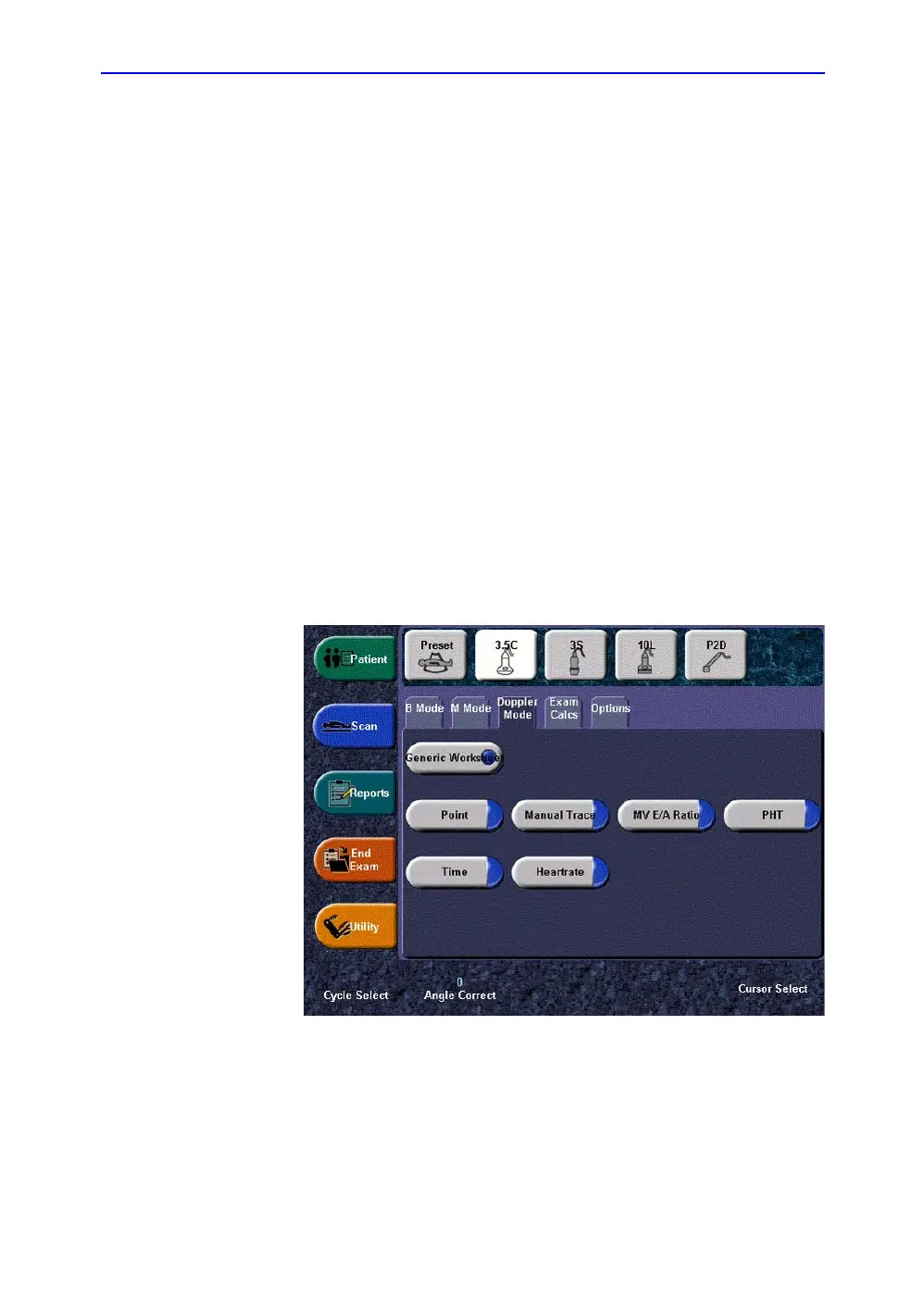

Figure 10-4. Cardiology Doppler Mode - Generic Touch Panel
