ECG Option
LOGIQ 7 Basic User Manual 10-121
Direction 2392206-100 Rev. 1
ECG Option
Overview
A physiological input panel is available for the LOGIQ 7. This
panel has inputs for ECG, PCG and auxiliary signals.
The physiological module consists of four channels: ECG, PCG,
AUX1 and AUX2 (AUX 2 is currently not available). The two
channels, AUX1 and AUX2, are both capable of handling
external ECG signals from other diagnostic ECG devices. AUX2
is also capable of handling a pressure/pulse signal.
The scanned image that is displayed is synchronized with the
ECG and PCG traces. In Doppler or M-Mode, the traces are
synchronized to that particular mode’s sweep.
Approved accessory cables provide the proper signals to the
Physiological Panel.

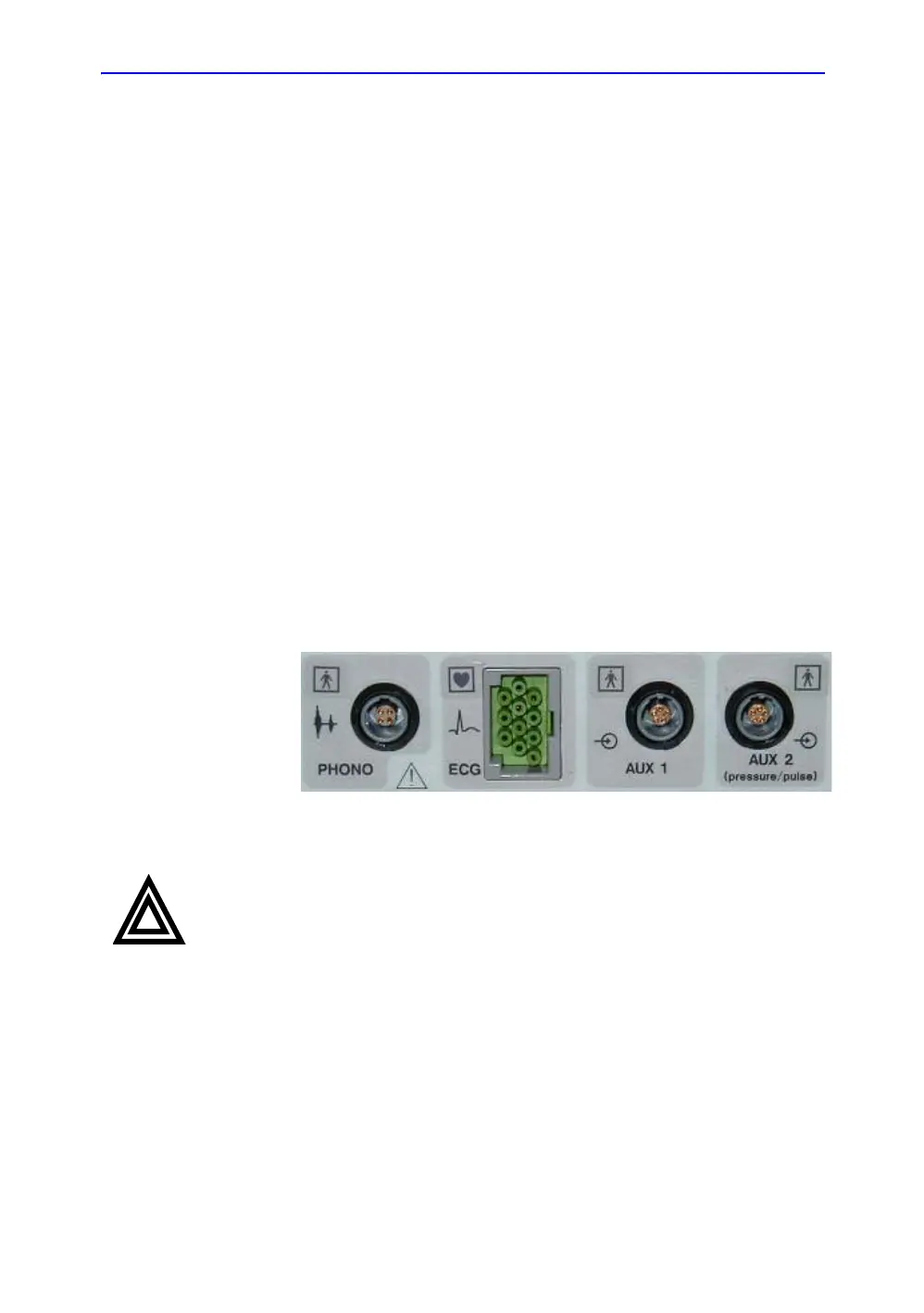

Figure 10-26. Optional Physiological Input Panel
WARNING
• Do not use with the Defibrillator.
This equipment does not have a defibrillator approved
applied part.
• Do not use the LOGIQ 7 Ultrasound system Physiological
traces for diagnosis and monitoring.
• Only approved and recommended peripherals and
accessories should be used.
