Vascular
11-26 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
To edit a worksheet
To change data on a worksheet:
1. Select Worksheet Display from any page of the Vascular
Calculation Touch Panel Menu.
2. To position the cursor at the field you want to change, move
the Trackball.
The field is highlighted.
3. Type the new data in the field and move the cursor to
another place, then the new data is displayed in blue and
asterisk are appended to value and resultant value to
indicate that it was manual entered.
The average measurements, calculations and ratios are
automatically updated to reflect the edited values.

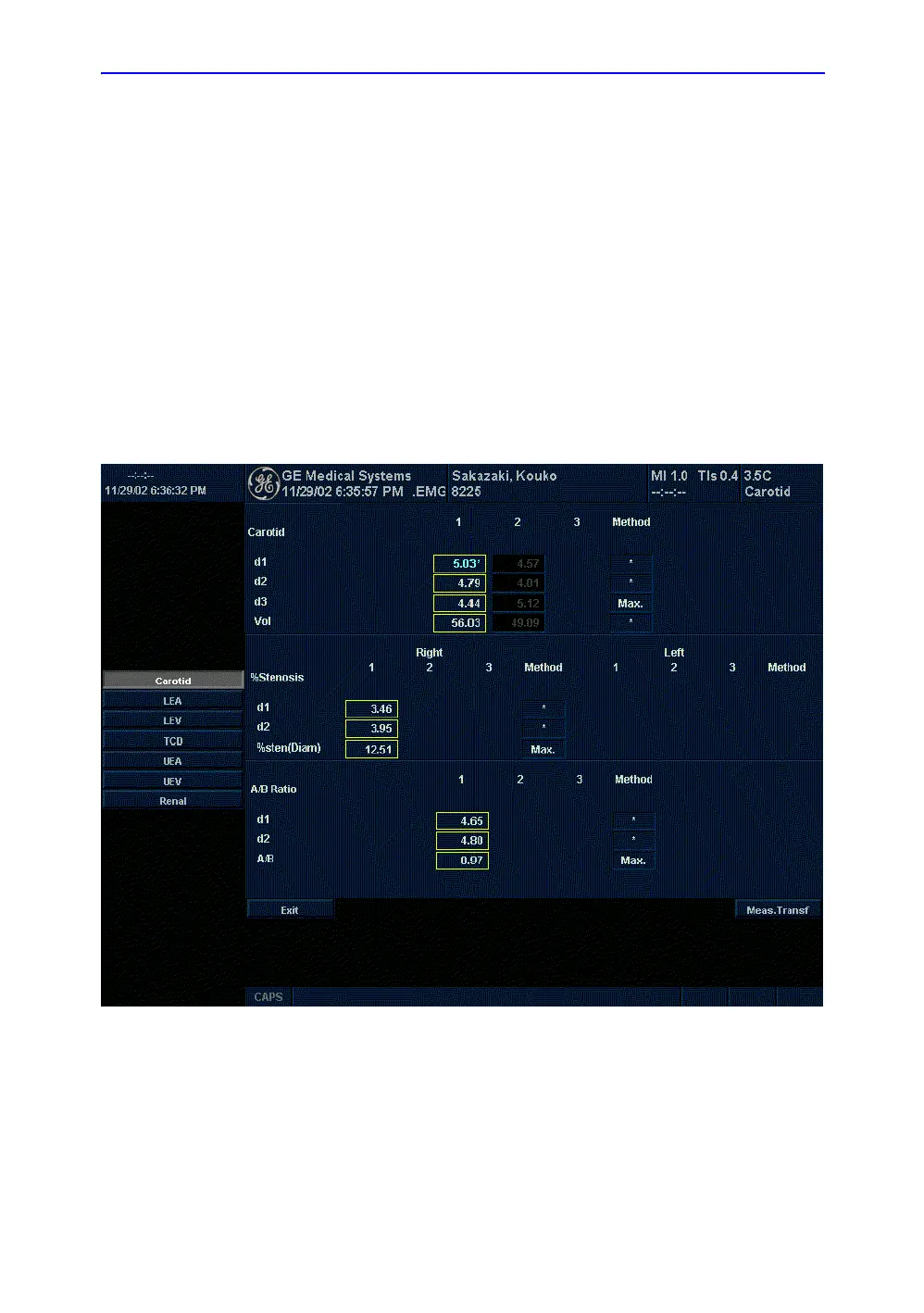

Figure 11-14. Display of the edited value
NOTE: If the user move the cursor to the edited value and press Set
key once, the value is back again before edit.
