General Measurements and Calculations
7-50 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
M&A Advanced Preset
The system allows you to specify application-specific values for
certain parameters. You specify the parameter values on the
Advanced tab of the Measurement & Analysis screen.
1. On the Touch Panel, select Utility.
2. On the Touch Panel, select Measure.
3. On the monitor display, select the Advanced tab.

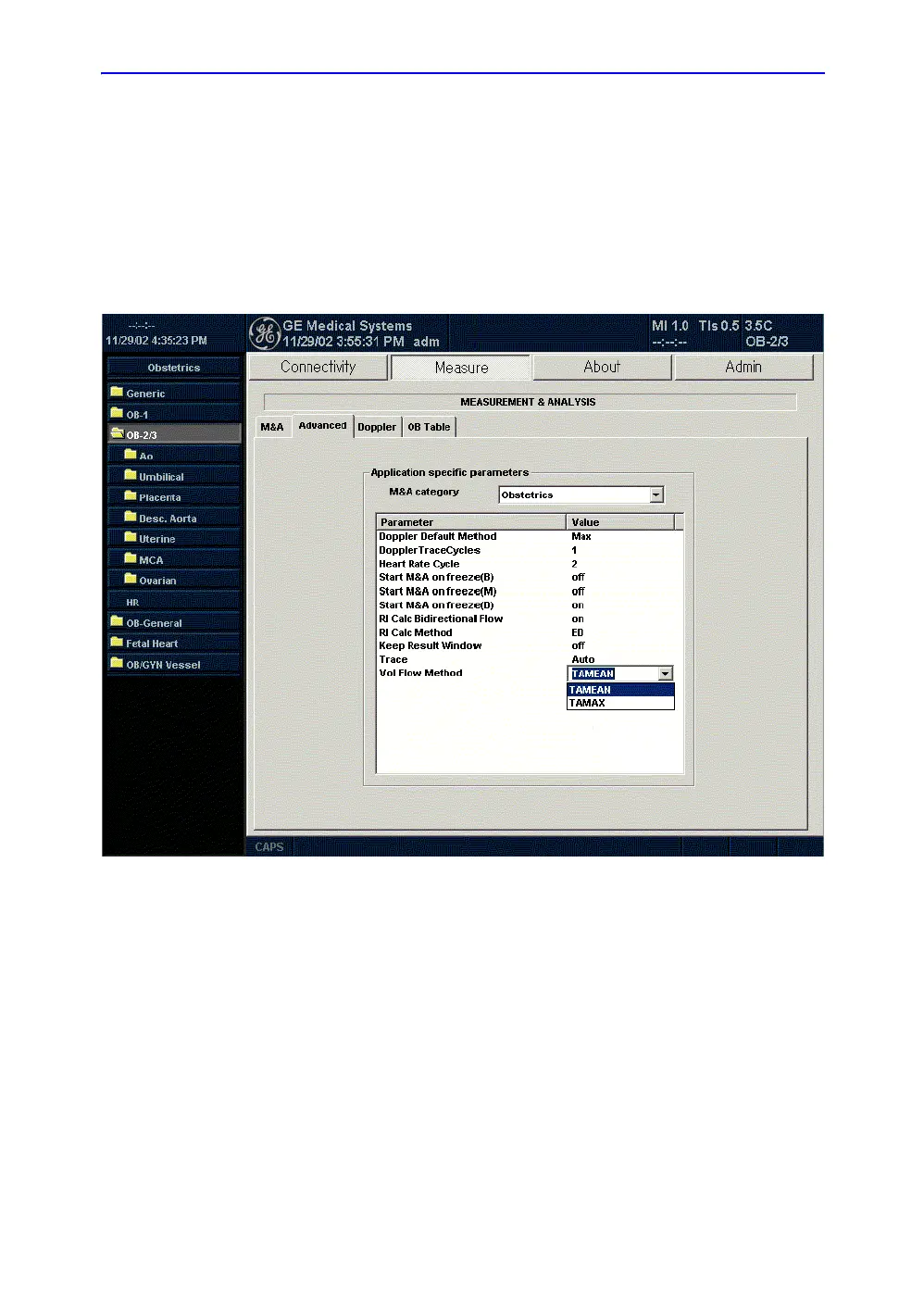

Figure 7-28. M&A Advanced Preset Menu
M&A Category: Display and select current exam category.
Parameter: Lists application specific parameters.
Value: Select the value for a parameter.
