Configuring Connectivity
LOGIQ 7 Basic User Manual 16-77
Direction 2392206-100 Rev. 1
Service
For each Device that you added to the system, you need to set
up the service(s) that device supports (you must be an
administrator to update these screens).

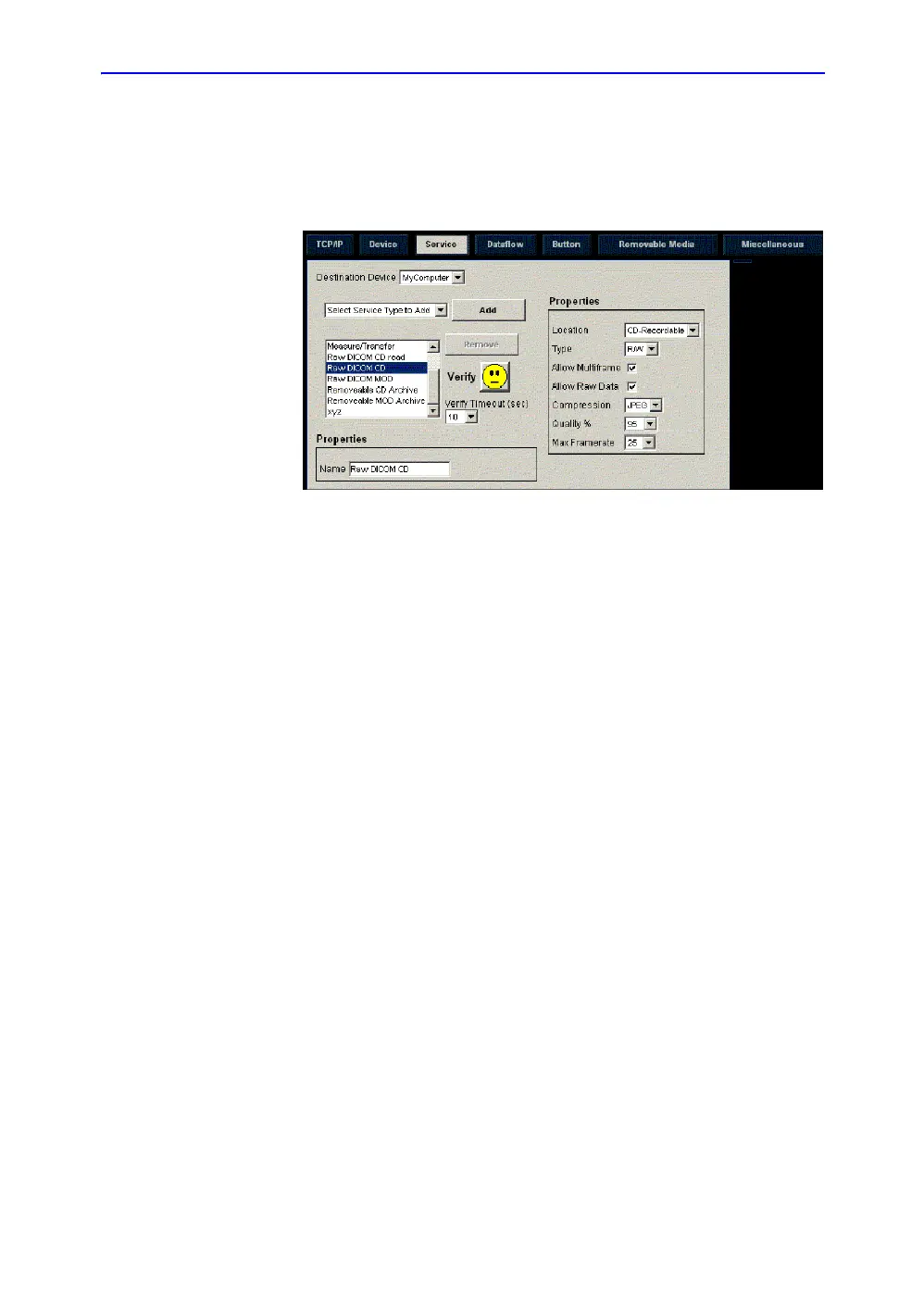

Figure 16-54. Connectivity Services Preset Menu
The Services screen has the following sections of information:
1. Destination Device - lists information about destination
devices. You can add devices, select from a list of currently
existing devices, and remove a device.
2. Service Type to Add - lists information about services for
the destination device. You can add services, select from a
list of currently existing services, and remove services.
3. Service Parameters - lists parameters for the service
currently selected in the Services section. The name and
parameters in this section change, depending on what
service is currently selected. In the above figure, this section
shows DICOM Print parameters.
