Cardiology
10-122 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
ECG Cable
The ECG Cable is a modular cable consisting of two different
cable parts:
• Single cable with a system connection at one end and a
cable splitter at the other.
• A triple color-coded electrode cable to be inserted into the
splitter device. Each electrode cable hooks up to the
appropriate stick-on electrode by a color-coded clip type
connector.
The cable splitter device has a drawing defining the color codes,
names and body location.

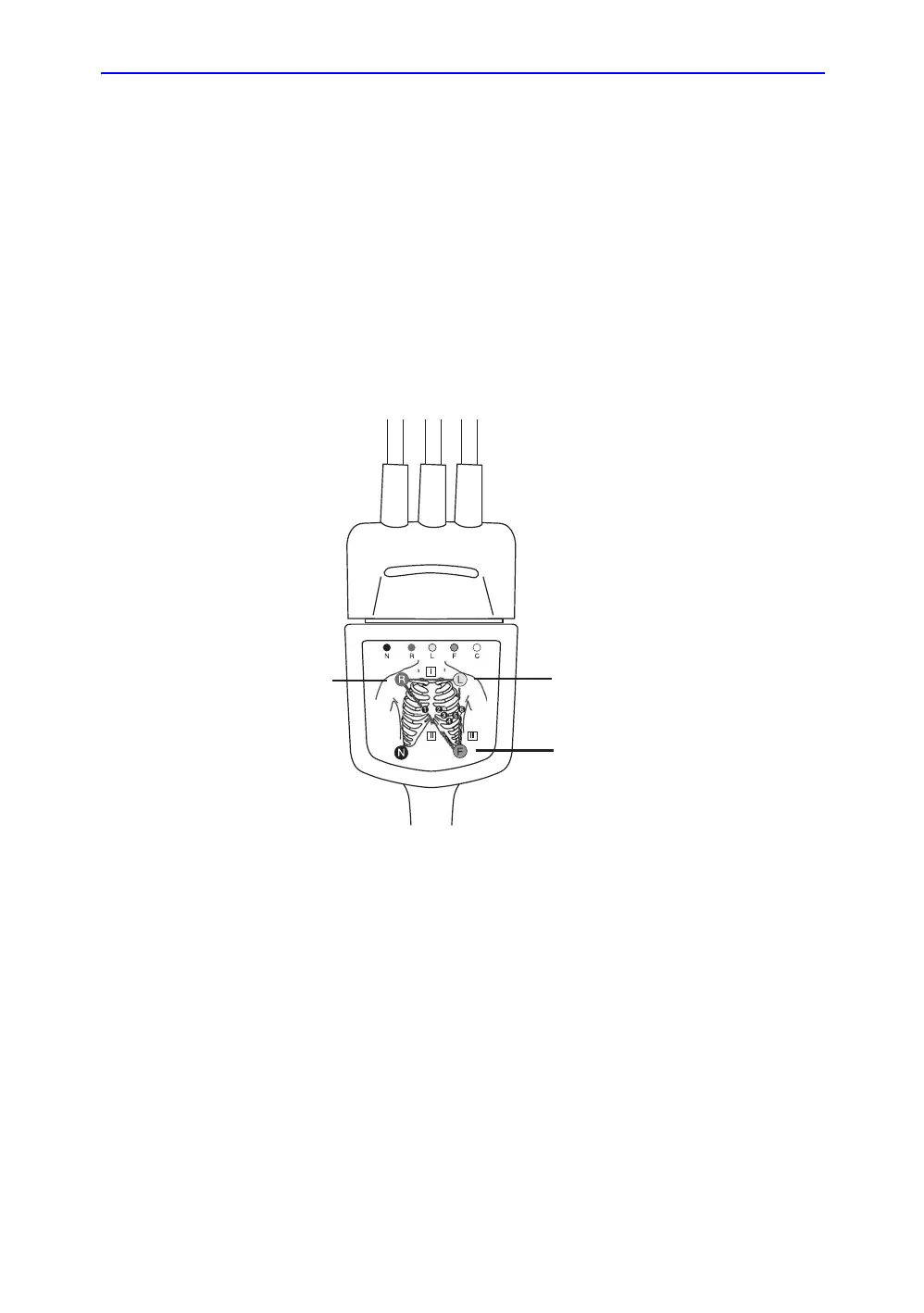

Figure 10-27. ECG Cable
R: Red
L: Yellow
F: Green
(1)
(2)
(3)
