Mode Measurements
LOGIQ 7 Basic User Manual 7-59
Direction 2392206-100 Rev. 1
Doppler Mode Measurements
Four basic measurements can be made in Doppler Mode.
• Velocity
• TAMAX, TAMIN, and TAMEAN (Manual or Auto Trace)
• Two Velocities with the Slope and Time Interval between
them
• Time Interval
NOTE: The following instructions assume that you do the following:
1. In the B-Mode part of the display, scan the anatomy you
want to measure.
2. Go to the Doppler Mode part of the display.
3. Press Freeze.
Velocity
To measure velocity:

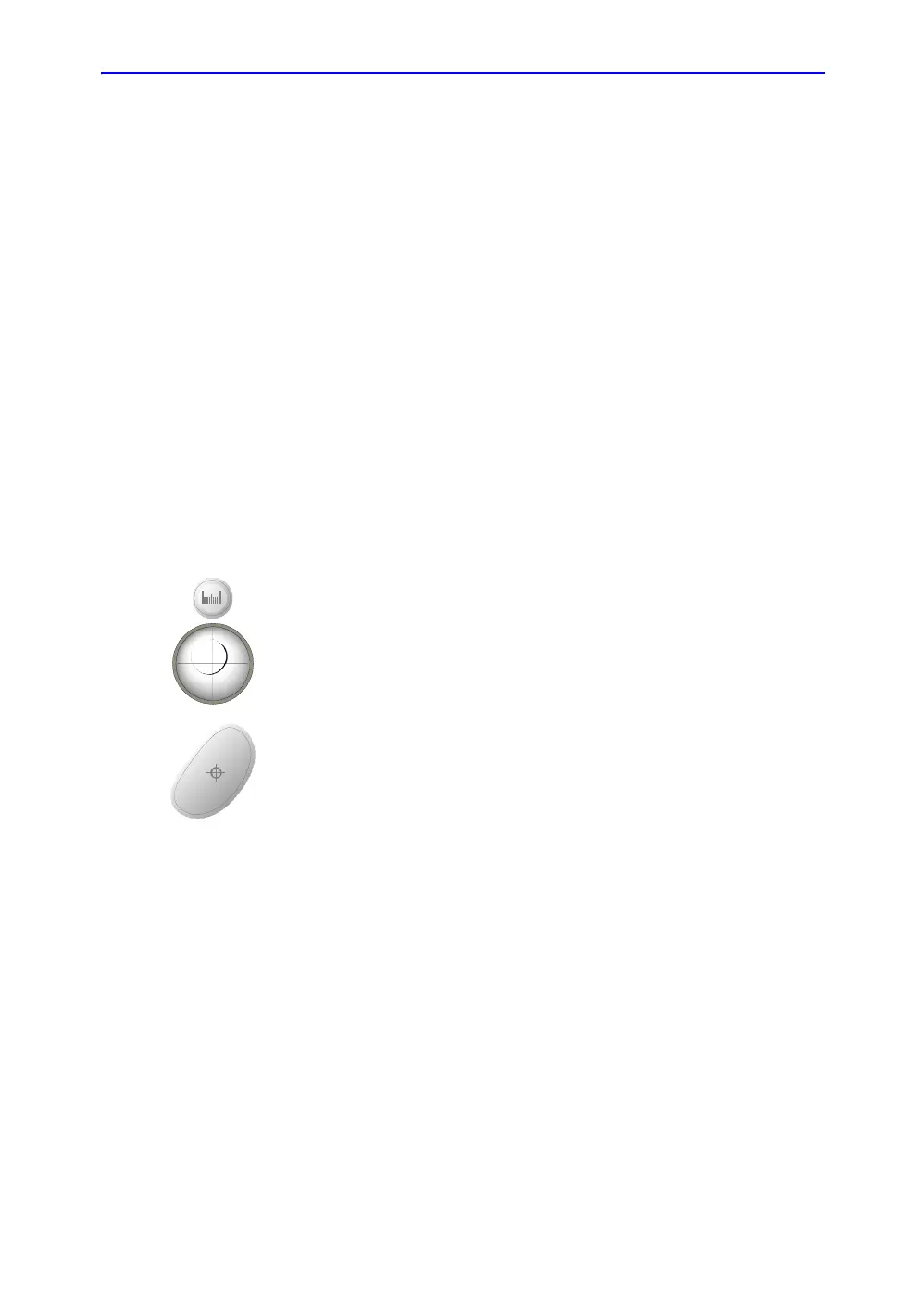

Measur
• Press Measure; an active caliper with a vertical dotted line displays.
• To position the caliper at the desired measurement point, move the Trackball.
Set
• To complete the measurement, press Set. The system displays the velocity
measurement in the Results Window.
