General Measurements and Calculations
7-60 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
TAMAX and TAMEAN
Manual Trace The value measured depends upon the Vol Flow Method preset.
The two selections available are: Peak (TAMAX) and Mean
(TAMEAN). For preset location, See ‘M&A Advanced Preset’ for
more information.

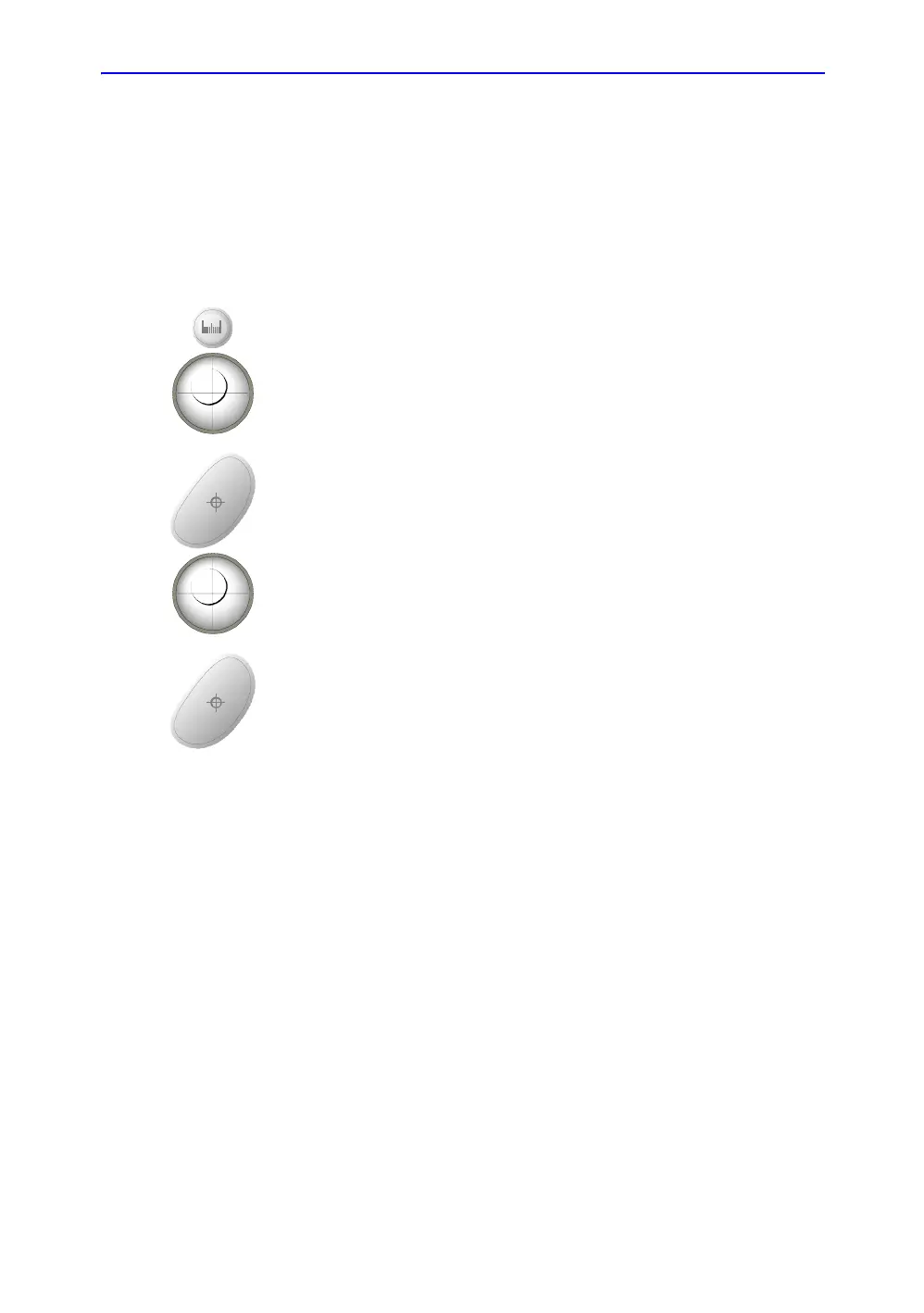

To do a manual trace of TAMAX or TAMEAN:
Measur
• Press Measure twice; a trace caliper displays.
• To position the caliper at the trace start point, move the Trackball.
Set
• To fix the start point, press Set.
• To trace the maximum values of the desired portion of the spectrum, move the
Trackball.
NOTE: To edit the trace line, move the Trackball.
Set
• To complete the measurement, press Set. The system displays the
measurement values in the Results Window.
