Mode Measurements
LOGIQ 7 Basic User Manual 7-65
Direction 2392206-100 Rev. 1
Time interval

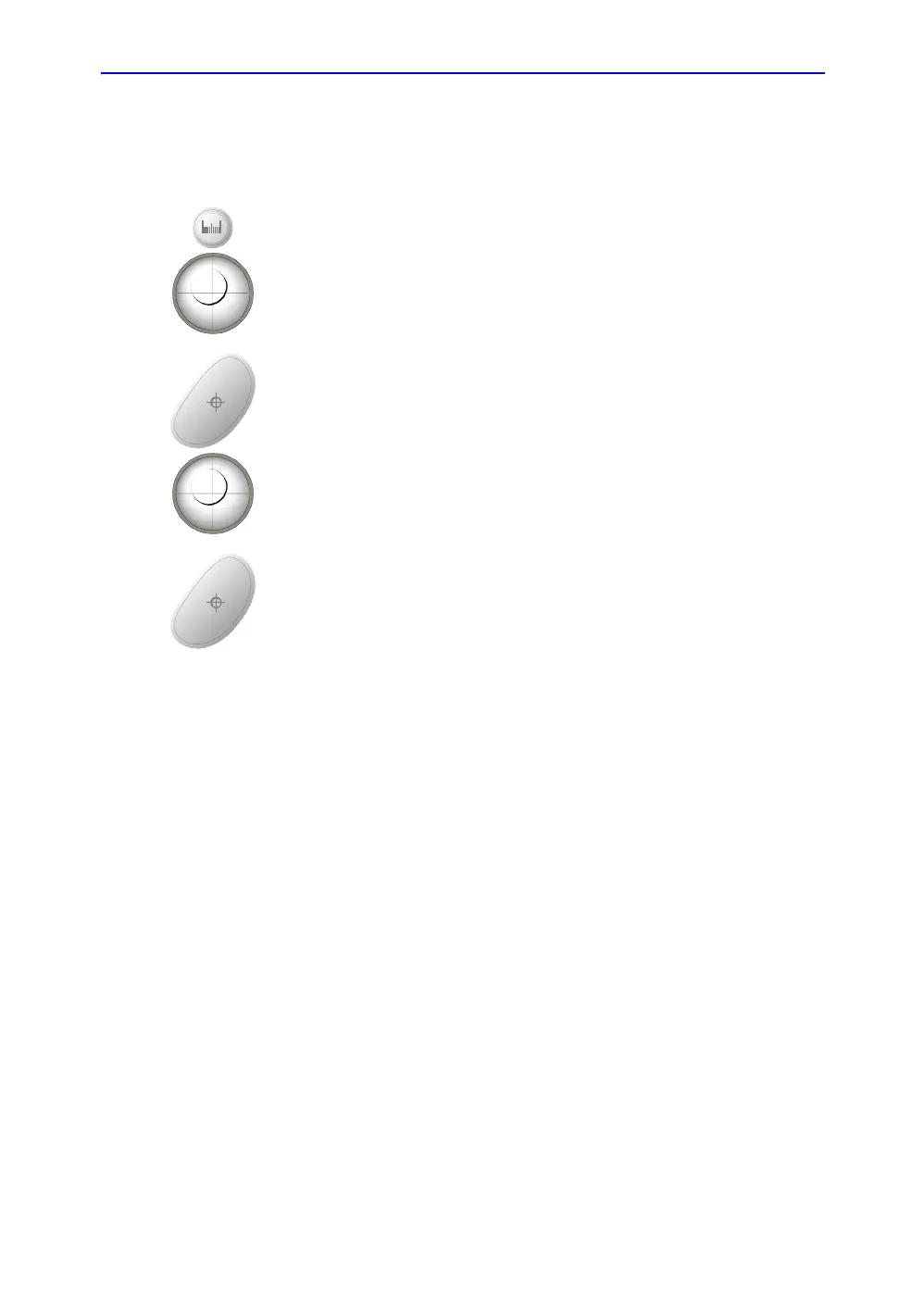

To measure a horizontal time interval:
Measur
• Press Measure twice; an active caliper with a vertical dotted line displays.
• To position the caliper at the start point, move the Trackball.
Set
• To fix the first caliper, press Set. The system fixes the first caliper and
displays a second active caliper.
• To position the second caliper at the end point, move the Trackball.
Set
• To complete the measurement, press Set. The system displays the time
interval between the two calipers in the Results Window.
