Time and slope

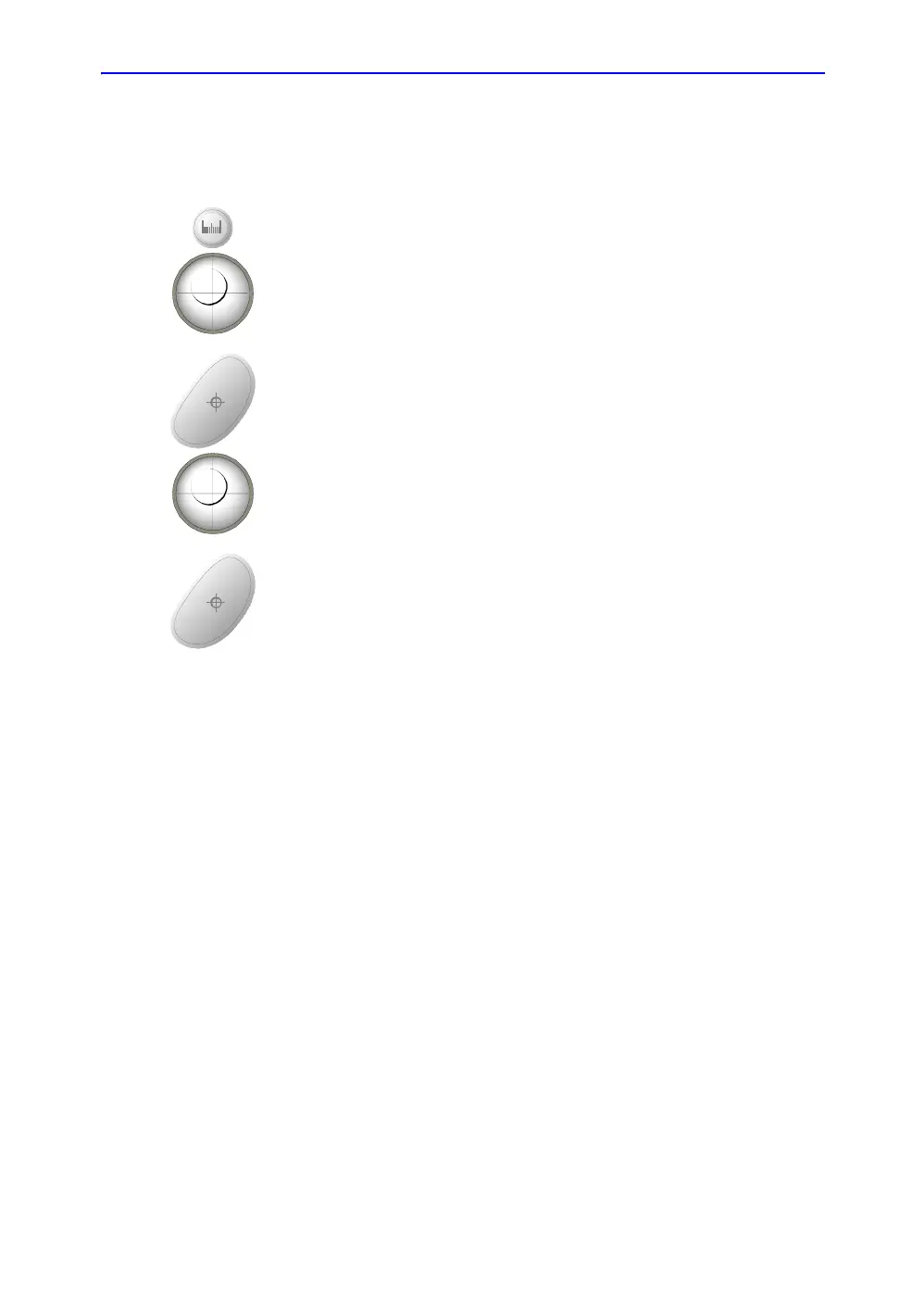

To measure time and slope between two points:
Measur
e
Press Measure three times; an active caliper with a vertical and horizontal
dotted line displays.
To position the active caliper at the start point, move the Trackball.
Set
To fix the start point, press Set.
The system fixes the first caliper and displays a second active caliper.
To position the second caliper at the end point, move the Trackball.
Set
To complete the measurement, press Set.
The system displays time(s) and slope between the two points in the Results
Window.
