Mode Measurements
LOGIQ 7 Basic User Manual 7-63
Direction 2392206-100 Rev. 1
Time interval

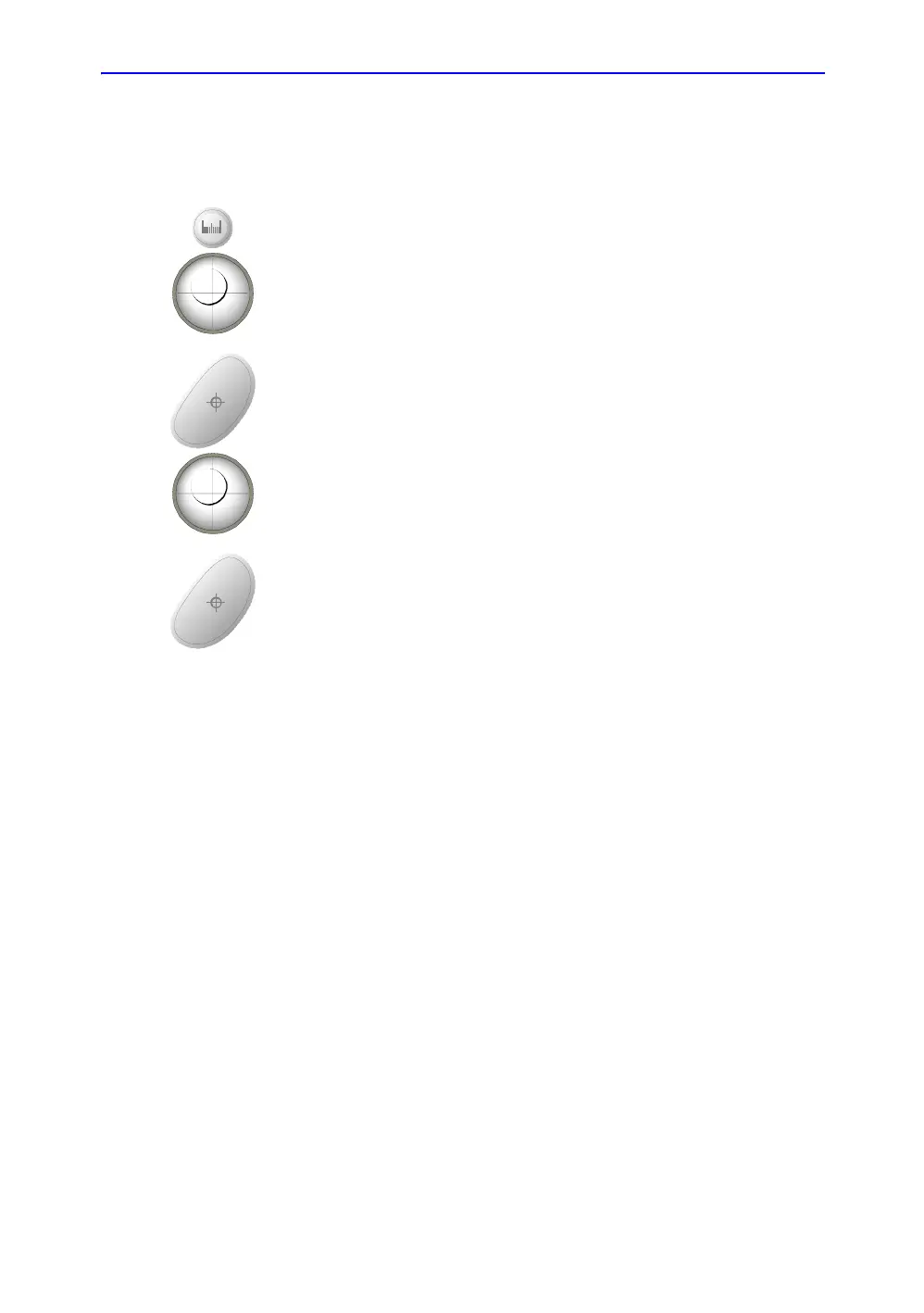

To measure a horizontal time interval:
Measur
• Press Measure four times; an active caliper with a vertical dotted line
displays.
• To position the active caliper at the start point, move the Trackball.
Set
• To fix the start point, press Set. The system fixes the first caliper and displays
a second active caliper.
• To position the second caliper at the end point, move the Trackball.
Set
• To complete the measurement, press Set. The system displays the time
interval between the two calipers in the Results Window.
