GE LOGIQ 7

General Measurements and Calculations
7-62 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Slope and time interval
To measure two velocity values, the time interval (sec), and
slope (m/s
2
):
Measur
e

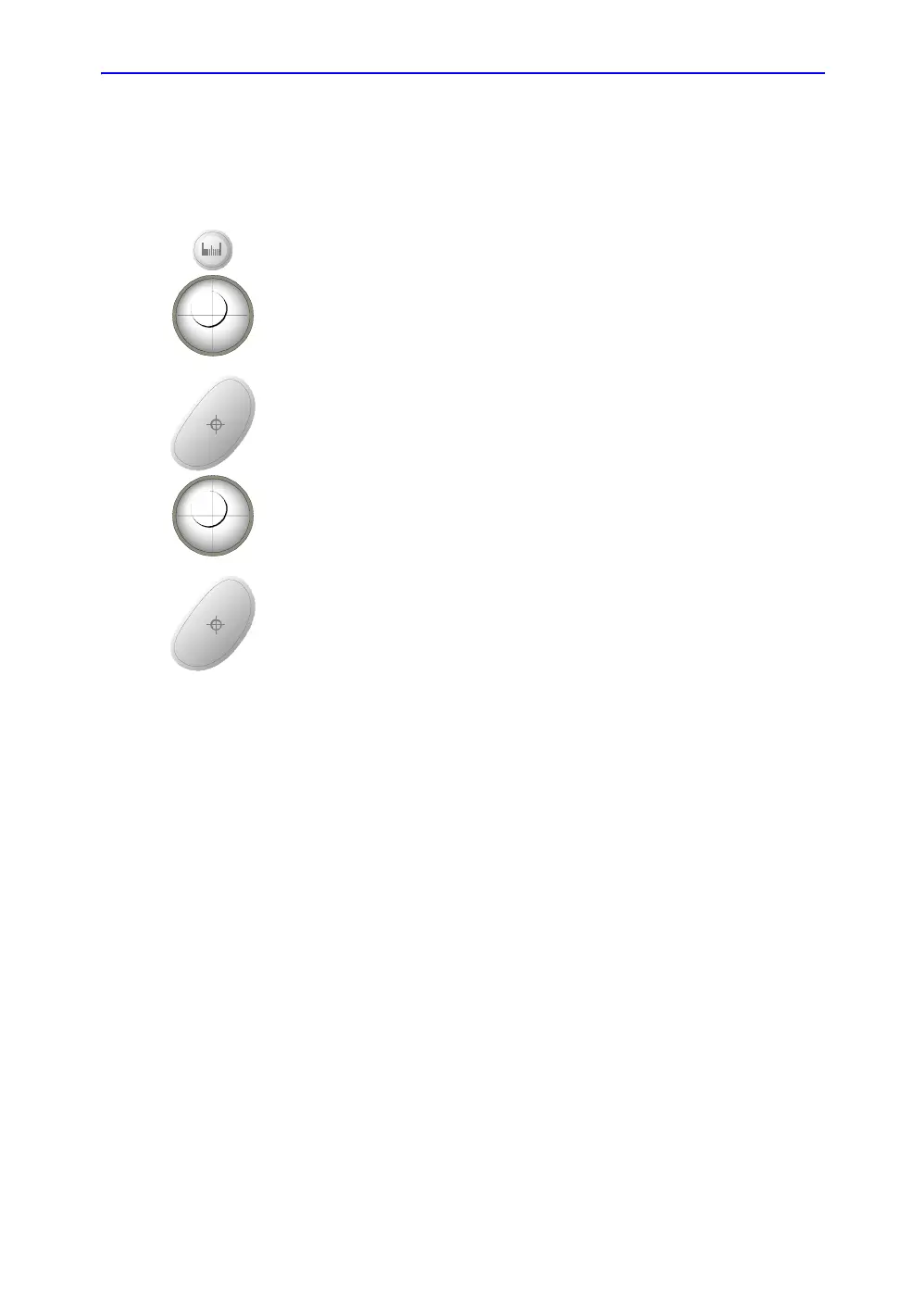

• Press Measure three times; an active caliper with vertical and horizontal
dotted lines displays.
• To position the caliper at the start point, move the Trackball.
Set
• To fix the start point, press Set. The system fixes the first caliper and displays
a second active caliper.
• To position the second caliper at the end point, move the Trackball.
Set
• To complete the measurement, press Set. The system displays the two peak
end point velocities, the time interval, and the slope in the Results Window.
