Optimizing B-Mode
LOGIQ 7 Online Help 5-27
Direction 2392536-100 Rev. 1
Contrast Imaging Overview (continued)
Activation Press the Contrast key on the Control Panel. B-Mode Contrast
activates in the B fundamental frequency.

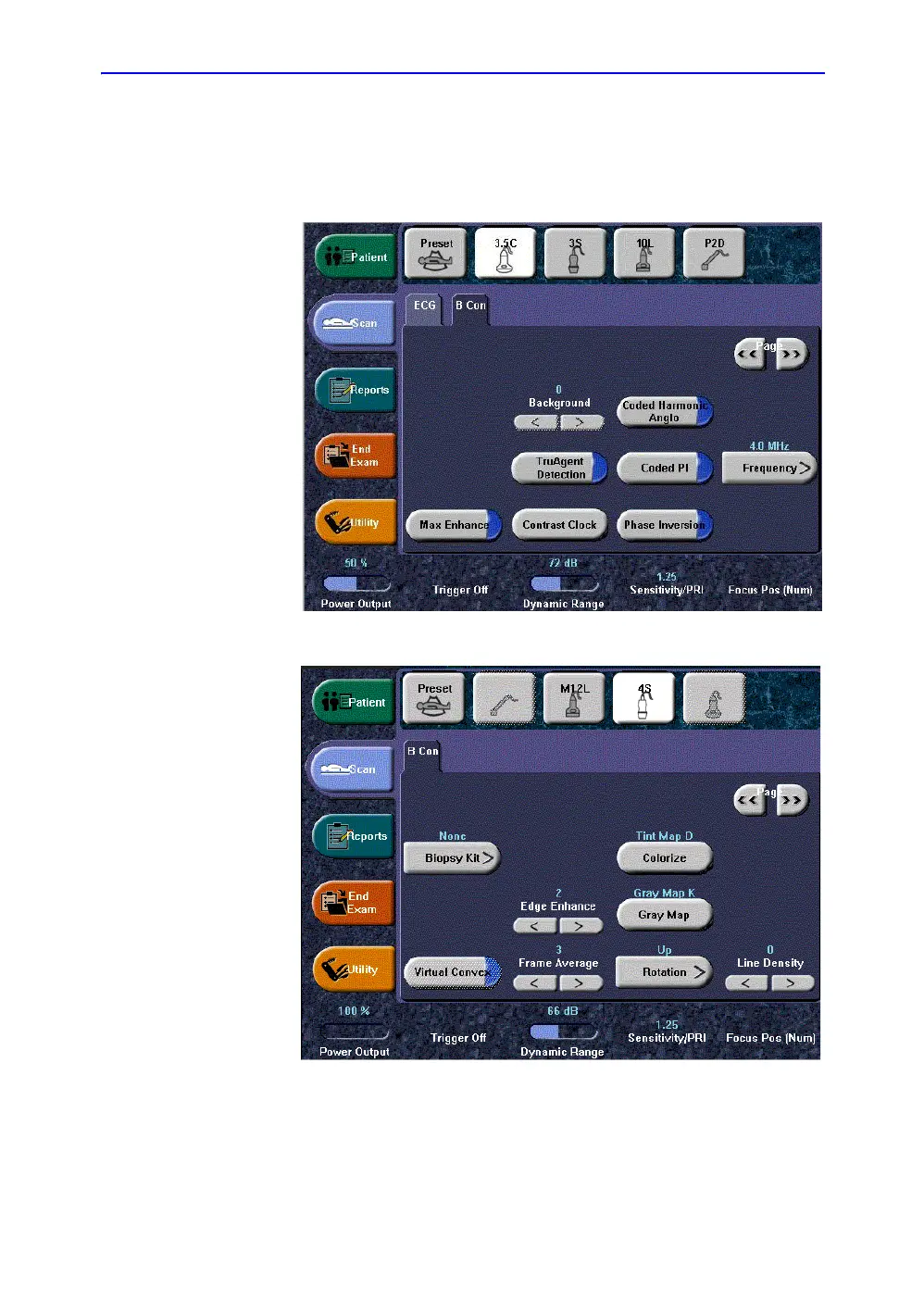

Figure 5-4. B Mode Contrast Imaging, Page 1
Figure 5-5. B Mode Contrast Imaging Touch Panel, Page 2
