Optimizing the Image
5-116 LOGIQ 7 Online Help
Direction 2392536-100 Rev. 1
Viewing Specific
Portions of the
Anatomy
You can pull back tissue to view specific portions of anatomy
using the yellow hand. Press Set when the yellow pointer finger
is positioned on the yellow box. Move the closed yellow hand to
manipulate the 3D VOI.
NOTE: This actually moves an edge. A yellow hand appears only when
the pointer is on an edge of the VOI.

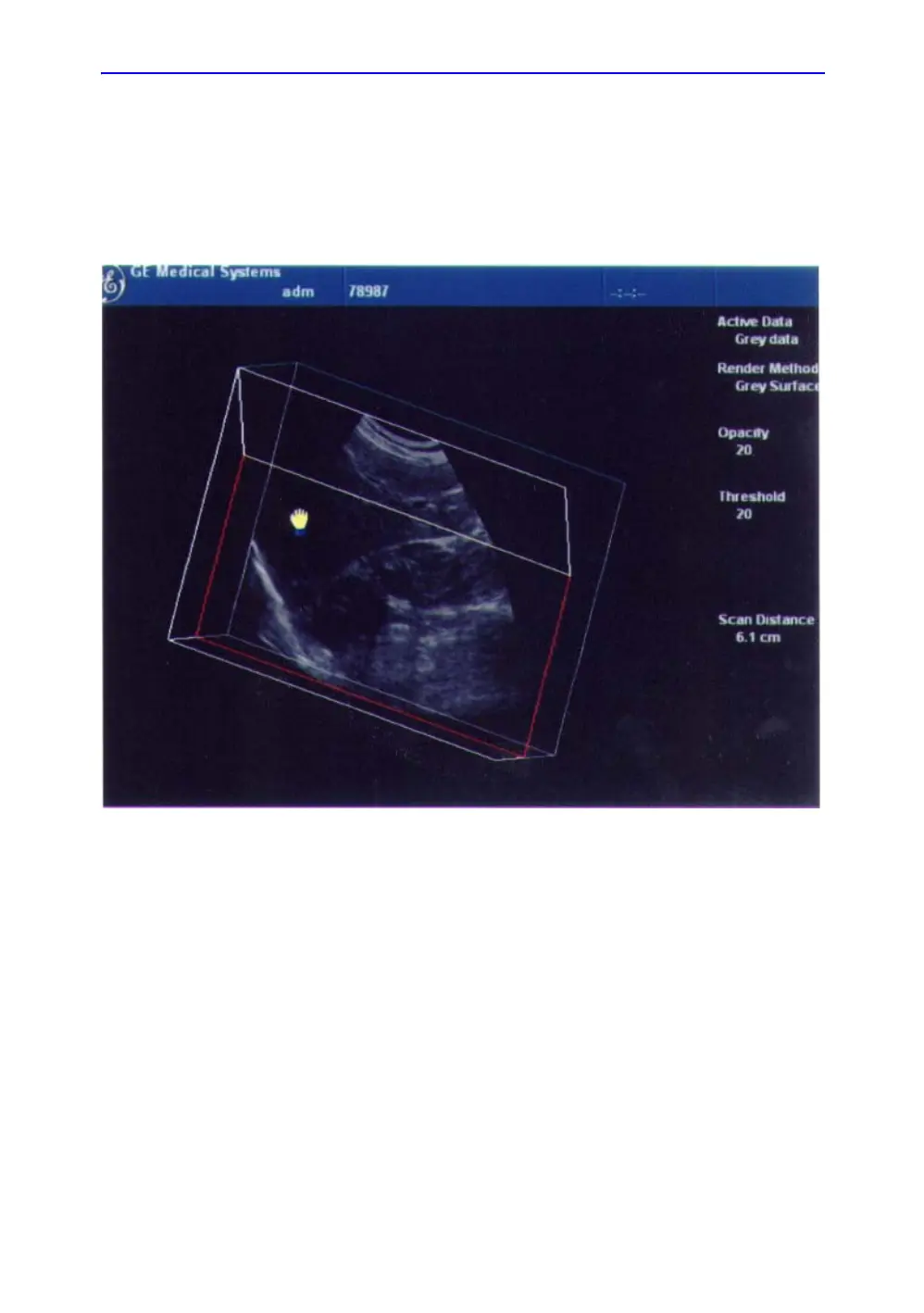

Figure 5-55. Manipulating the Edge of a 3D Volume of Interest (Yellow Hand)
