GE LOGIQ 7 Basic User Manual

General Measurements and Calculations
7-28 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Specifying Which Measurements Go in a Study or Folder (continued)
Touch Panel positions
Each Touch Panel has 16 positions, four across and four down.
The items in the first row across are numbered 1–4, in the
second row 5–8, and so on. This figure shows the OB/GYN
Vessel Touch Panel and a portion of the Measurement &
Analysis screen for the OB/GYN Vessel. The numbers are
shown in the Measure & Study list in the Measurement &
Analysis screen. For example, the second row in the Touch
Panel shows Prox, Aorta, Umbilical, and Placenta. In the
Measurement & Analysis screen, the Measure & Study list
shows these as number 5–8.

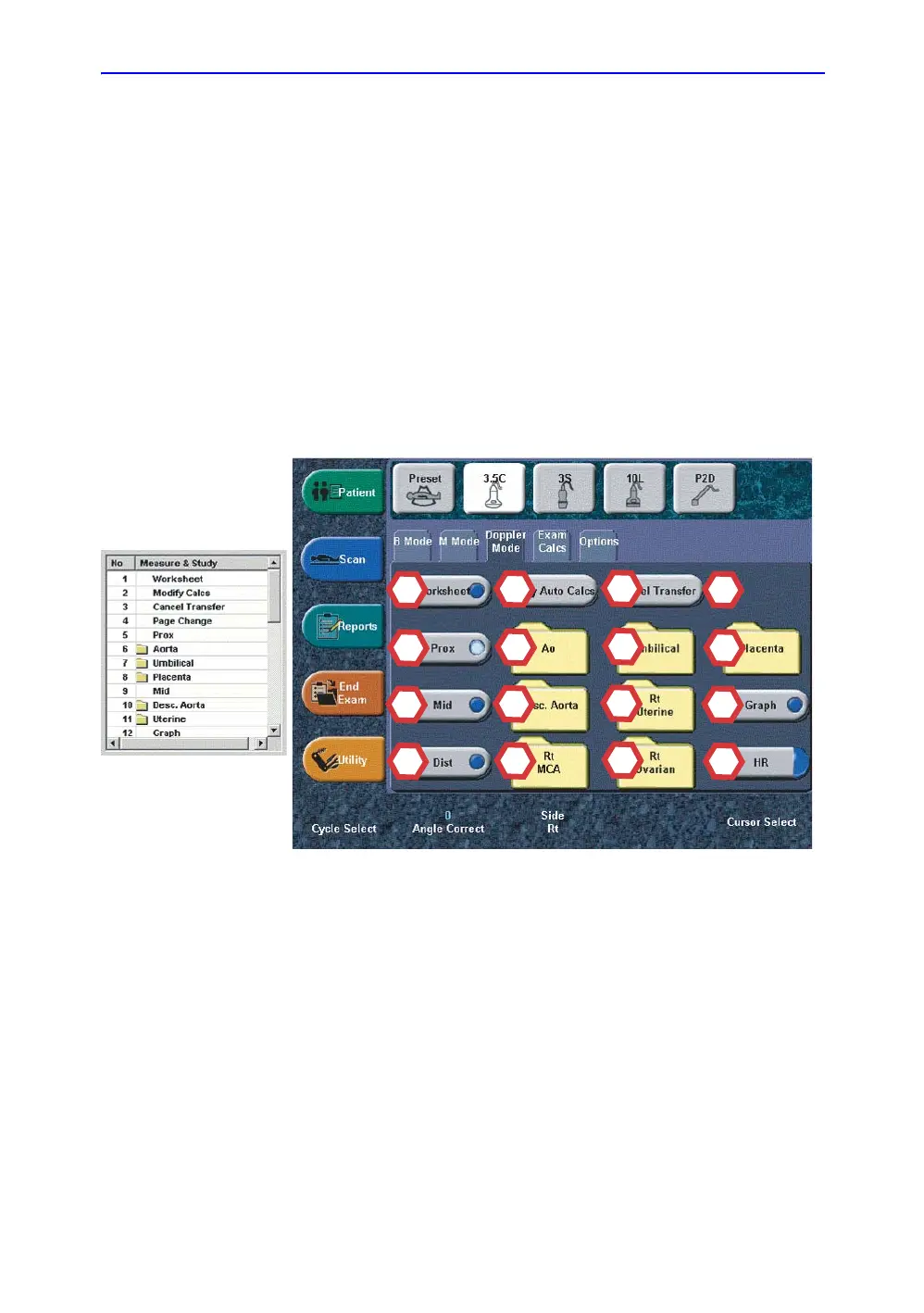

Figure 7-15. Measure & Study display with Touch Panel positions
NOTE: Positions 1 through 4 are system programmed and cannot be
changed.
1
4
3
2
5
8
7
6
9
12
12
11
11
10
10
13
13
16
16
15
15
14
14
