Mode Measurements
LOGIQ 7 Basic User Manual 7-69
Direction 2392206-100 Rev. 1
To view a worksheet (continued)
To view a different worksheet, select the worksheet key for the
desired worksheet.

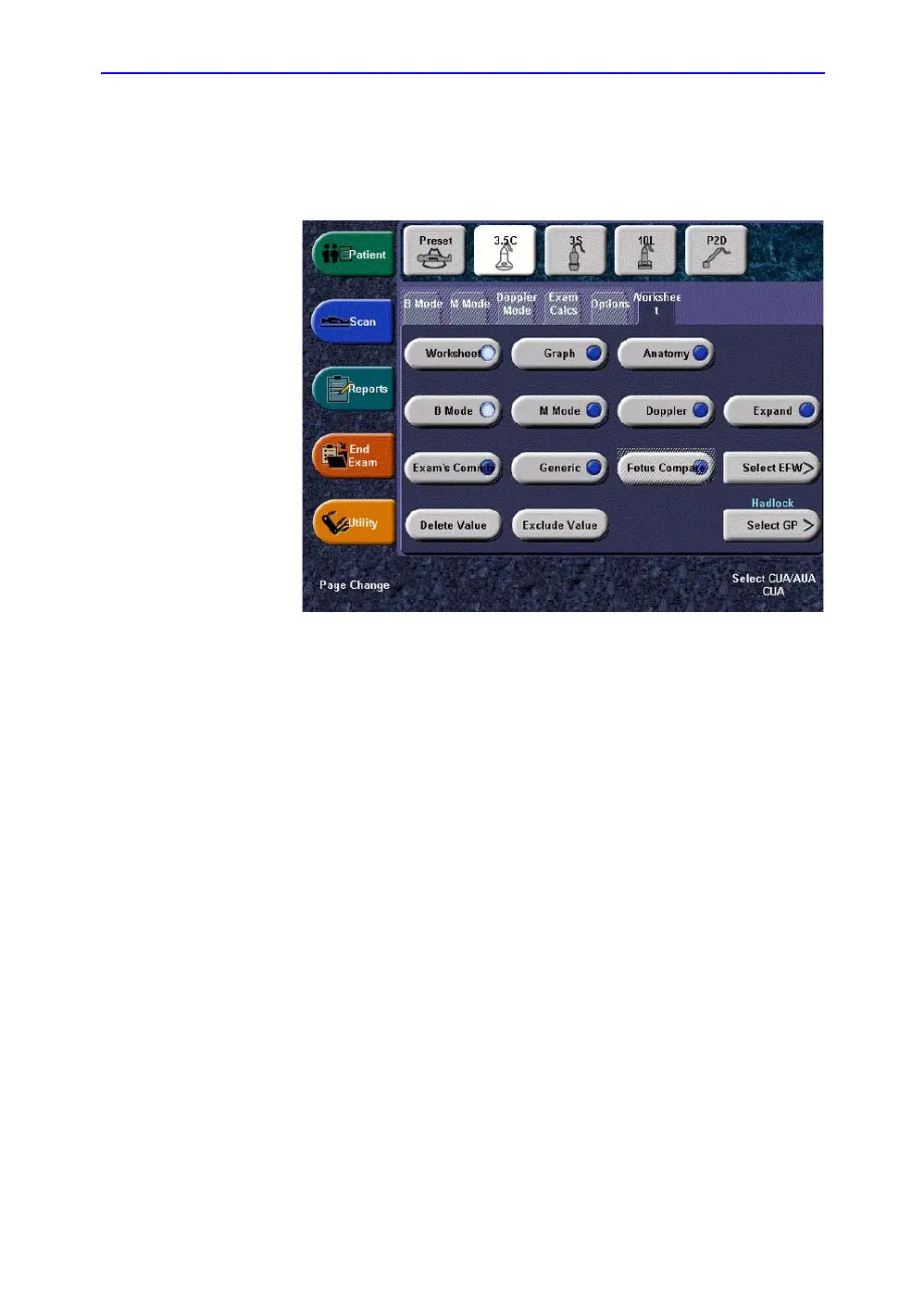

Figure 7-32. Worksheet Display Touch Panel: OB Study
To view worksheet data for a particular mode, select the key for
that mode. To view a worksheet with data for more than one
mode, select Expand Worksheet.
If a worksheet has more data on a second page, to view the next
page, adjust the Page Change control.
To Next Page
