Cardiology
10-98 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
Activating Continuous Capture (continued)
11. Press Select Cycle.
The Continuous Capture selection screen displays.
If the buffer is filled up, the system automatically displays
the Continuous Capture Selection screen.
Refer to the next section if additional image acquisitions are
necessary after the buffer is filled up.

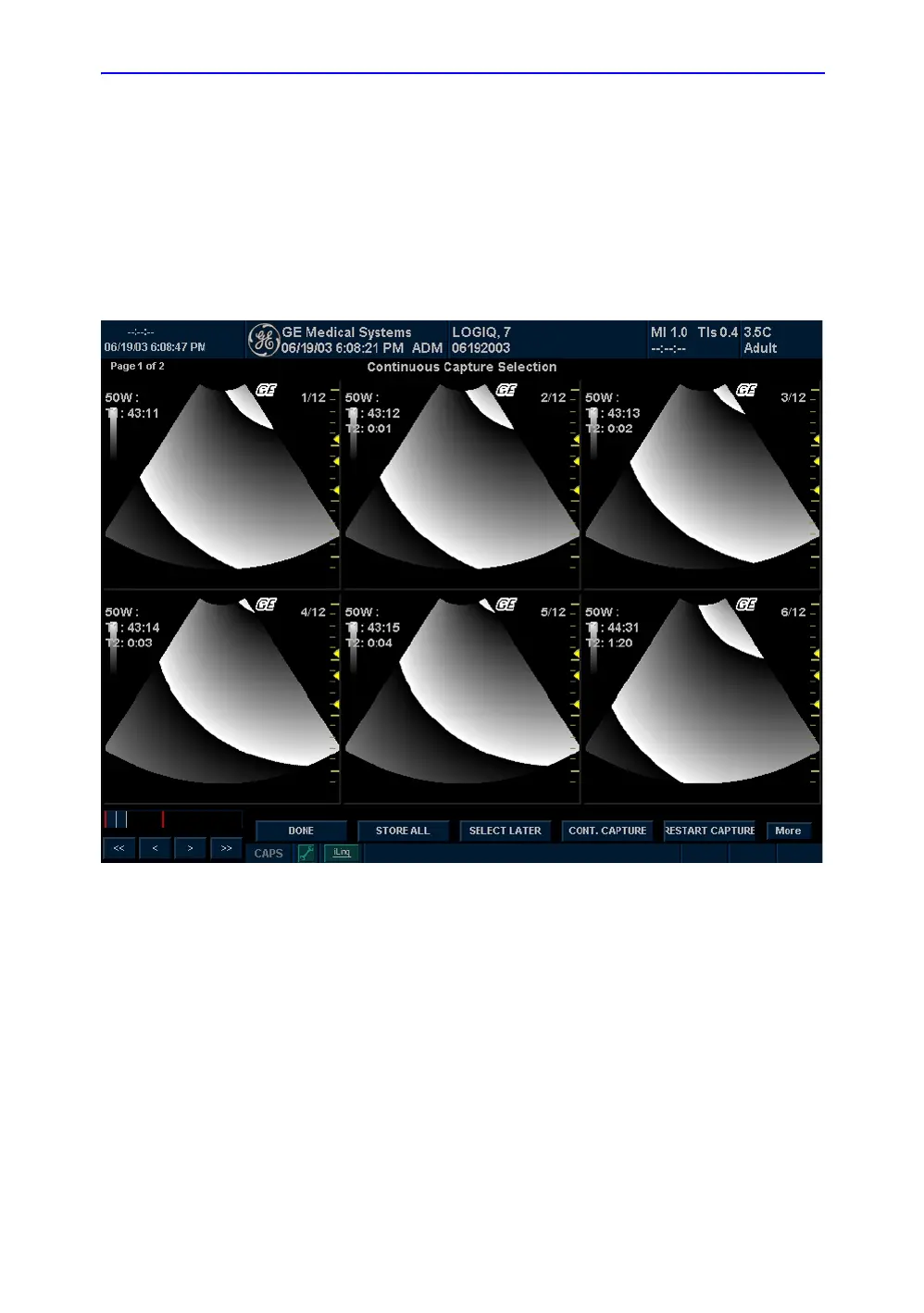

Figure 10-13. Continuous Capture Selection Screen
