Stress Echo
LOGIQ 7 Basic User Manual 10-111
Direction 2392206-100 Rev. 1
Scoring acquired loops (continued)
2. Use the Trackball to move the cursor to a segment in one of
the scoring diagrams and press Set.
The Score pop-up list displays.
3. Use the Trackball to move the cursor to a score.
4. Press Set.
The score displays in the relevant segment area in the
diagram.
NOTE: To edit a score, select it and choose a new score.
5. Repeat step 1 through 3 to score relevant segments.
6. Press the Change Page arrow to display the next group of
images.
7. Repeat step 1 through 3 to score relevant segments on the
new loops.

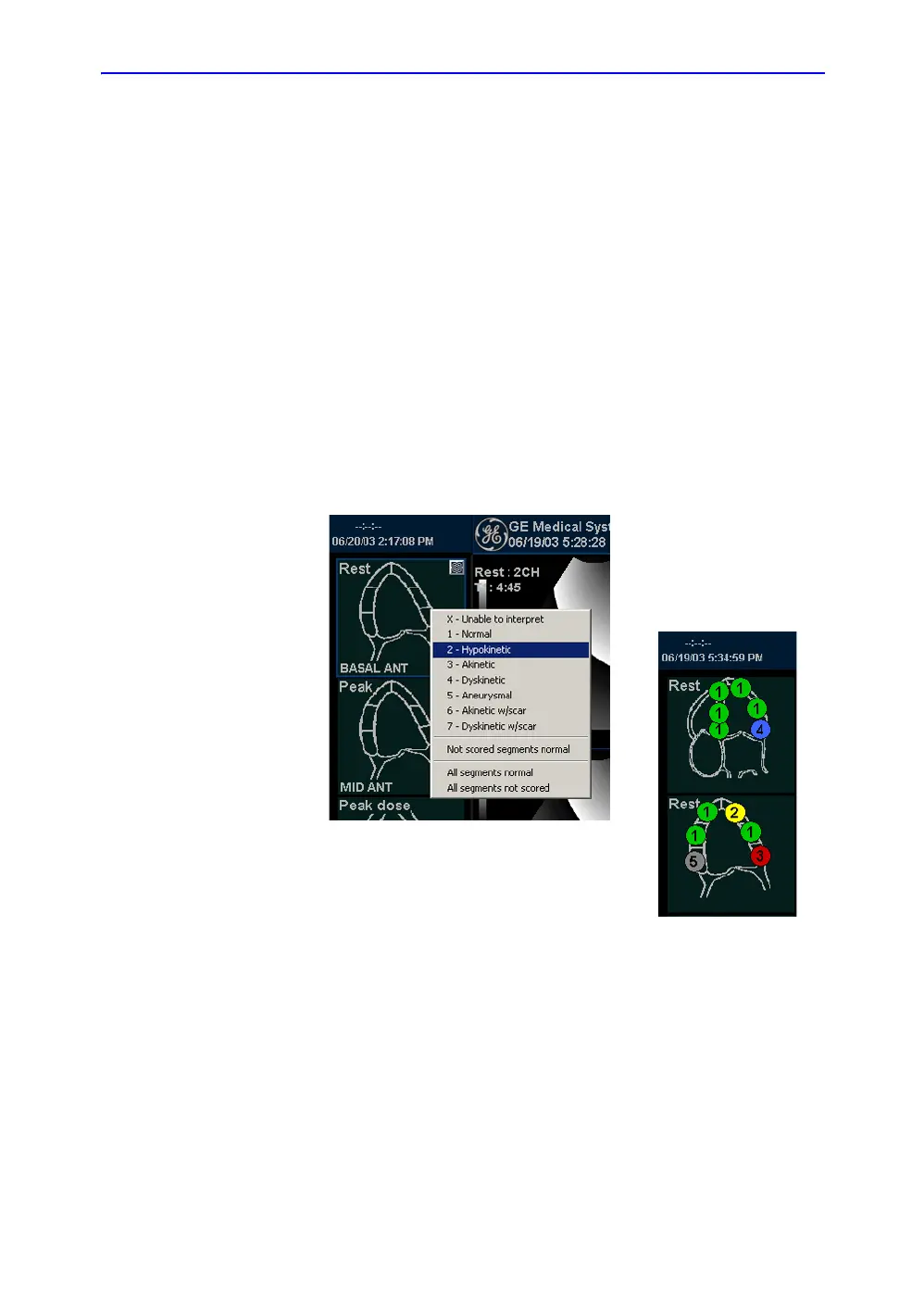

Figure 10-21. Segment Scoring
NOTE: Since Cine changes into sync mode, subsequent scans are also
synchronized. Exit sync mode from the Cine menu.
