Vascular
11-18 LOGIQ 7 Basic User Manual
Direction 2392206-100 Rev. 1
To select vascular measurements
Your system is set up to show the measurements that you
usually make for each vessel. To make a measurement that is
not shown for the selected vessel:
1. Select the folder for the vessel you want to measure.

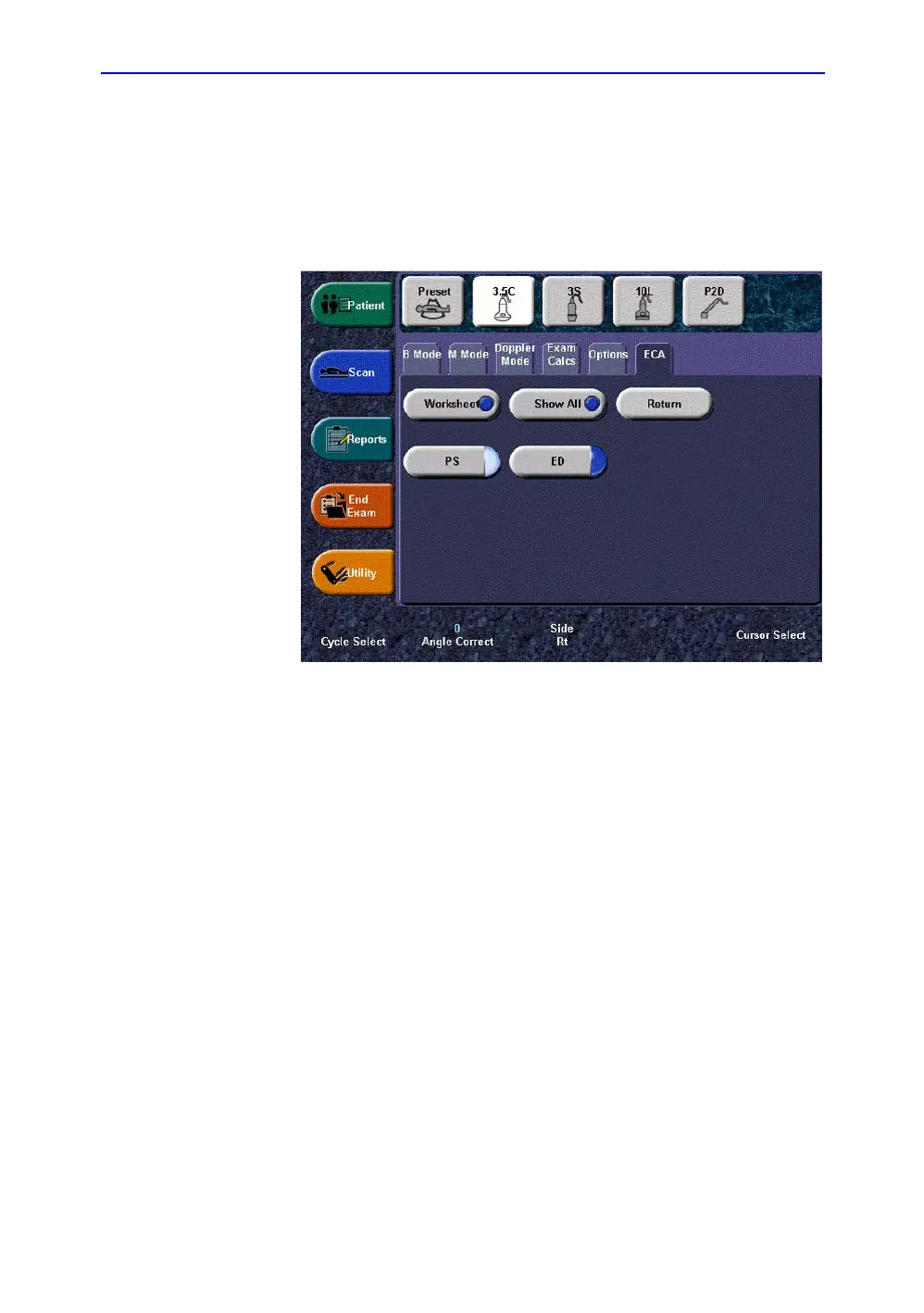

Figure 11-10. ICA folder
2. Select Show All.
The system displays all possible vessel measurements.
