Console Overview
LOGIQ 7 Basic User Manual 3-11
Direction 2392206-100 Rev. 1
Peripheral/Accessory Connector Panel (continued)

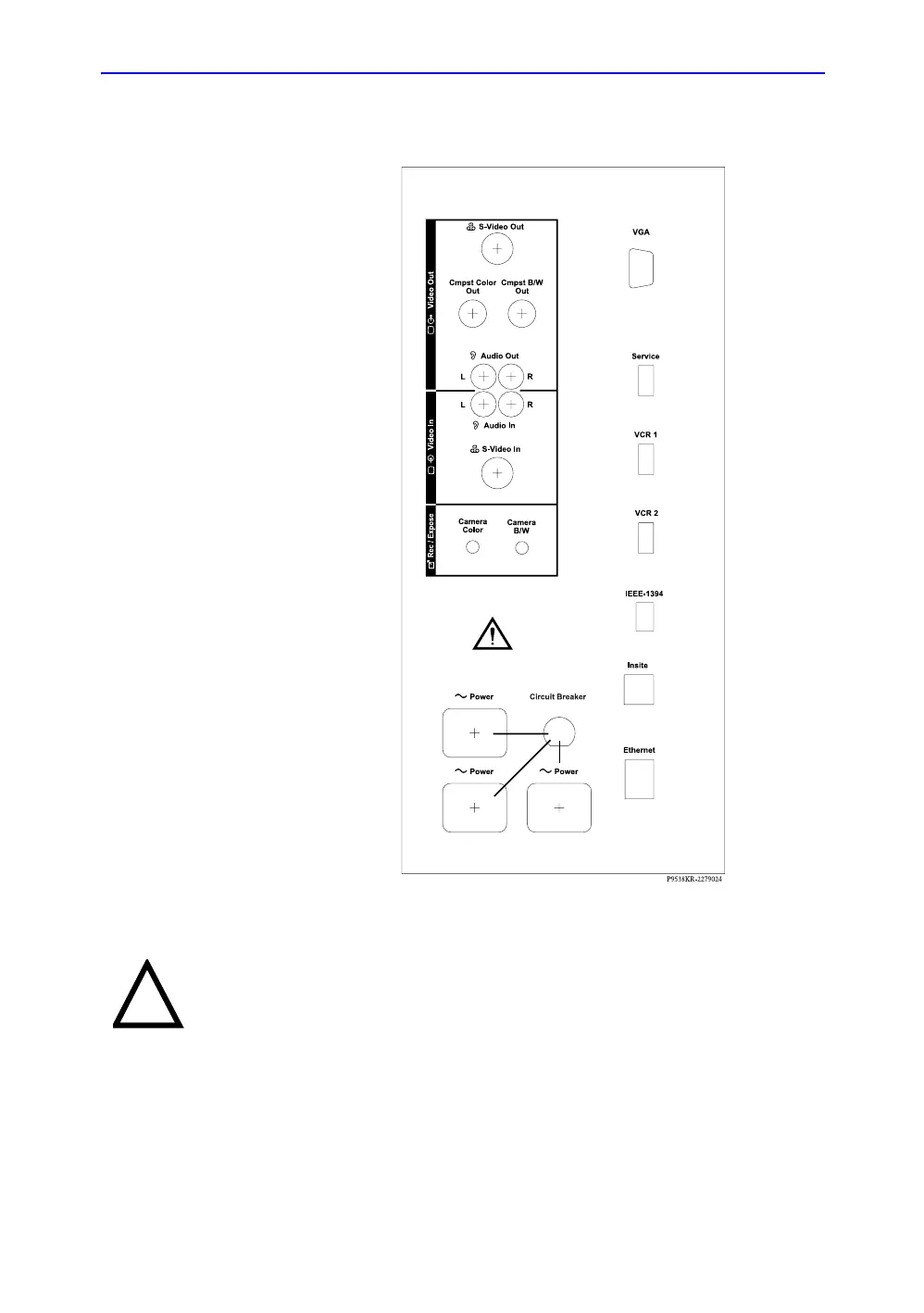

Figure 3-6. Peripheral/Accessory Connector Panel
CAUTION
The connection of equipment or transmission networks other
than as specified in these instructions can result in electric
shock hazard. Alternate connections will require verification of
compatibility and conformity to IEC/EN 60601-1-1 by the
installer.
