Test Run and Program Run | Graphics (option 20)
18
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017
703

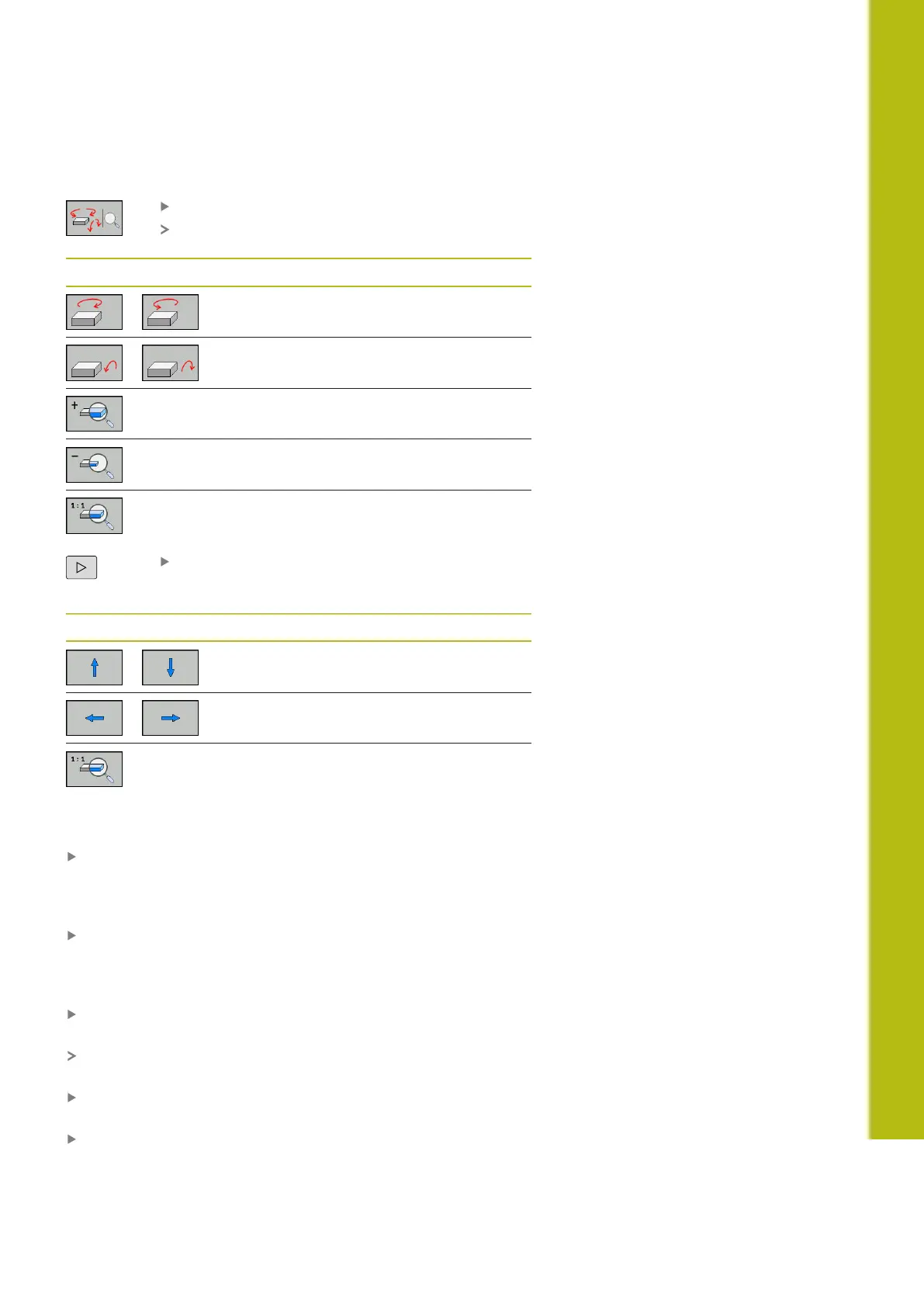

Rotating, enlarging and shifting the 3-D view
Select functions for rotating and zooming
The control displays the following soft keys.
Soft keys Function
Rotate in 5° steps about the vertical axis
Tilt in 5° steps about the horizontal axis
Enlarge the graphic stepwise
Reduce the graphic stepwise
Reset the graphic to its original size and
angle
Scroll through the soft-key row
Soft keys Function
Move the graphic upward or downward
Move the graphic to the left or right
Reset the graphic to its original position and
angle
You can also use the mouse to change the graphic display. The
following functions are available:
In order to rotate the model shown in three dimensions, hold
down the right mouse button and move the mouse. If you
simultaneously press the shift key, you can only rotate the
model horizontally or vertically
To shift the model shown: Hold the center mouse button or
mouse wheel down and move the mouse. If you simultaneously
press the shift key, you can only shift the model horizontally or
vertically
To zoom in on a certain area: Mark a zoom area by holding the
left mouse button down.
After you release the left mouse button, the control zooms in on
the defined area.
To rapidly magnify or reduce any area: Rotate the mouse wheel
backwards or forwards
To return to the standard display: Press the shift key and
simultaneously double-click with the right mouse key. The
rotation angle is maintained if you only double-click with the
right mouse key
