HEIDENHAIN TNC 620 Programming Station User Manual

Test Run and Program Run | Graphics (option 20)
18
704
HEIDENHAIN | TNC 620 | Conversational Programming User's Manual | 10/2017

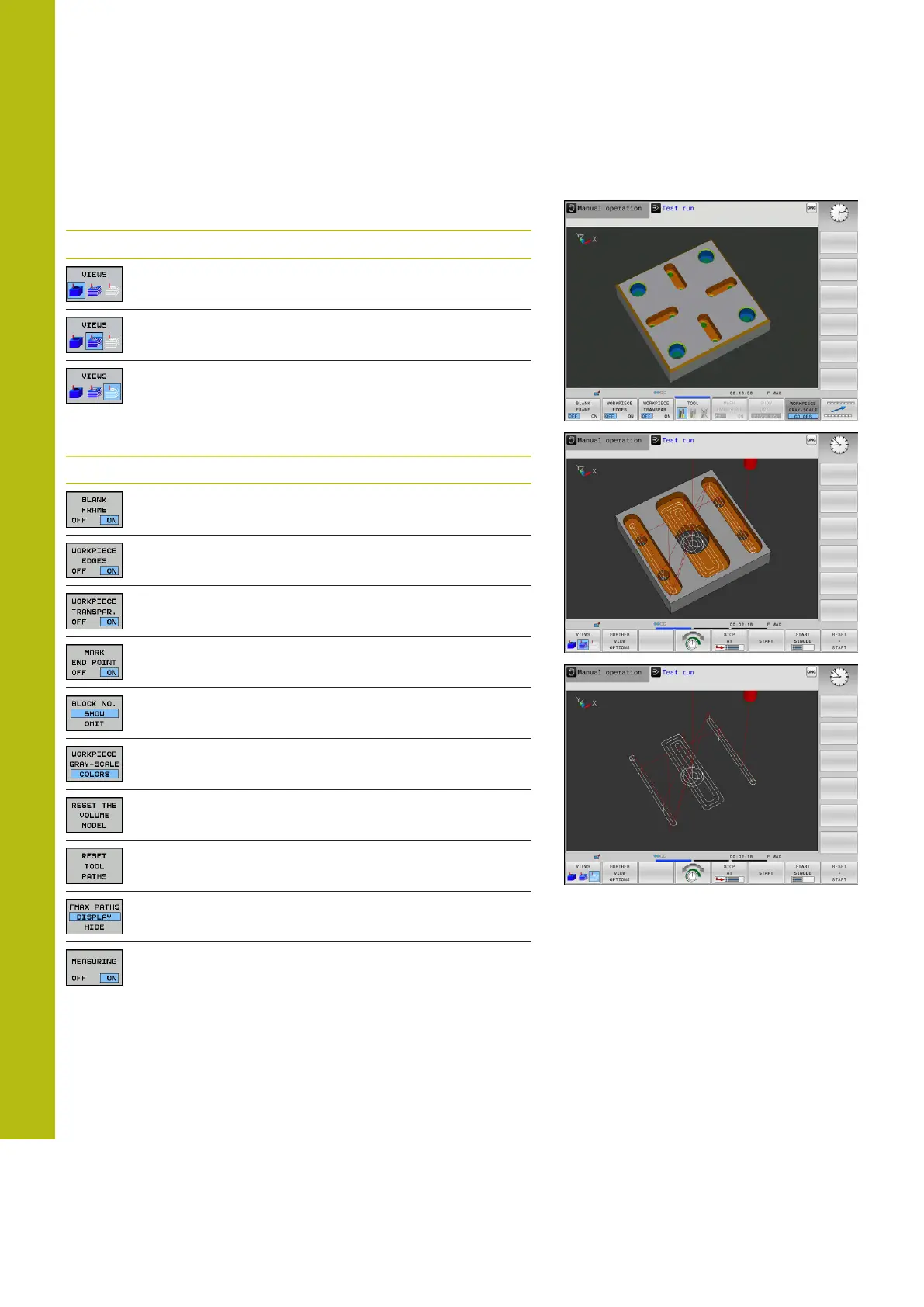

3-D view in the Test Run operating mode
The Test Run mode of operation also offers the following views:
Soft keys Function
Volume view
Volume view and tool paths
Tool paths
The Test Run operating mode also provides the following functions:
Soft keys Function
Show workpiece blank frame
Highlight workpiece edges on 3-D model
Show a transparent workpiece
Show the end points of the tool paths
Show the block numbers of the tool paths
Show the workpiece in color
Reset the volume model
Reset the tool paths
Display the rapid traverse movements
Activate measuring
If measuring is activated, the control shows
the corresponding coordinates in close proxim-
ity if you position the mouse cursor on the 3-D
graphics of the workpiece.
