Chapter 7 Keypad and Related Functions
7-2-4

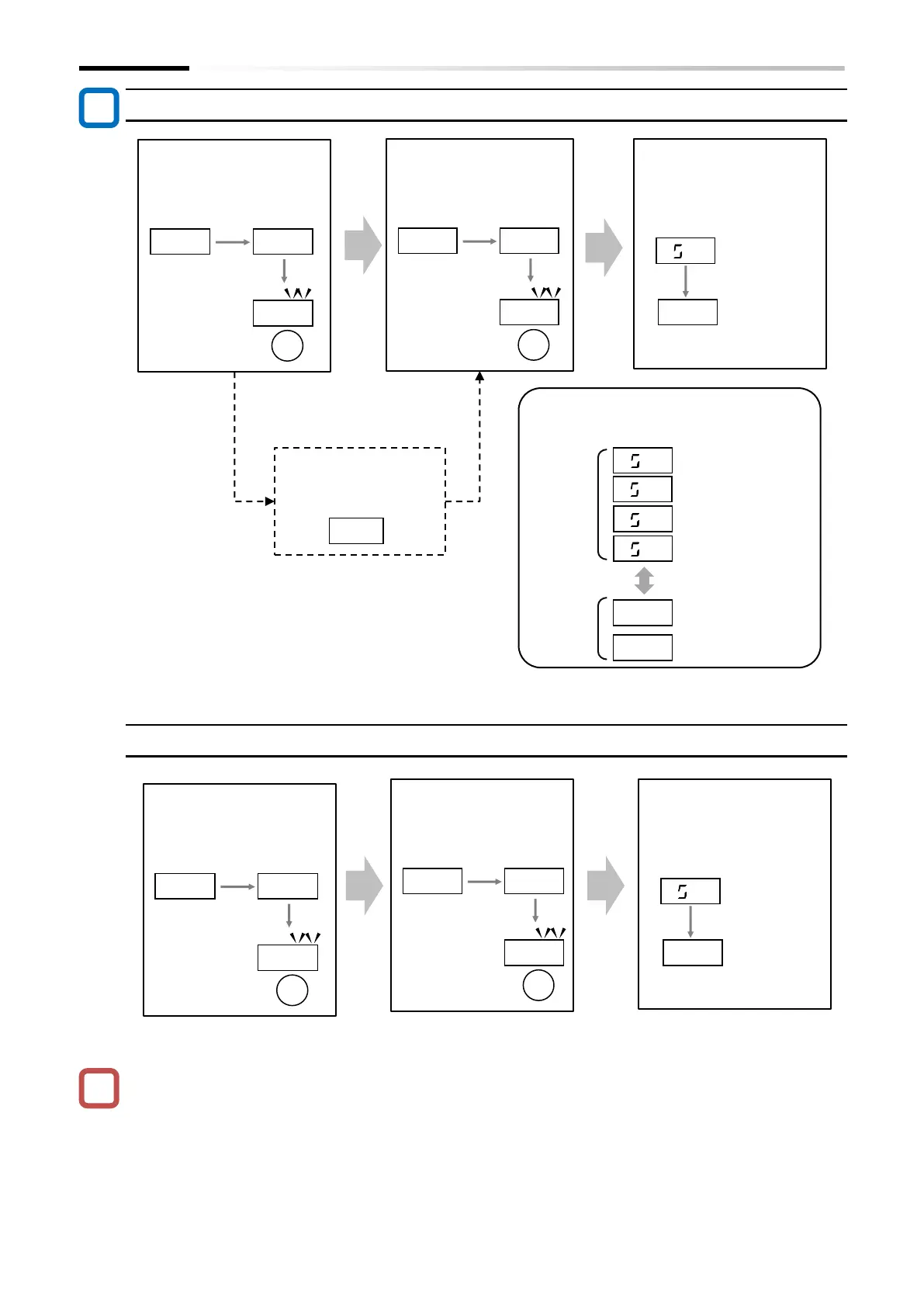

Procedure of initialization (trip history clear + data initialization + EzSQ program initialization)
Procedure to clear the trip history
To prevent accidental initialization, even if "Initialize mode selection [b084]" and "Execute
initialization and mode selection [b180]" are set once, it will return to 00 when the initialization
is completed or the power is turned on again. Set these parameters each time at initialization.
Even if the initialization settings are set, the initialization related functions ([b085] and [b094])
and "Load type selection [b049]" are not initialized.
Step 2: Set [b180] = 01
and press the
SET key.



SET
Step 3: Initialization is
completed when
the initialization
display disappears.

.
Initializing
Initialization
is completed
Step 1: Set [b084] = 04
and press the
SET key.



SET
Step 1.5:
Set [b084] to partially
initialize.

During initialization, the initialization pattern
and the load type display after initialization
blink alternately.


Initialization
pattern
Trip history initialization


Pattern 0 initialization
Pattern 1 initialization

Load type
after
initialization
Normal duty mode
Low duty mode
Blink alternately
Pattern 3 initialization

👉
👉
Step 2:
Set [b180] = 01 and
press the SET key.



SET
Step 3:
Initialization is
completed when the
display while clearing
the history disappears.

.
Clearing
Initialization
is completed
Step 1:
Set [b084] = 01 and
press the SET key.



SET
👉
👉
!
