Chapter 9 Inverter Functions
9-16-7

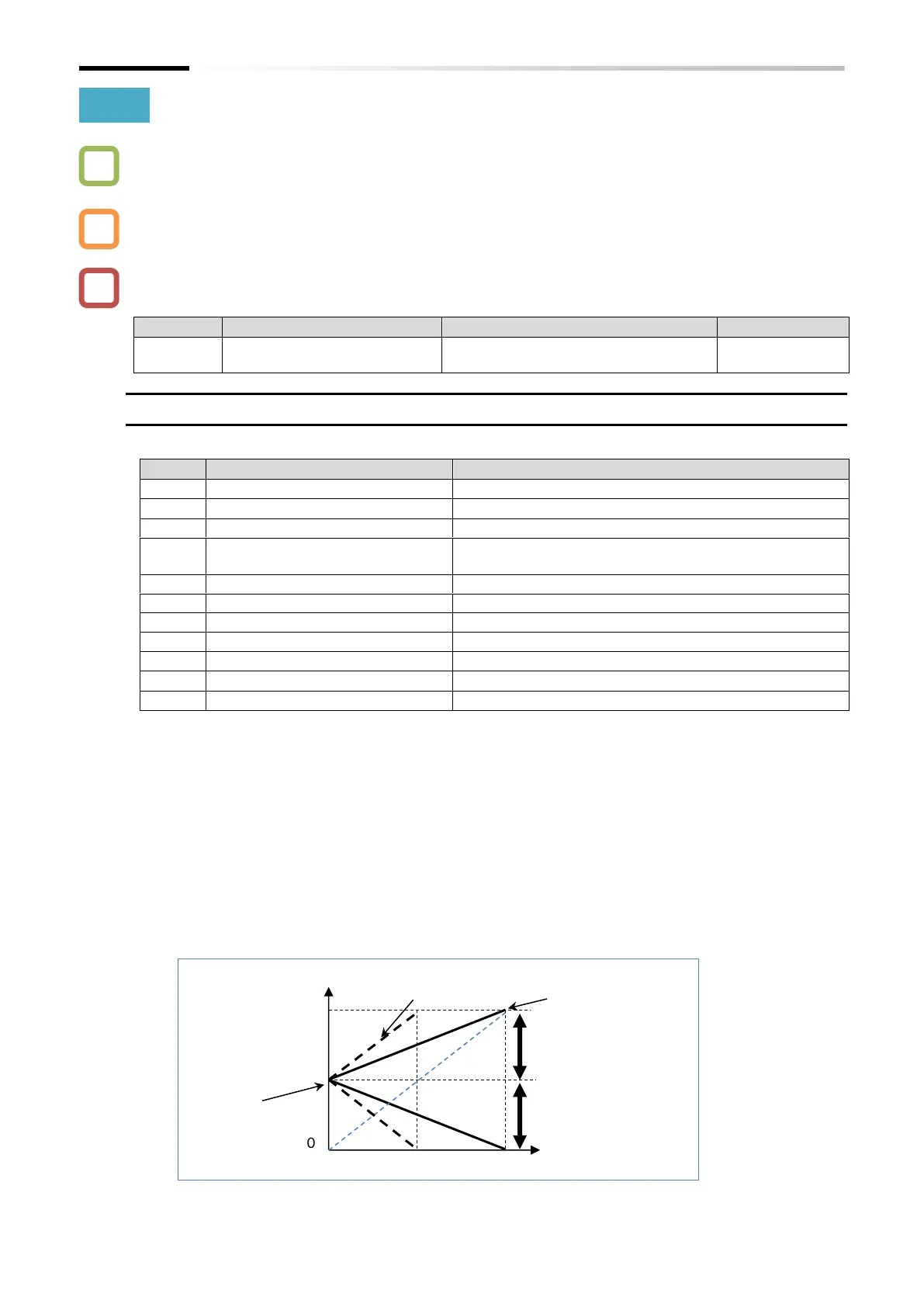

9.16.4 Outputting Monitor Data by Analog Output
How to output the inverter monitor data externally by analog output?
The [Ao1] terminal is an analog voltage output terminal from 0 to 10 VDC. Output frequency and
output current can be monitored.
Analog output may not be stable immediately after power-on or power interruption.
[Ao1] Output monitor selection
Selects data to be output from the
[Ao1] terminal.
List of [Ao1] terminal output data ([C028] set values)
The following lists the data that can be output from the [Ao1] terminal.
0 to the maximum frequency (Hz)
0 to 133 (%)
(e.g., Approx. 7.5 VDC at 200 V in 200 V class)
Electronic thermal load ratio
0 to the maximum frequency (Hz)
0 to 200 (°C) (0 output for temperatures below 0°C)
Output torque (signed)
*3*6
General-purpose analog YA(1)
*5
- (currently no supported options)
*1. "LAD frequency (07)" is the frequency commanded by the inverter and corresponds to "Output
frequency monitor [d001]". "Output frequency (00)" is a value that takes into account vector control
compensation and stabilization control such as sensorless vector control. "Output frequency" output
may appear unstable at low speeds during overload limit deceleration, etc. In this case, changing it to
"LAD frequency" results in a better stability.
*2. When "Speed feedback" is set for "Pulse input, target function selection [P003]", "Speed detection value
monitor [d008]" is outputted.
*3. Valid only when the control method is sensorless vector control.
*4. When "Frequency conversion gain [b086]" is set, a converted value is outputted for the digital output
frequency.
*5. For details on YA(1), refer to the "Easy-Sequence Function (EzSQ) Programming Guide (NT2021*X)".
*6. Specifications of output torque (signed) are as follows.
[Ao1] bias adjustment
[C109] = 50%
[Ao1] gain adjustment
[C106] = 100%
[Ao1] gain adjustment
[C106] = 200%
