Hitachi WJ C1 Series User Manual

Chapter 9 Inverter Functions
9-16-4

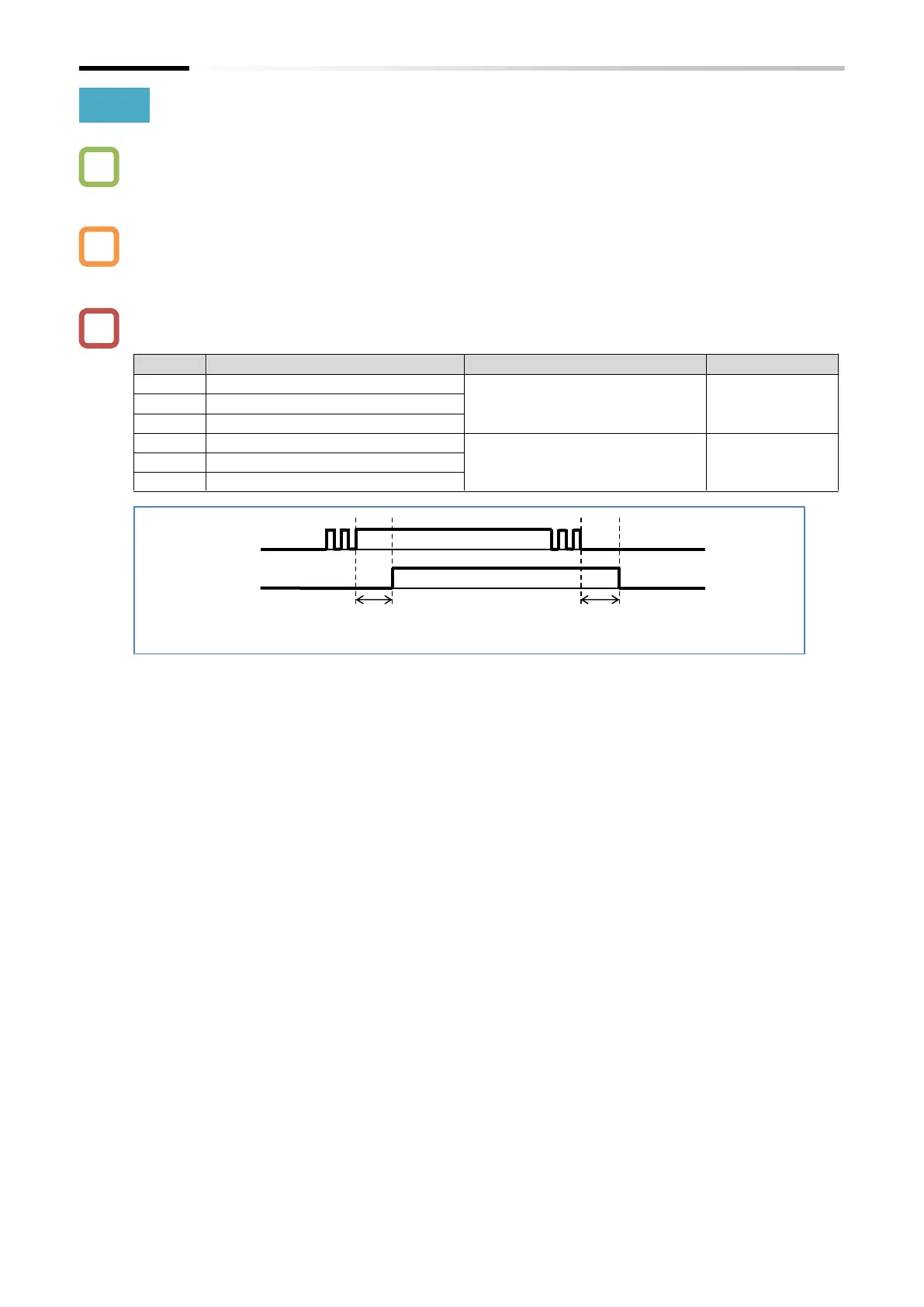

9.16.2 Delaying and Holding Output Signals
 How to slow down the output signal response?
 How to suppress signal chattering?
 On-delay time and off-delay time can be set for each output terminal.
 All output signals are immediately turned on or off when the condition is satisfied. Chattering
may occur depending on the selected signal. Use this function to hold/delay such signals.
Code
Item
Description
Data
[C130]
Output terminal [11] on-delay time
Sets the on-delay time for the
output terminals.
0.0 to 100.0 (s)
[C132]
Output terminal [12] on-delay time
[C140]
Output terminal [AL] on-delay time
[C131]
Output terminal [11] off-delay time
Sets the off-delay time for the
output terminals.
0.0 to 100.0 (s)
[C133]
Output terminal [12] off-delay time
[C141]
Output terminal [AL] off-delay time
Assigned function
behavior
Output terminal
behavior
Output terminal on-delay time
ON
OFF
OFF
ON
Output terminal off-delay time
Q
A
!
