Hitachi WJ C1 Series User Manual

Chapter 5 Wire Connection
5-2-6
5.2.3 Arrangement of Main Circuit Terminal Block

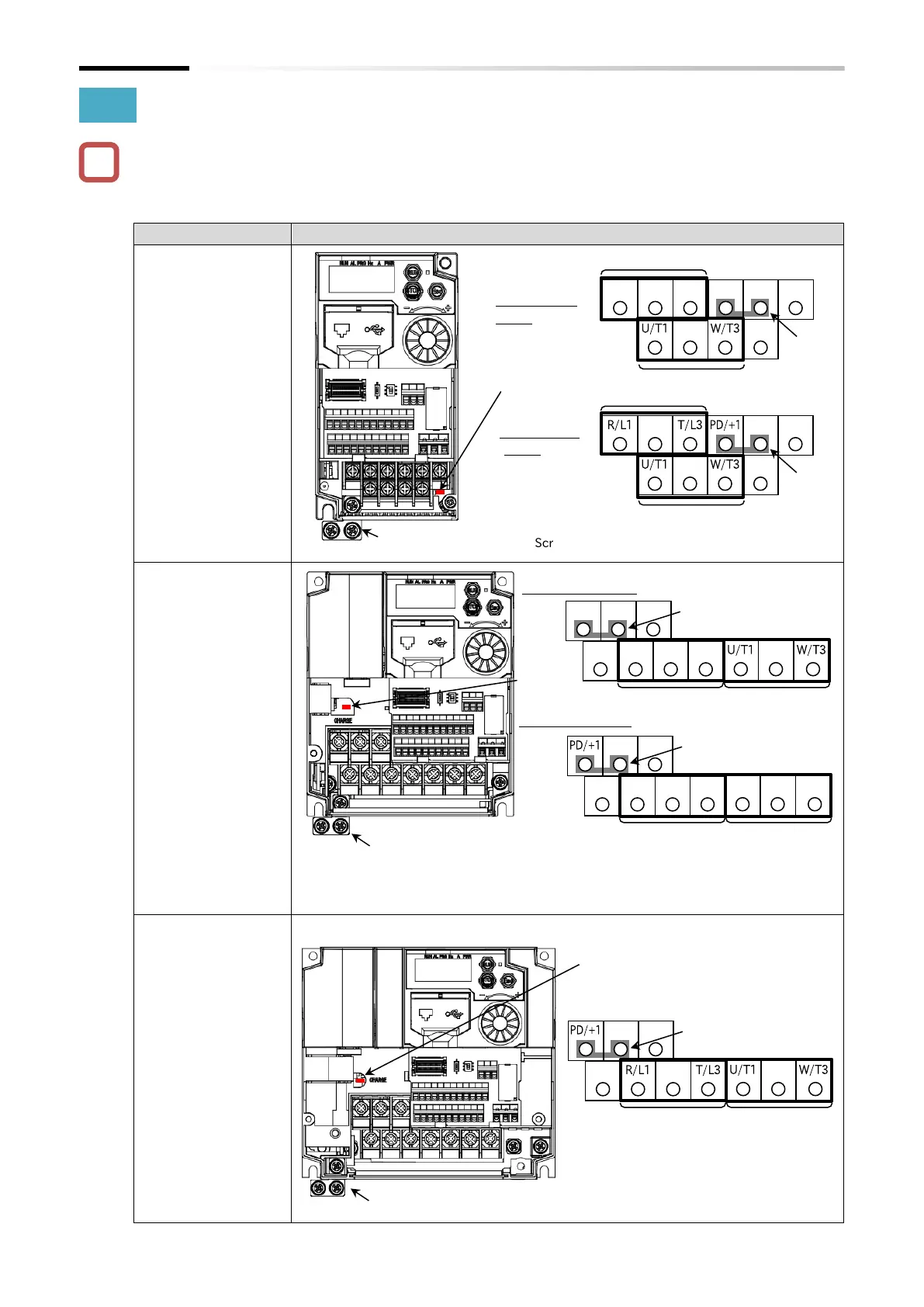

 The arrangement of the main circuit terminal of the inverter is shown in the figure below.
 The main circuit terminal arrangement is different from that of WJ200 series. When replacing,
pay attention to differences in the main circuit terminal arrangement before wiring.
Models
Terminal arrangement
Single-phase 200 V
0.1 to 0.4 kW
C1-001SF
C1-002SF
C1-004SF
Three-phase 200 V
0.1 to 0.75 kW
C1-001LF
C1-002LF
C1-004LF
C1-007LF
Single-phase 200 V
0.75 to 2.2 kW
C1-007SF
C1-015SF
C1-022SF
Three-phase 200 V
1.5 to 2.2 kW
C1-015LF
C1-022LF
Three-phase 400 V
0.4 to 3.0 kW
C1-004HF
C1-007HF
C1-015HF
C1-022HF
C1-030HF
Three-phase 200 V
3.7 kW
C1-037LF
Three-phase 400 V
4.0 kW
C1-040HF
Single-phase
model
Three-phase
model
Screw size: M3.5, Terminal block width: 7.3 mm
Grounding bar: M4×2
Charge lamp
Power supply input wire
Motor output wire
Short-
circuit
bar
L1
N
+1
+
RB
V/T2
―
Power supply input wire
Motor output wire
Short-
circuit
bar
S/L2
P/+
RB
V/T2
N/-
Screw size: M4, Terminal block width: 9.9 mm
Grounding bar: M4×2
Charge
lamp
Single-phase model
Power supply
input wire
Motor output
wire
Short-circuit bar
L1
N
+1
+
RB
V/T2
―
Three-phase model
Power supply
input wire
Motor output
wire
Short-circuit bar
R/L1
S/L2
T/L3
+
RB
U/T1
V/T2
W/T3
N/-
Screw size: M4, Terminal block width: 9.9 mm
Grounding bar: M4×2
Charge lamp
Power supply
input wire
Motor output
wire
Short-circuit bar
S/L2
+
RB
V/T2
N/-
!
