Hitachi WJ C1 Series User Manual

Chapter 5 Wire Connection
5-2-7
Models

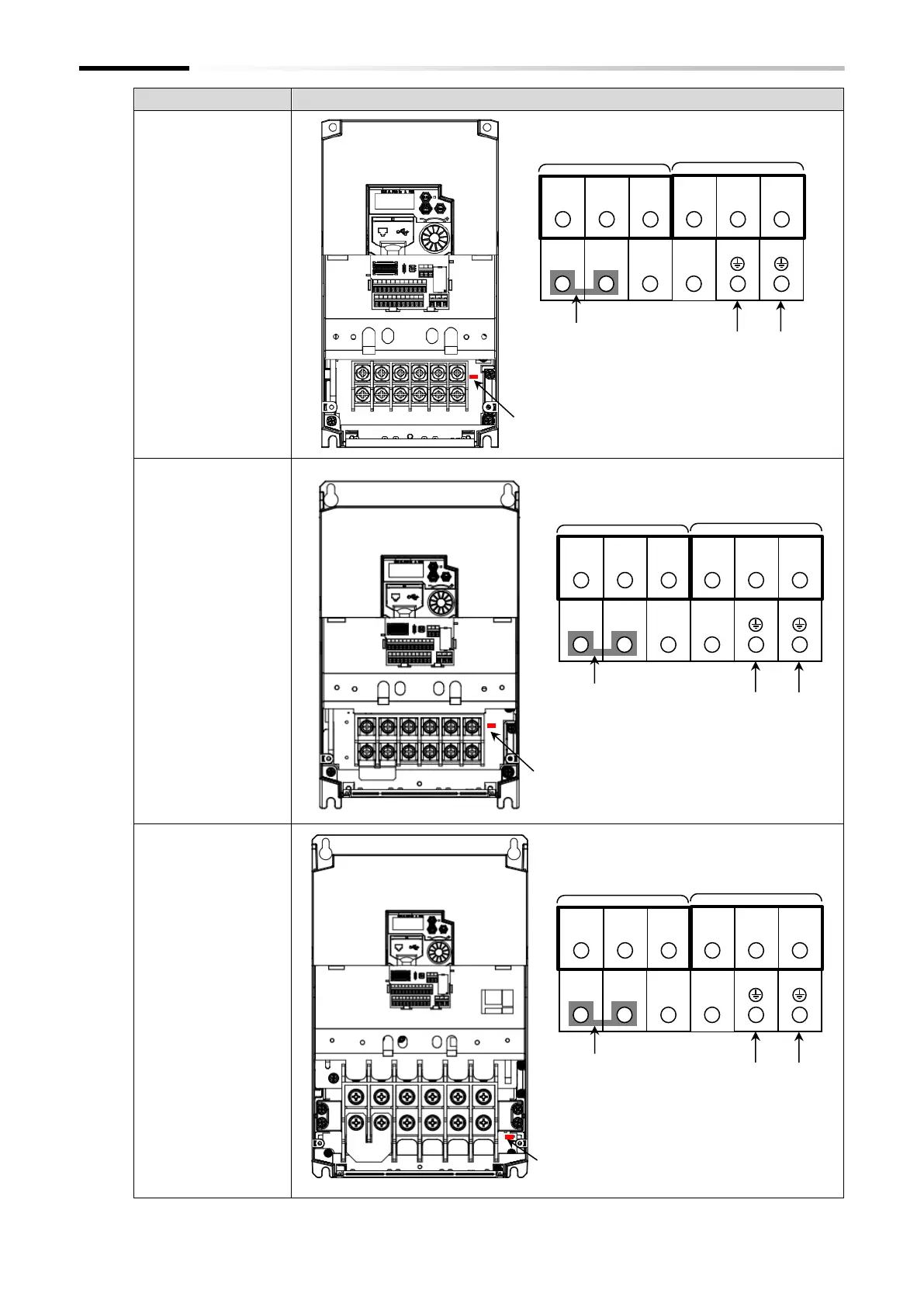

Terminal arrangement
Three-phase 200 V
5.5/7.5 kW
C1-055LF
C1-075LF
Three-phase 400 V
5.5/7.5 kW
C1-055HF
C1-075HF
Three-phase 200 V
11 kW
C1-110LF
Three-phase 400 V
11/15 kW
C1-110HF
C1-150HF
Three-phase 200 V
15 kW
C1-150LF
Screw size: M5, Terminal block width: 13 mm
Charge lamp
Ground
terminal
Short-circuit bar
Power supply
input wire
Motor output wire
W/T3
V/T2
U/T1
P/+
PD/+1
T/L3
S/L2
R/L1
N/-
RB
G
G
Screw size: M6,
Terminal block width: 16.5 mm
Charge lamp
Ground terminal
Short-circuit bar
Power supply
input wire
Motor output wire
W/T3
V/T2
U/T1
P/+
PD/+1
T/L3
S/L2
R/L1
N/-
RB
G
G
Screw size: M8,
Terminal block width: 23 mm
Charge lamp
Ground terminal
Short-circuit bar
Power supply
input wire
Motor output wire
W/T3
V/T2
U/T1
P/+
PD/+1
T/L3
S/L2
R/L1
N/-
RB
G
G
