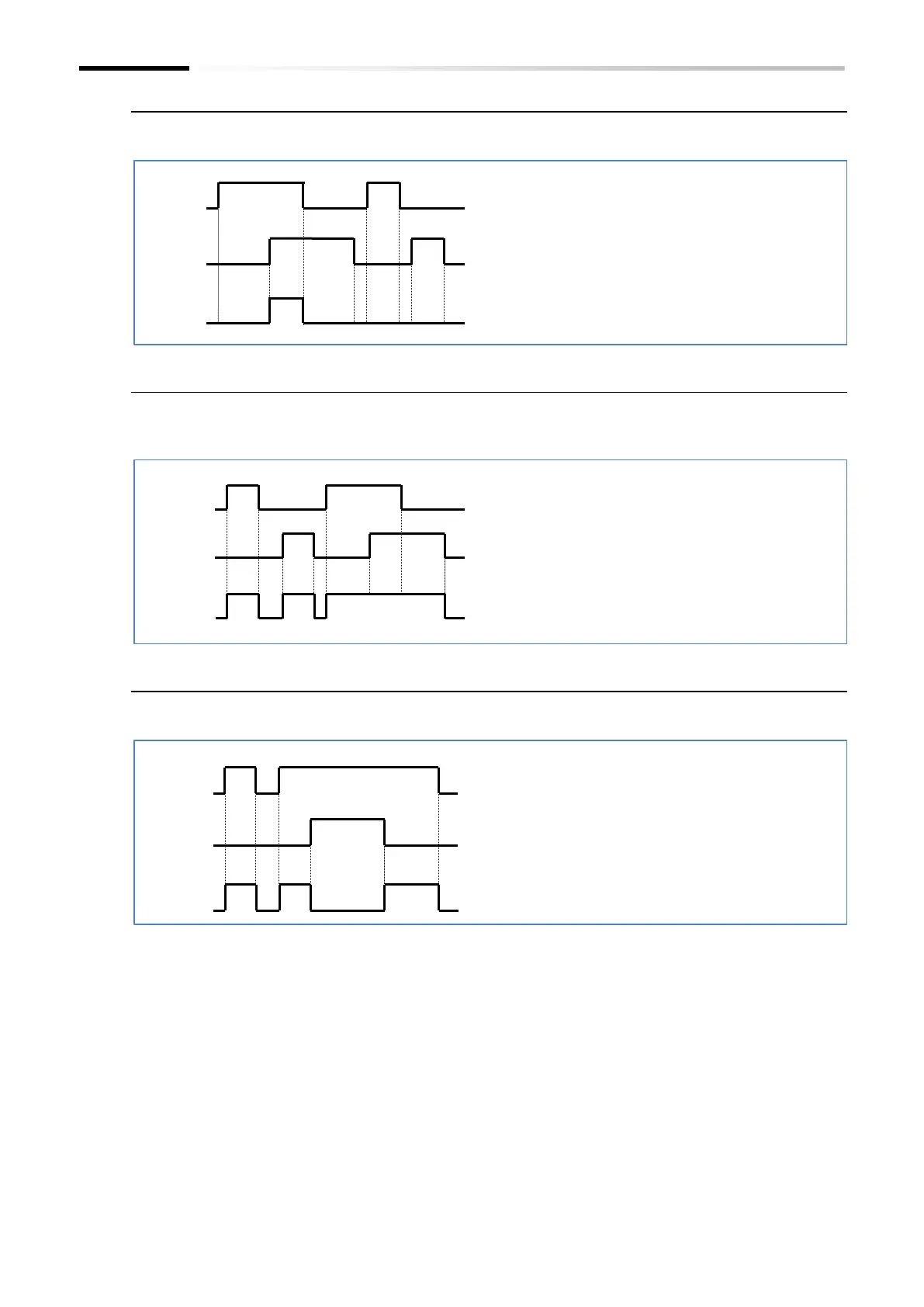

■ (Example 1) Logical conjunction (AND) operation example
 Set the "signal that turns on when the output current drops while the output frequency is above
the set value" to [LOG1] and output it from the output terminal [11].
■ (Example 2) Logical disjunction (OR) operation example
 Set the "signal that turns on when the output current is outside the range while either overload
or electronic thermal overload state is occurring" to [LOG2] and output it from the output
terminal [11].
■ (Example 3) Exclusive disjunction (XOR) operation example
 Set the "signal when the output current is within the specified range" to [LOG3] and output it
from the output terminal [12].
[FA2]
[LOC]
[LOG1]
Output
ON
ON
ON
ON
ON
(Setting example)
- Output terminal [11] function [C021]
= Logical operation result 1 [LOG1] (33)
- LOG1 operand-1 selection [C142]
= Above set frequency [FA2] (02)
- LOG1 operand-2 selection [C143]
= Low current signal [LOC] (43)
- LOG1 logical calculation selection [C144] = AND (00)
(Setting example)
- Output terminal [11] function [C021]
= Logical operation result 2 [LOG2] (34)
- LOG2 operand-1 selection [C145]
= Overload warning notice [OL] (03)
- LOG2 operand-2 selection [C146]
= Electronic thermal alarm (Motor) [THM] (13)
- LOG2 logical calculation selection [C147] = OR (01)
[OL]
Output
[THM]
Output
[LOG2]
Output
ON
ON
ON
ON
ON
ON
ON
(Setting example)
- Output terminal [12] function [C022]
= Logical operation result 3 [LOG3] (35)
- LOG3 operand-1 selection [C148]
= Overload warning notice [OL] (03)
- LOG3 operand-2 selection [C149]
= Overload warning notice 2 [OL2] (26)
- LOG3 logical calculation selection [C150] = XOR (02)
[OL]
Output
[OL2]
Output
[LOG3]
Output
ON
ON
ON
ON
ON
ON
