Hitachi WJ C1 Series User Manual

Chapter 5 Wire Connection
5-1-2

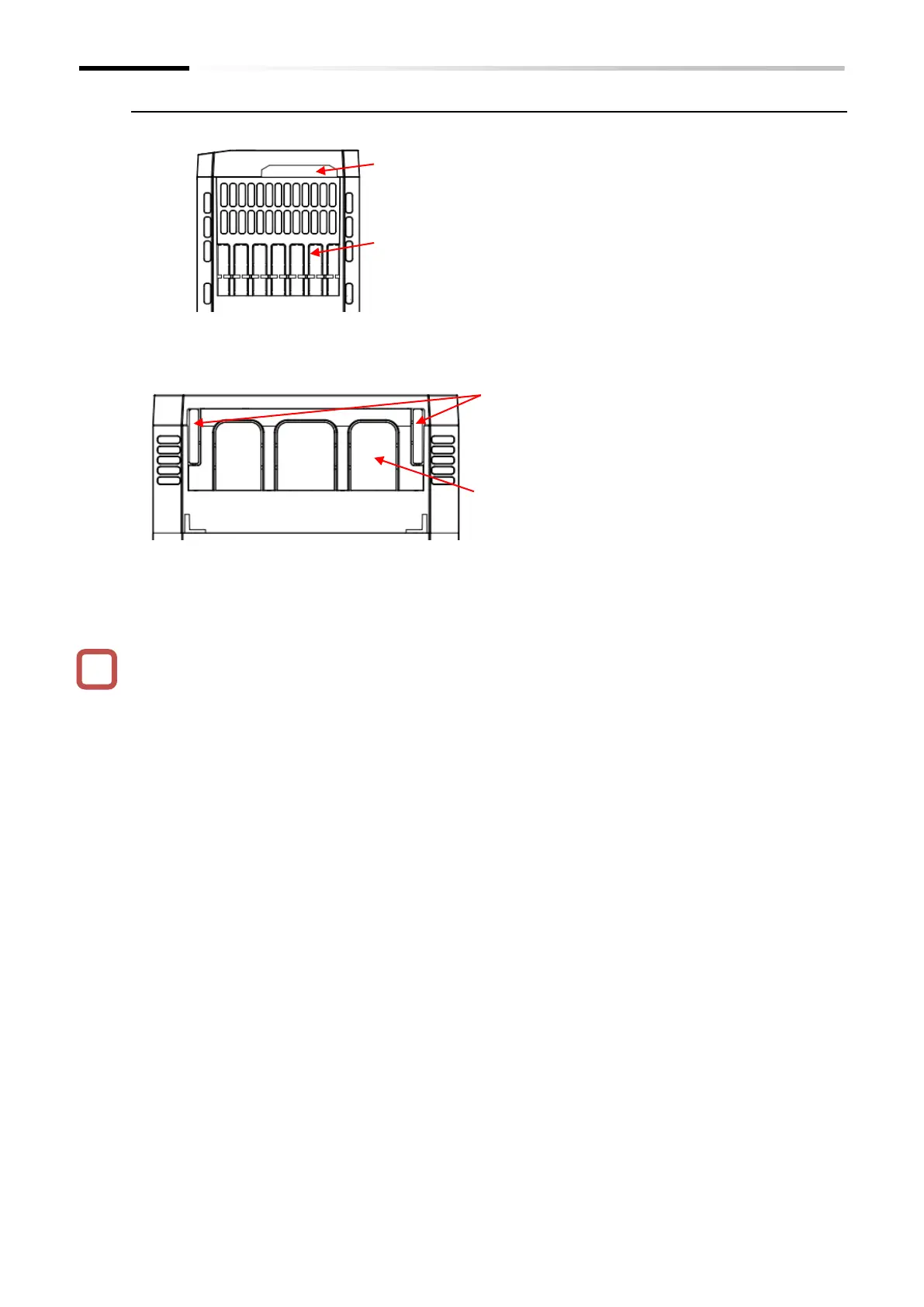

■ How to use the backing plate
 C1-001SF to C1-022SF, C1-001LF to C1-075LF, C1-004HF to C1-075HF
 C1-110LF/C1-150LF, C1-0110HF/C1-150HF
 Cut the connection points between the unnecessary part and the backing plate using a nipper
or a cutter, to cut off the unnecessary part for wiring. Be careful not to get injured.
 When high voltage is applied to the relay output terminals, etc., pull out the wires separately
from the low voltage wires such as the control circuit wires.
Main circuit wiring
 Cut the connection points between the unnecessary part and the
backing plate using a nipper or a cutter, to cut off the
unnecessary part for wiring.
Control circuit wiring
 Pull out from the terminal block cover.
Main circuit wiring
 Cut the connection points between the
unnecessary part and the backing plate using a
nipper or a cutter, to cut off the unnecessary part
for wiring.
Control circuit wiring
 Cut the left and right unnecessary parts of the
backing plate with a nipper or a cutter, to cut off
the unnecessary part for wiring.
!
