Hitachi WJ C1 Series User Manual

Chapter 5 Wire Connection
5-4-3
Arrangement of control circuit terminal block

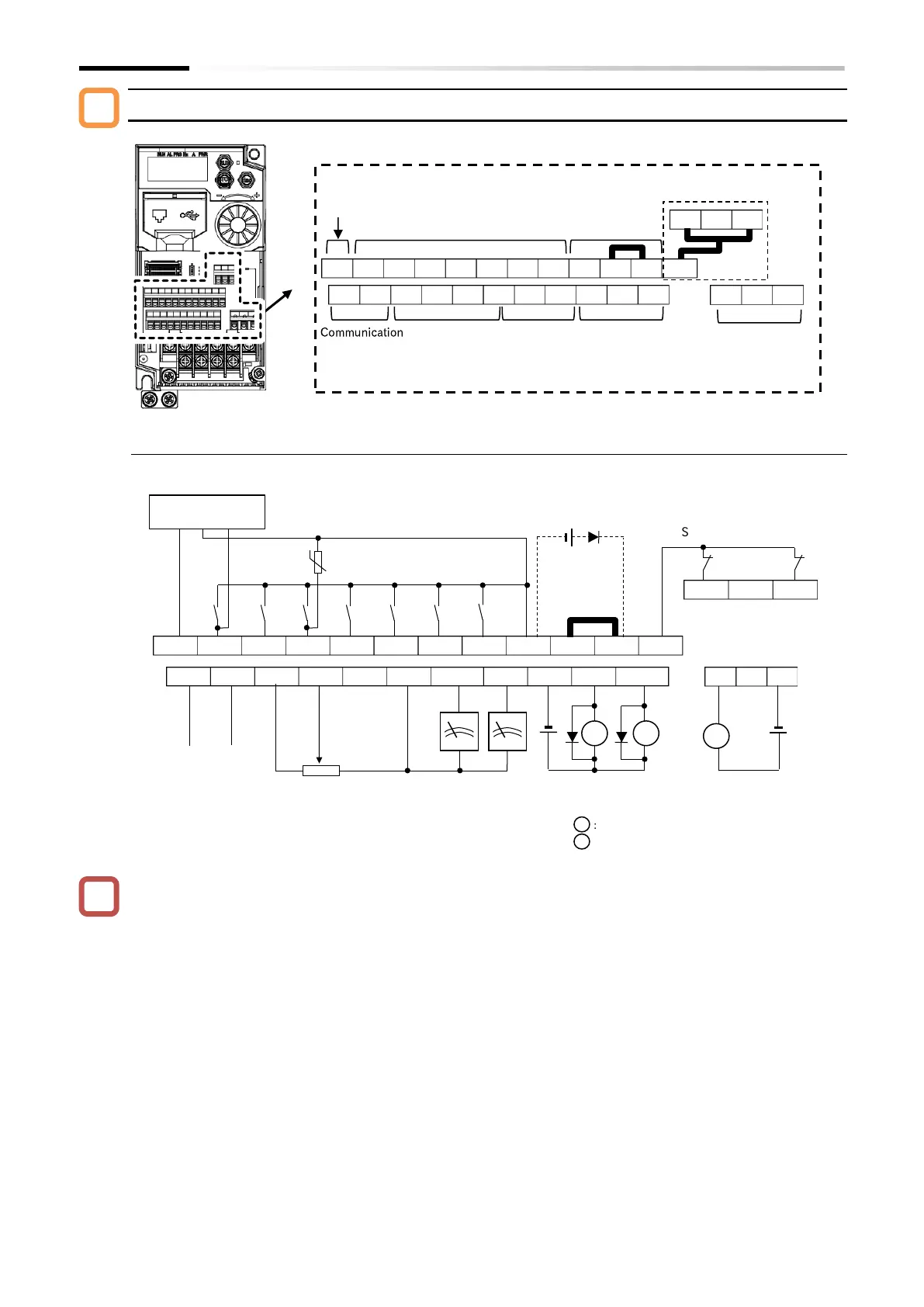

■ Wiring example of control circuit terminal
 "Thermistor input [PTC]" can only be assigned to input terminal [5]. Select on "Input terminal 5
function selection [C005]". For thermistor input, the common is [L] terminal regardless of the
sink/source logic.
 "Pulse input B [PLB]" can only be assigned to input terminal [7]. Select on "Input terminal 7
function selection [C007]".
 Input terminal [8] has a fixed function as the "Pulse input A [PLA]" input terminal. Function
cannot be changed.
 Output terminal [11] switches to the "STO state monitor output [EDM]" by turning on the switch
on the board.
8
7
6
5
4
3
2
1
L
PLC
P24
P24S
SP
SN
H
Ai1
Ai2
L
Ao2
Ao1
CM2
12
11
ST2
CMS
ST1
AL2
AL1
AL0
Intelligent input
Logic power supply
and common
RS485
Analog input
and power
supply
Analog/Pulse
output
Intelligent
output
Relay output
Safety function input and power supply
Pulse input
8/PLA
7/PLB
6
5/PTC
4
3
2
1
L
PLC
P24
P24S
SP
SN
H
Ai1
Ai2
L
Ao2
Ao1
CM2
12
11/EDM
ST2
CMS
ST1
AL2
AL1
AL0
Short-
circuit
wire
(Sink
Safety function STO input
Pulse
output
Modbus-RTU
(RS485
communication)
Variable resistor for
frequency input source
(1 kΩ to 2 kΩ/1 W or
more recommended)
A, B phase pulse
input
Common of A and B phase pulse
input and thermistor input is [L]
terminal.
Thermistor
X
RY
RY
: Device such as lamps, relays, and PLCs
: Relay
RY
X
Analog
output
Open collector output
Relay output
External 24 VDC power
supply for control circuit
(Reverse current prevention
diode is mandatory)
!
A
