Hitachi WJ C1 Series User Manual

Chapter 5 Wire Connection
5-4-8

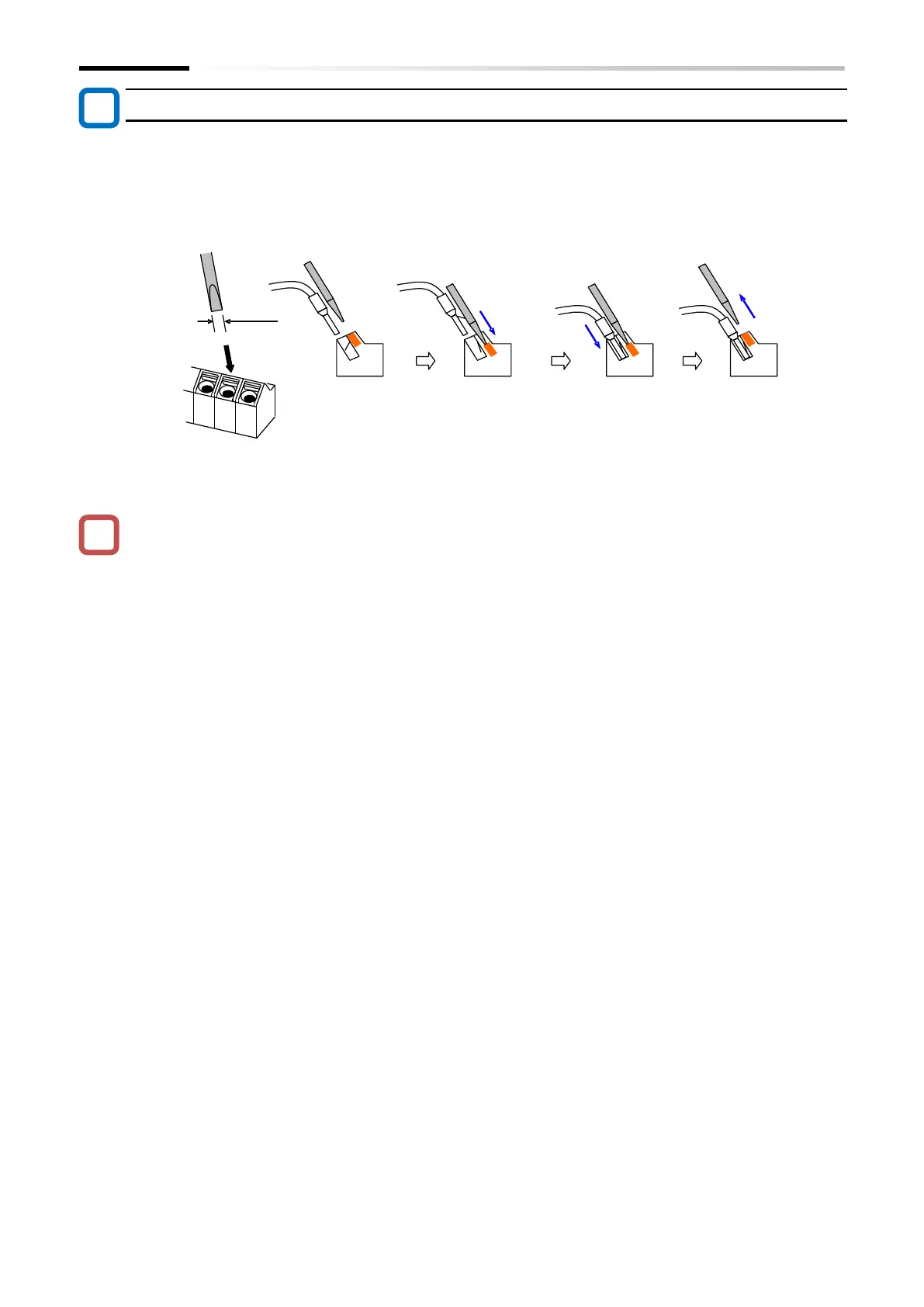

Method of wiring/detaching wires
(1)Push the orange part on the control terminal block with a slotted screwdriver (with a wide of 2.5
mm or less). (Insertion hole will open)
(2)Plug in the wire or ferrule terminal to the wire insertion hole (round hole) while pressing the
orange part with a slotted screwdriver.
(3)The wire is connected to the circuit when release the screwdriver.
 When pulling out the wire, press the orange part with a slotted screwdriver.
Push the orange
part with a slotted
screwdriver.
Insert the wire.
The wire is
connected to the
circuit when
release the slotted
screwdriver.
2.5
mm
▼
!
