Hiwin D2 Series - Page 109

D2 Series Servo Drive User Manual Drive Configuration
HIWIN MIKROSYSTEM CORP. 5-11
MD07UE01-2005

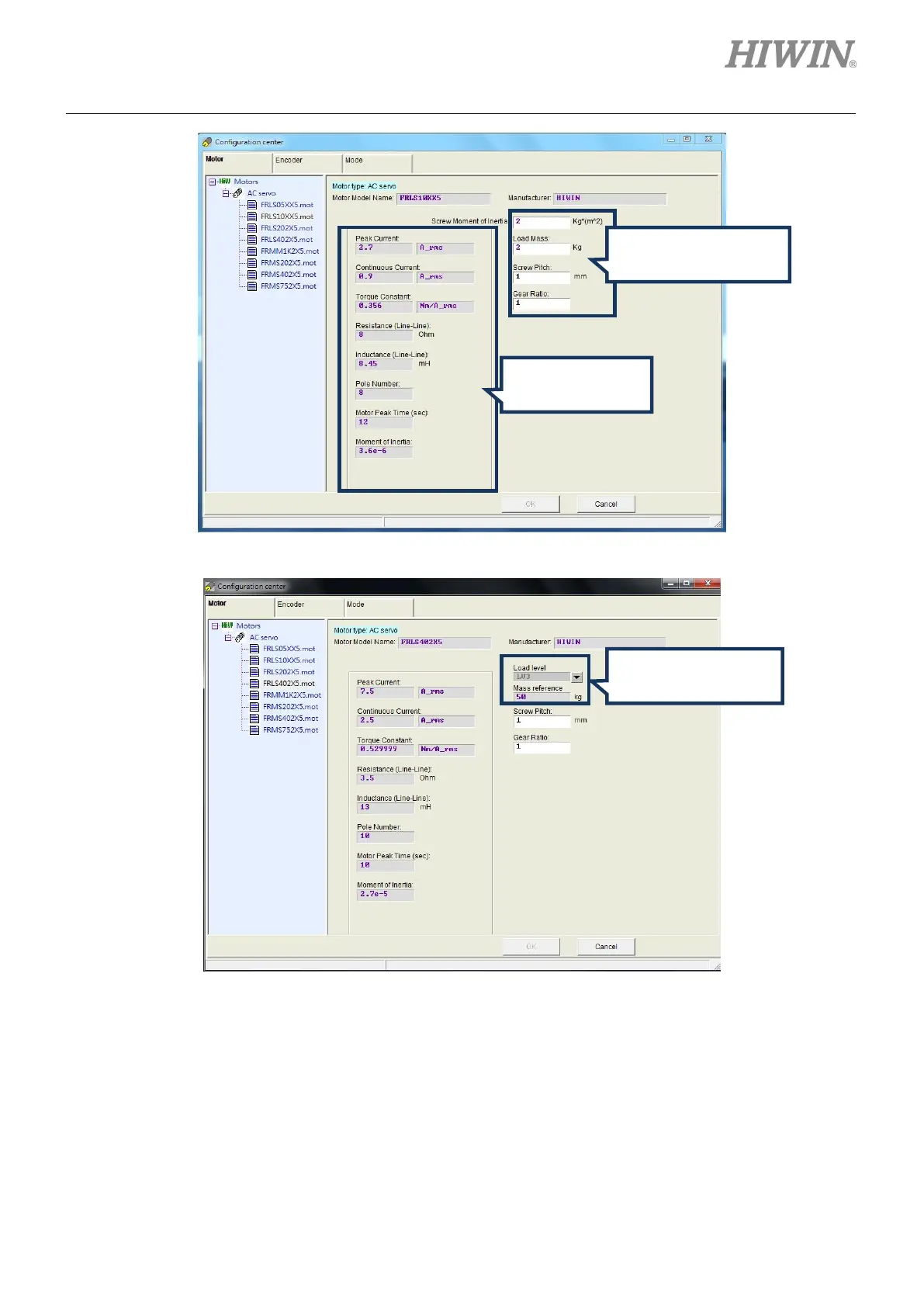

Figure5.2.1.1 Motor configuration page for Lightening 0.177 or less
Figure5.2.1.2 Motor configuration page for Lightening 0.178 or above
Operation parameters
setting area
Motor parameter
setting area
ZeroTune parameters
setting area
