7.7.4 Stand-alone mode
In the stand-alone mode, the drive will execute the internal path planning to drive the motor, referring to
Section 3.1.4. The stand-alone mode configuration includes the mode selection. After all parameters are
set, refer to Section 7.5.1 to save parameters to flash.
(1) Mode selection

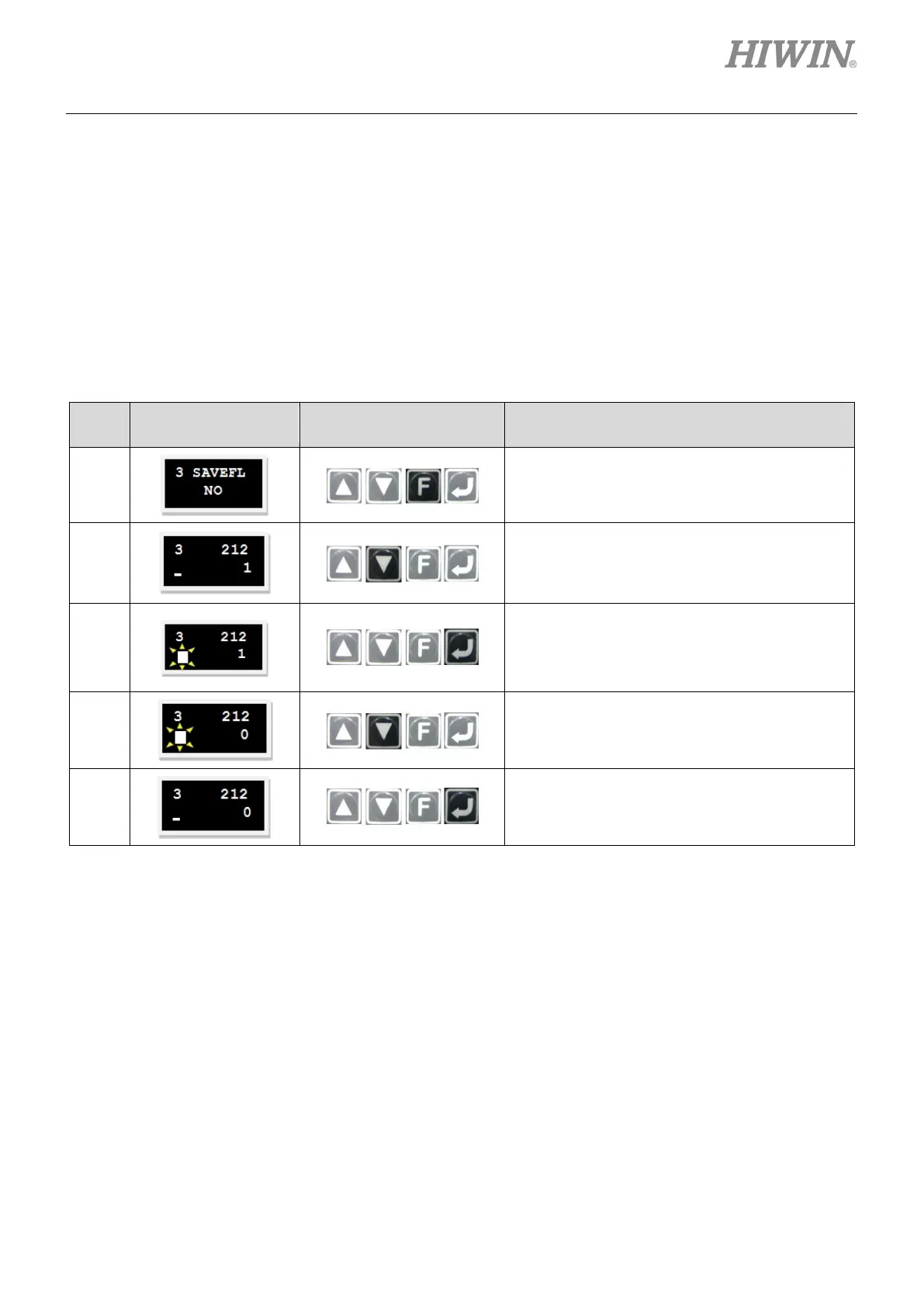

Use following steps to select the stand-alone mode via LCD.
Table7.7.4.1
Step
LCD Display After
Operation
Used Keys Operation
1
Press the F key to change the LCD screen to the
parameter change page.
2
Press and hold the Down key to go to LCD No.
212 page, i.e. the setting page of operation
mode.
(Note. This example is to change it from
the position mode to the stand-alone mode.)
3
Press the Enter key to enter the edit mode.
4
Press the Down key once to set this parameter to
1, i.e. the stand-alone mode.
5
Press the Enter key to complete the setting.
