Hiwin D2 Series User Manual

D2 Series Servo Drive User Manual Drive Configuration
HIWIN MIKROSYSTEM CORP. 5-71
MD07UE01-2005

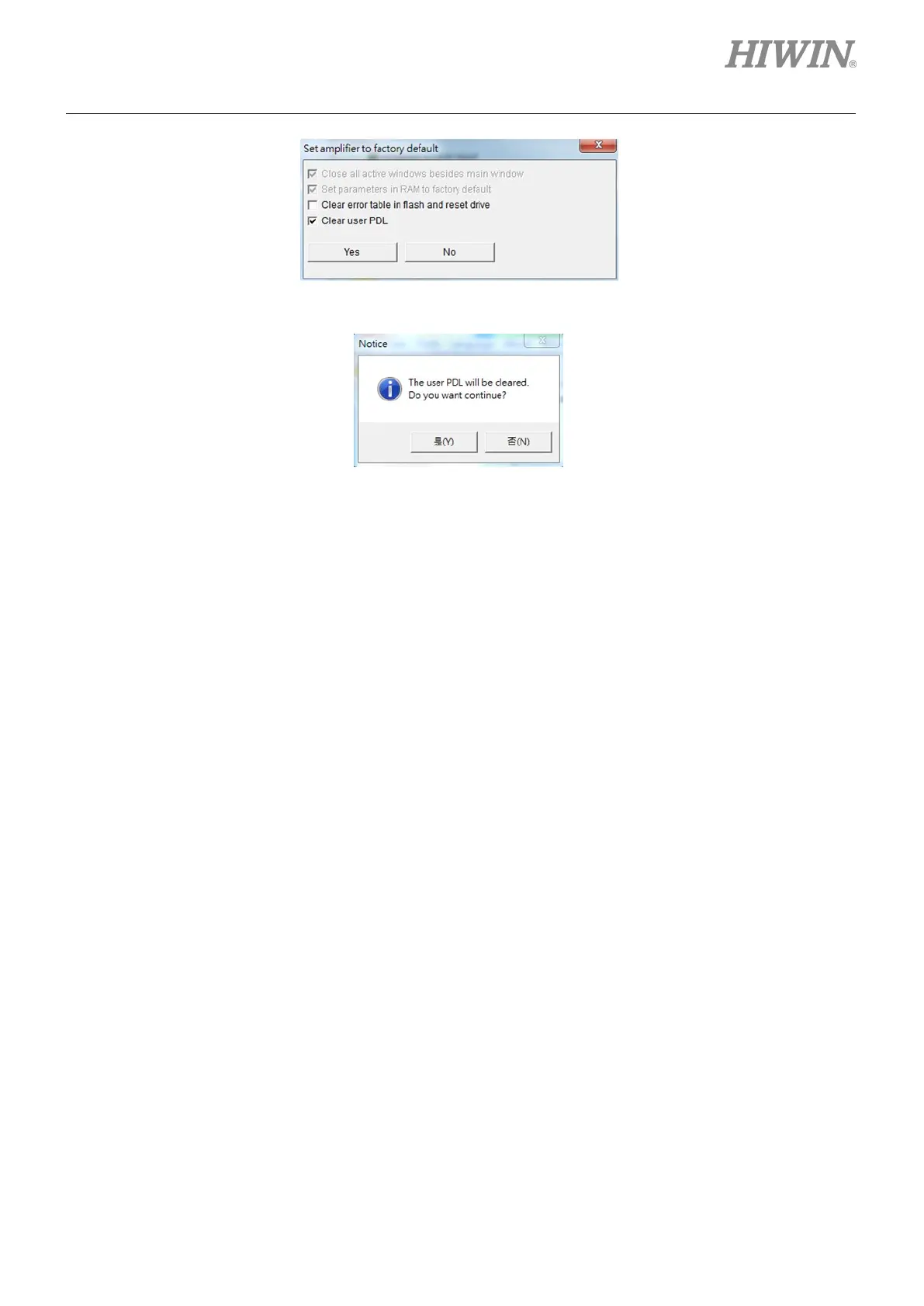

Figure5.8.2.4
Figure5.8.2.5
5.9 Parameter setting examples via HMI
5.9.1 Position mode
In the position mode, the drive will move the corresponding distance when it receives the pulse command,
referring to Section 3.1.1.
The position mode configuration includes: the mode selection, pulse format selection, electronic gear ratio
setting, and smooth factor setting. After all parameters are set, refer to Section 5.8.1 to save parameters
to flash.
